Home >> Subaru >> 2005 >> Forester XS L.L. Bean Edition >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition (H4SO) >> Spark Plug >> Removal >> LH Side

LH Side

  1. Remove the battery.
  2. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself.)

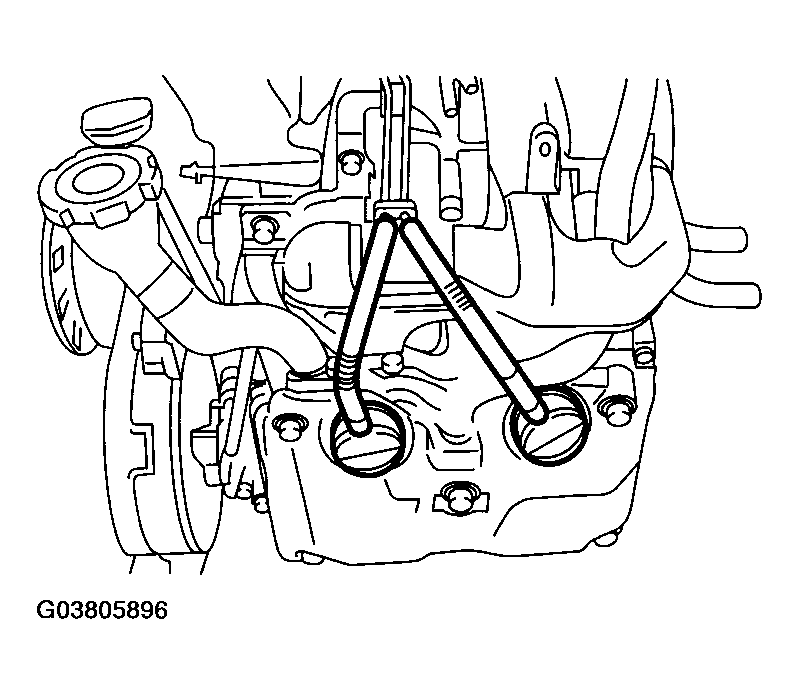

    Fig 1: Removing Spark Plug Cords By Pulling Boot
    G03805896Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the spark plug with a spark plug socket.
    Fig 2: Removing Spark Plug With Spark Plug Socket
    G03805897Courtesy of SUBARU OF AMERICA, INC.
