VDC Hydraulic Control Module (VDCH/M)

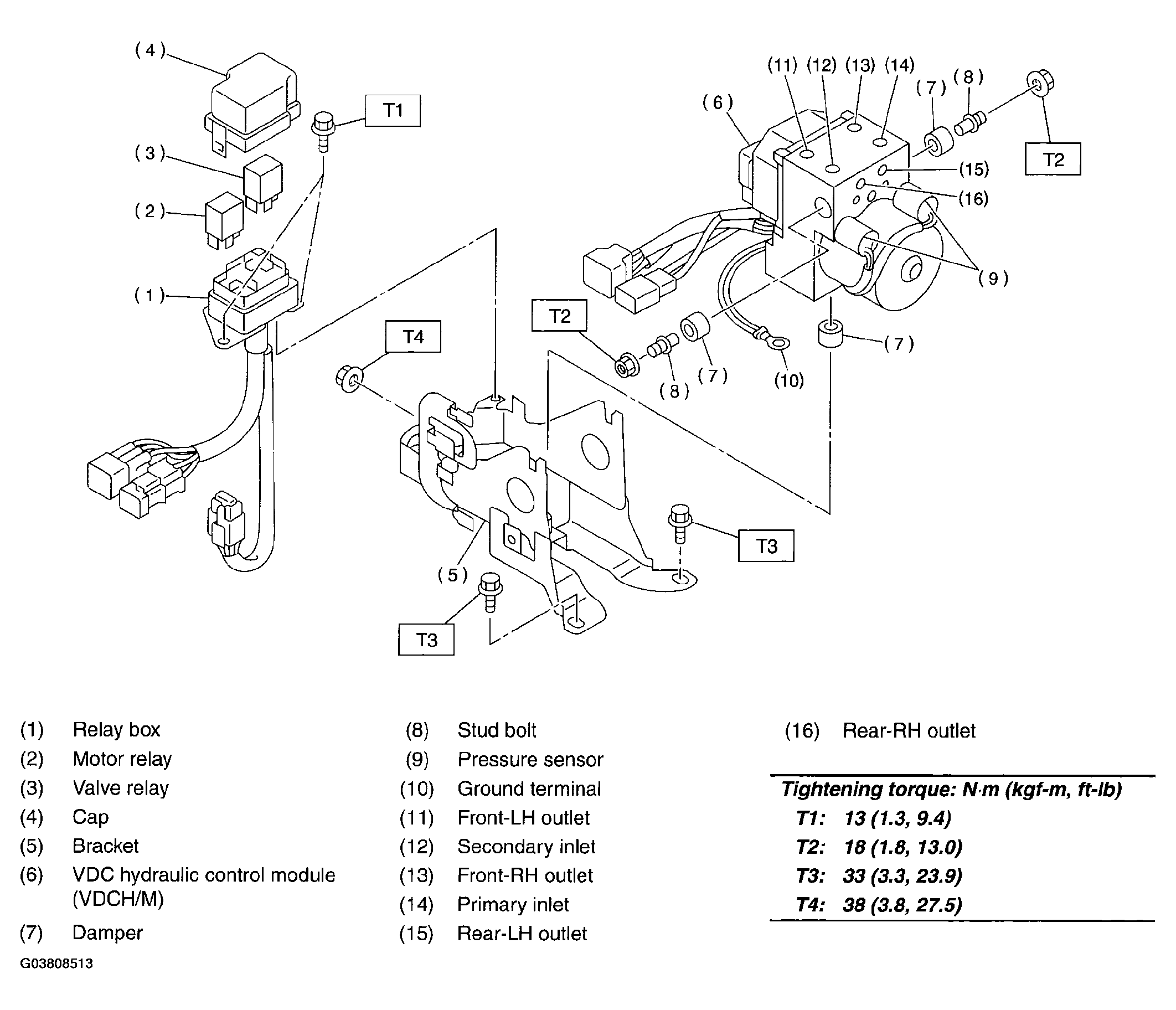

Fig 1: Identifying Components Of VDC Hydraulic Control Module (VDCH/M)
G03808513Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Do not disassemble except valve relay and motor relay.
