Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.

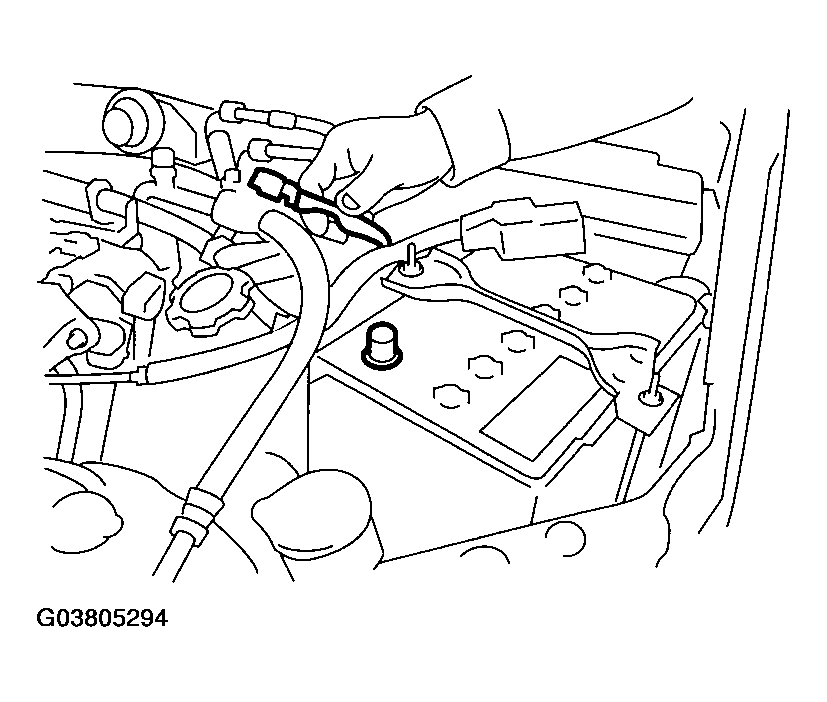

    Fig 1: Disconnecting Ground Cable From Battery
    G03805294Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Disconnect the connector from fuel pump relay.
    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G03805295Courtesy of SUBARU OF AMERICA, INC.
