Front Oxygen (A/F) Sensor: Removal

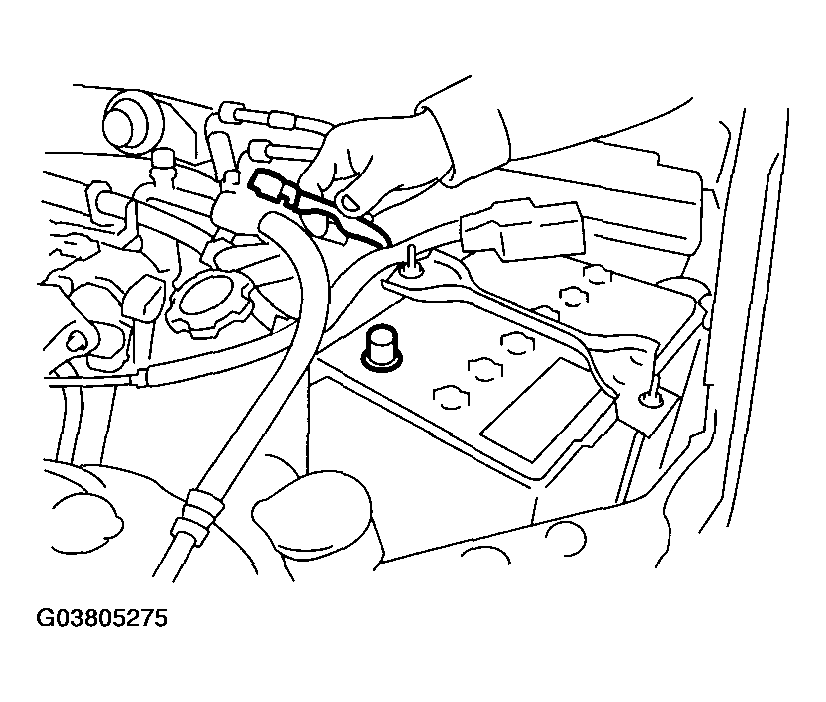

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

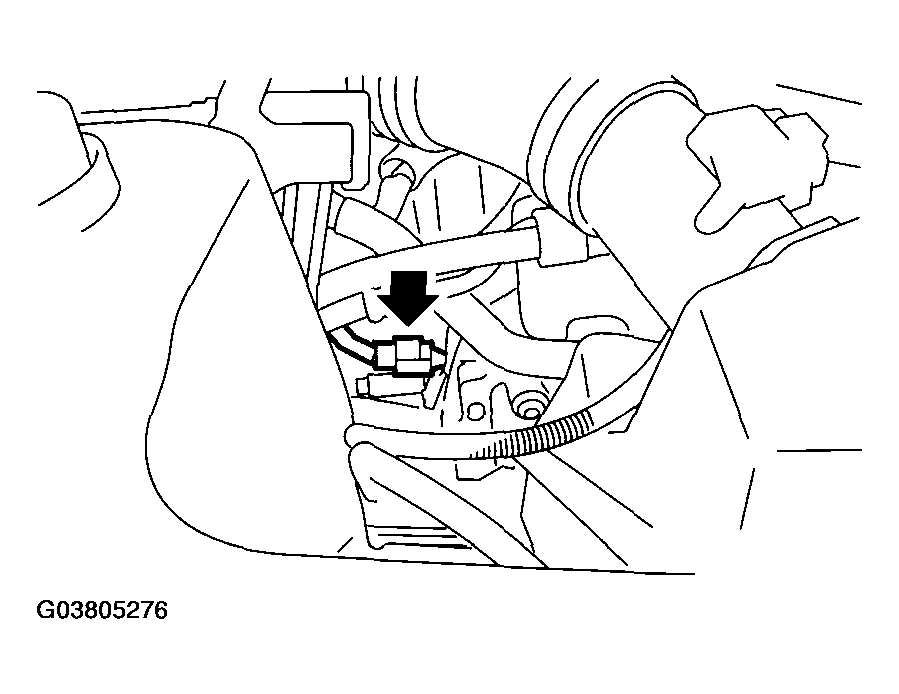

Remove the clip holding harness, and then disconnect the front oxygen (A/F) sensor connector.

Fig 2: Removing Clip Holding Harness
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Apply spray type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
Remove the front oxygen (A/F) sensor.
CAUTION: When removing the oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

Fig 3: Removing Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
