LH Side

Install in the reverse order of removal.

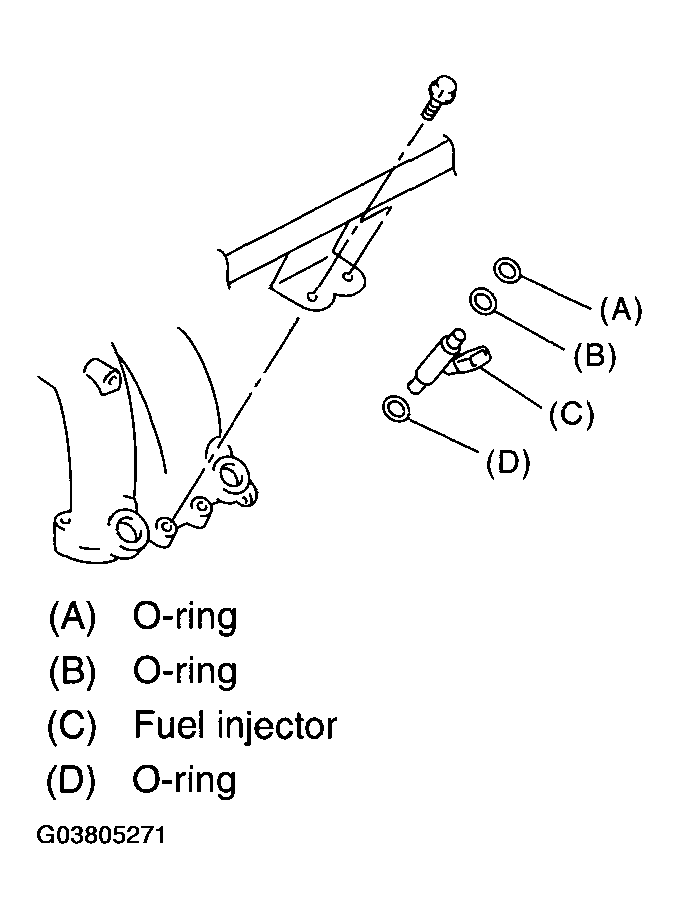

Fig 1: Identifying O-Rings (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

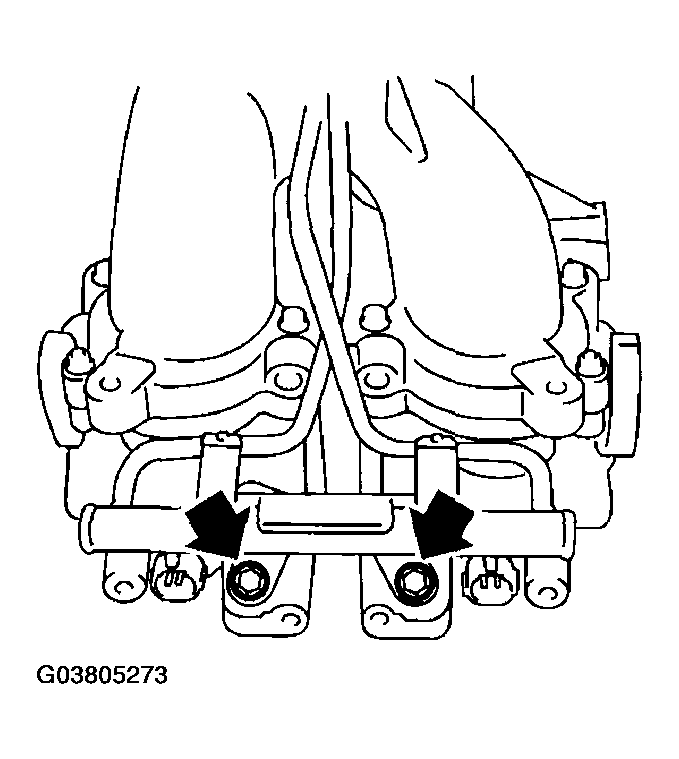

Fig 2: Installing Bolts (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

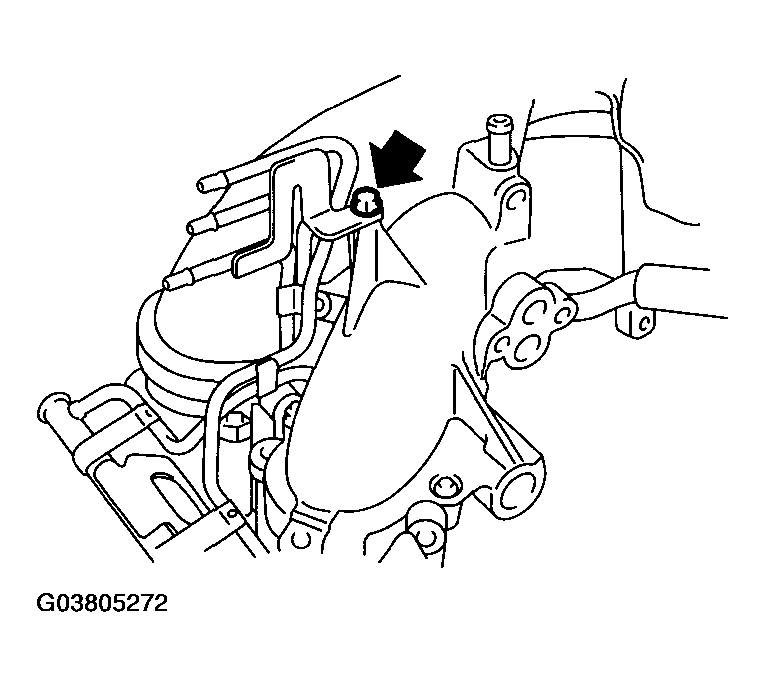

Fig 3: Installing Bolts Which Hold Fuel Injector Pipe Onto Intake Manifold (LH Side)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

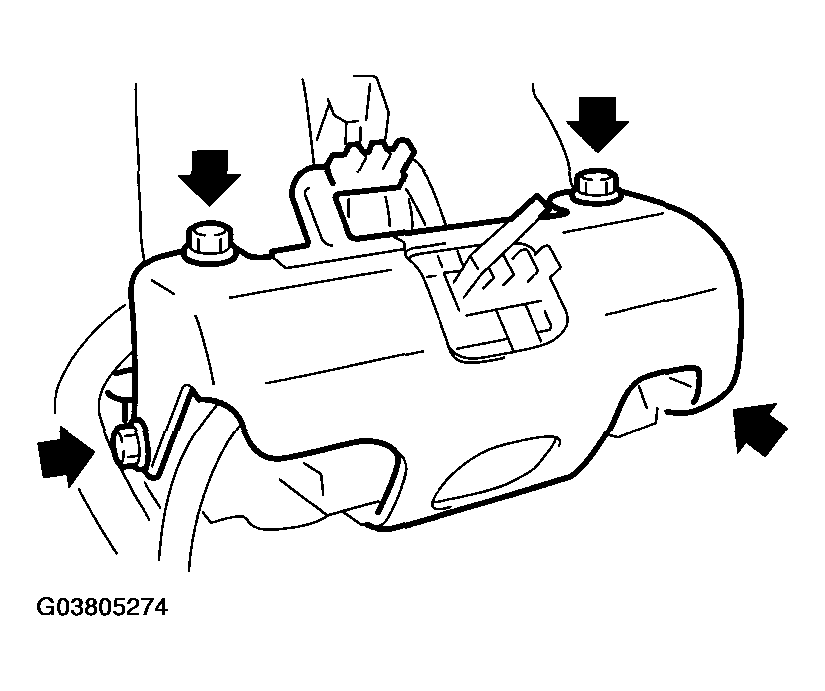

Fig 4: Installing Fuel Pipe Protector LH

Courtesy of SUBARU OF AMERICA, INC.
