Starting System & Charging System (H4SO): General Description: Components: Starter

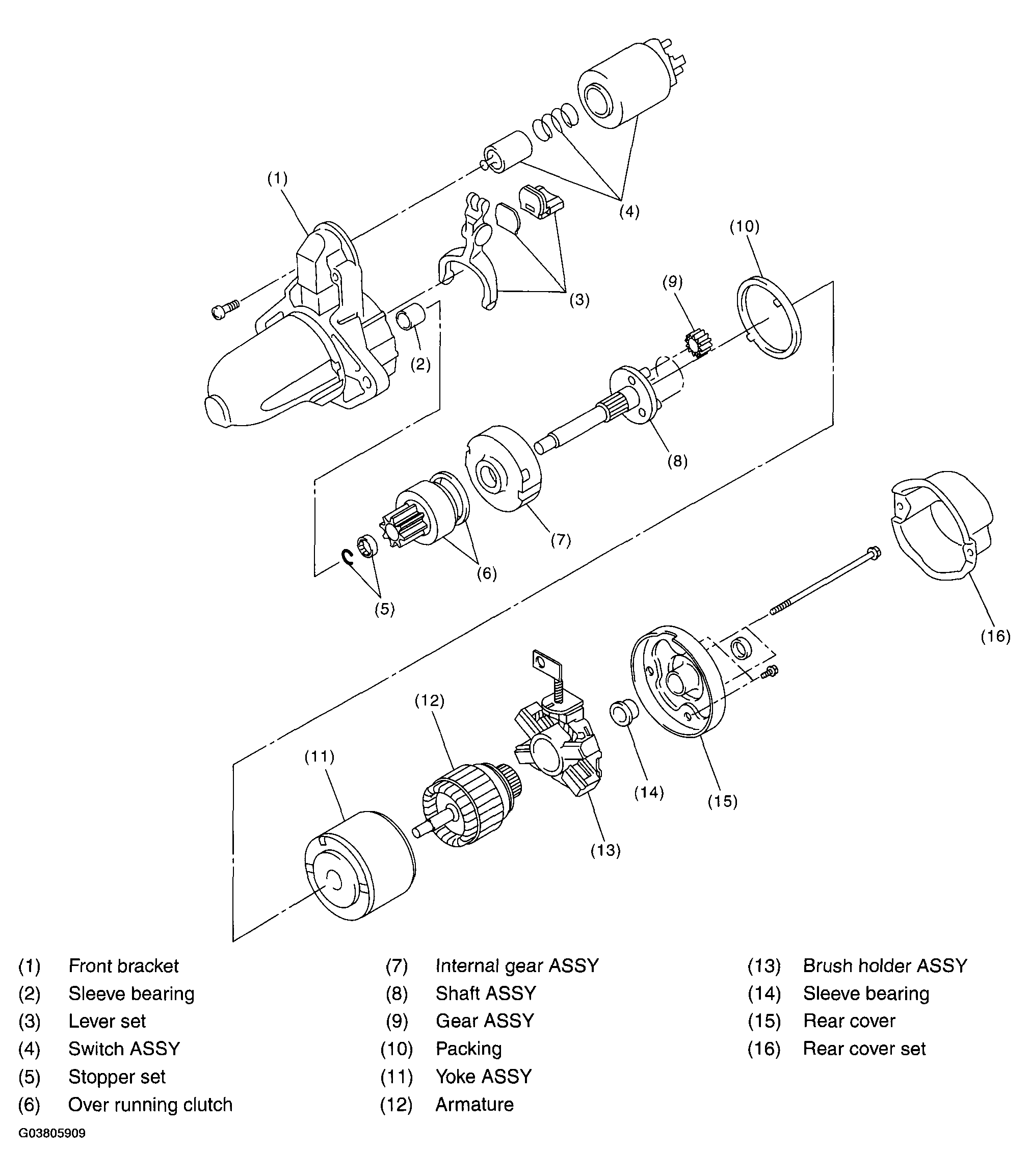

Fig 1: Exploded View Of Starter Assembly Components

G03805909

Courtesy of SUBARU OF AMERICA, INC.
