ABS Control Module and Hydraulic Control Unit (ABS CM & H/U): Installation

Install the ABS CM & H/U bracket.
Tightening torque:

33 N.m (3.4 kgf-m, 24.6 ft-lb)

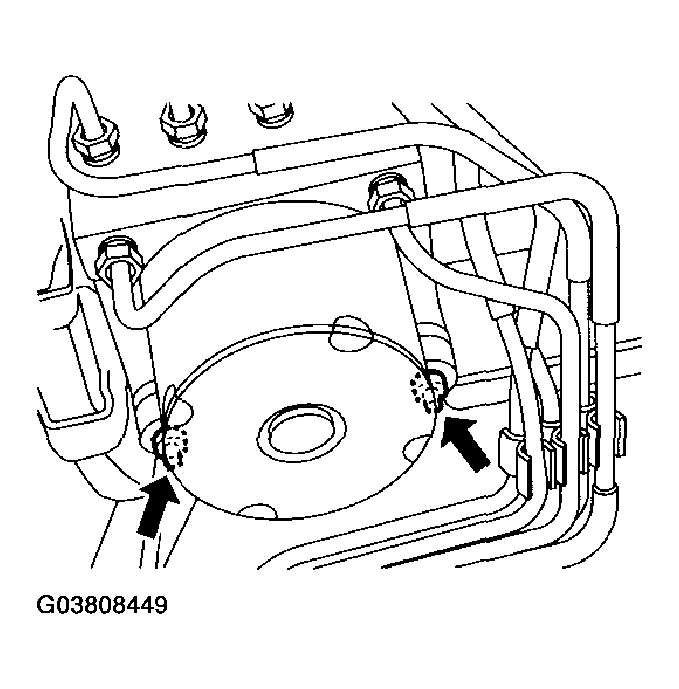

Install the ABS CM & H/U aligning the groove of damper on ABS CM & H/U side with the pawl of bracket.
NOTE: Check the identification mark of ABS CM & H/U.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 1: Connecting Brake Pipes To Their Correct ABS CM & H/U Connections
Courtesy of SUBARU OF AMERICA, INC.
Connect the brake pipes to their correct ABS CM & H/U connections.
Tightening torque:

15 N.m (1.5 kgf-m, 10.8 ft-lb)
Using the cable clip, secure the ABS CM & H/U harness to bracket.
Connect the connector to ABS CM & H/U.
NOTE:
- Be sure to remove all foreign matter from inside of the connector before connecting.
- Ensure that the ABS CM & H/U connector is securely locked.
Connect the ground cable to ABS CM & H/U, and then apply anti-corrosive wax.
Install the air cleaner case.
< Ref. to INSTALLATION , Air Cleaner Case. >
Bleed air from the brake system.
