Using Windshield Glass Knife

Remove the cowl panel. < Ref. to REMOVAL , Cowl Panel. >
Remove the glass molding.
Tape the body side of the circumference of windshield glass for protection.
Apply sufficient amount of soapy water to the adhesive layer.
Use a putty knife to produce a slit so that the windshield glass knife can be inserted easily.
Insert the windshield knife into the adhesive layer.
While holding the knife edge and windshield glass edge at a right angle, move the windshield knife in parallel to the windshield glass edge along face and edge of windshield glass to cut the adhesive layer.
NOTE:
- Do not twist the windshield knife.
- Cutting of adhesive layer shall be started with wider gap between windshield glass and body.
- Because the locating pins are bonded to corners of glass, use piano wire to cut the pin.
Remove the front pillar trim, and then disconnect the connector of harness. (Model with wiper deicer)

Fig 1: Removing Front Pillar Trim, And Disconnecting Connector Of Harness
Courtesy of SUBARU OF AMERICA, INC.

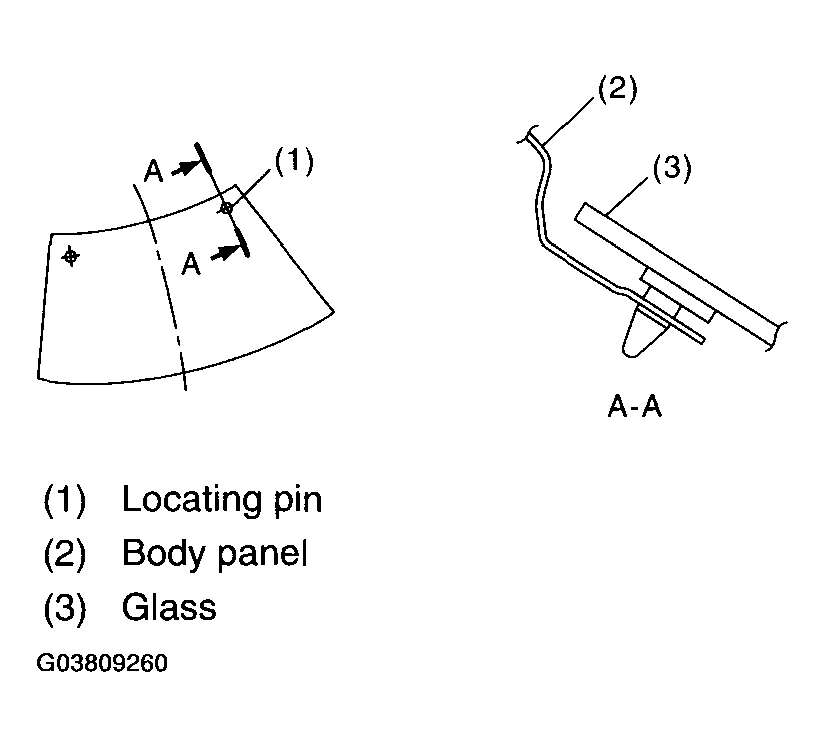

Fig 2: Identifying Locating Pin, Body Panel And Glass
Courtesy of SUBARU OF AMERICA, INC.
