Using Piano Wire

  1. Remove the cowl panel. < Ref. to REMOVAL , Cowl Panel. >
  2. Remove the upper front molding.
  3. Tape the body side of the circumference of windshield glass for protection.
  4. Make a hole in the adhesive layer using a drill or knife.
  5. Pass the piano wire through the hole, and attach securely both the wire ends to pieces of wood.

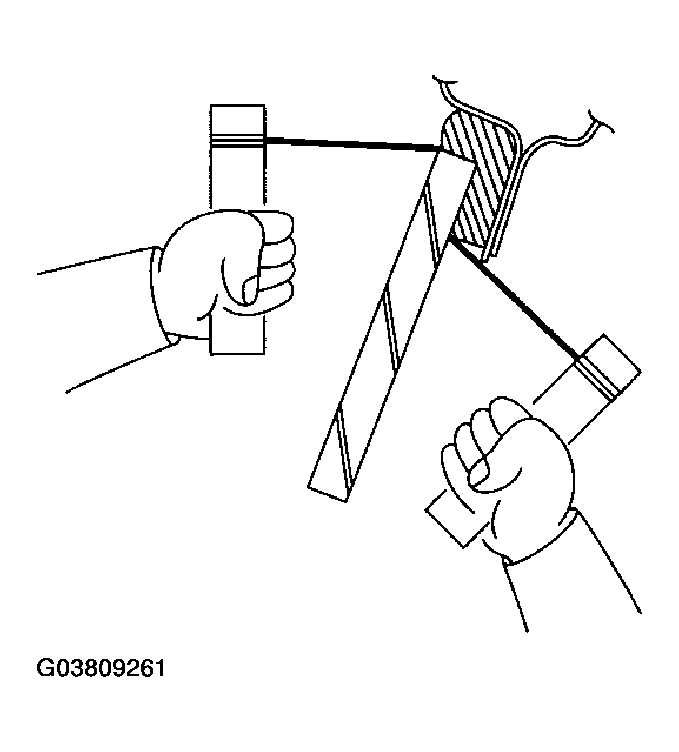

    Fig 1: Passing Piano Wire Through Hole
    G03809261Courtesy of SUBARU OF AMERICA, INC.
  6. Pull the wire ends alternately to cut off the adhesive layer.
CAUTION:
  • Do not tightly pull the piano wire against the windshield glass edge.
  • Be careful not to damage the interior and exterior parts.
  • When removal is made with area close to instrument panel, place a protection plate over it. Pay particular attention to the removal.
  • Do not cross piano wires. Otherwise they may be cut.
