Outer Mirror Assembly: Removal

  1. Remove the door trim. < Ref. to REMOVAL , Front Door Trim. >
  2. Remove the mirror gusset cover.

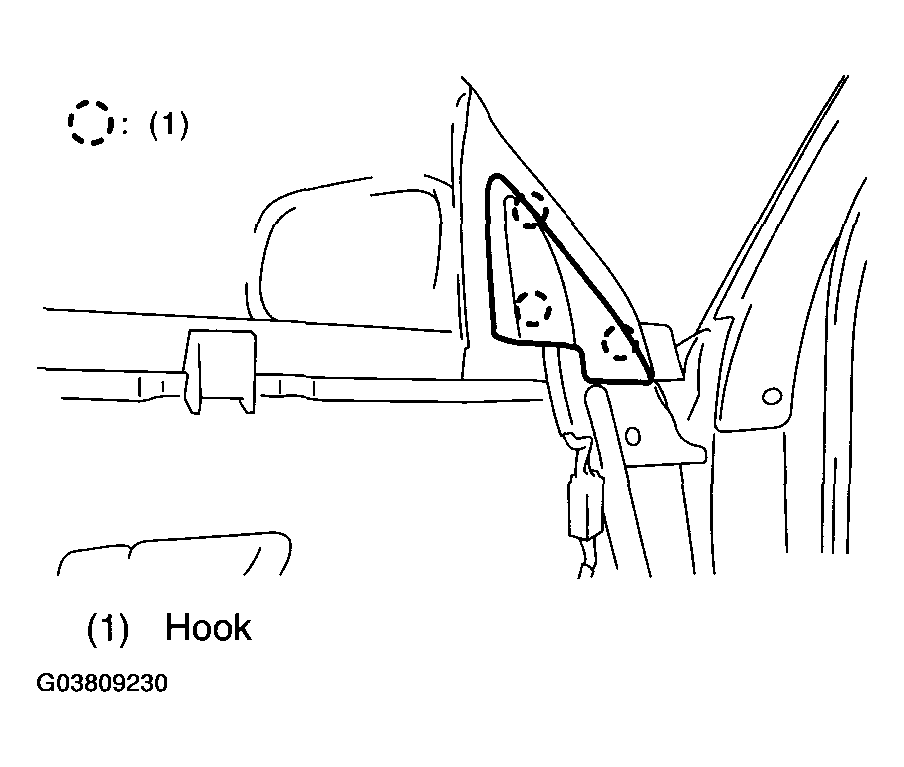

    Fig 1: Removing Mirror Gusset Cover
    G03809230Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the mirror connector.
  4. Remove the grommet, and then loosen the screws to remove outer mirror assembly.

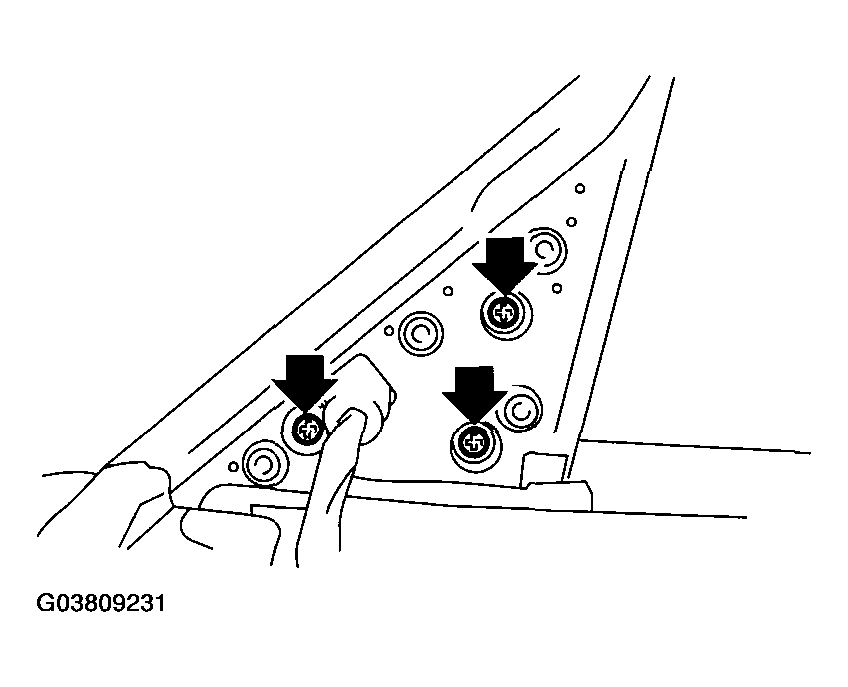

    Fig 2: Removing Grommet, And Outer Mirror Assembly
    G03809231Courtesy of SUBARU OF AMERICA, INC.
