Front Regulator and Motor Assembly: Removal

Remove the door glass. < Ref. to REMOVAL , Front Door Glass. >

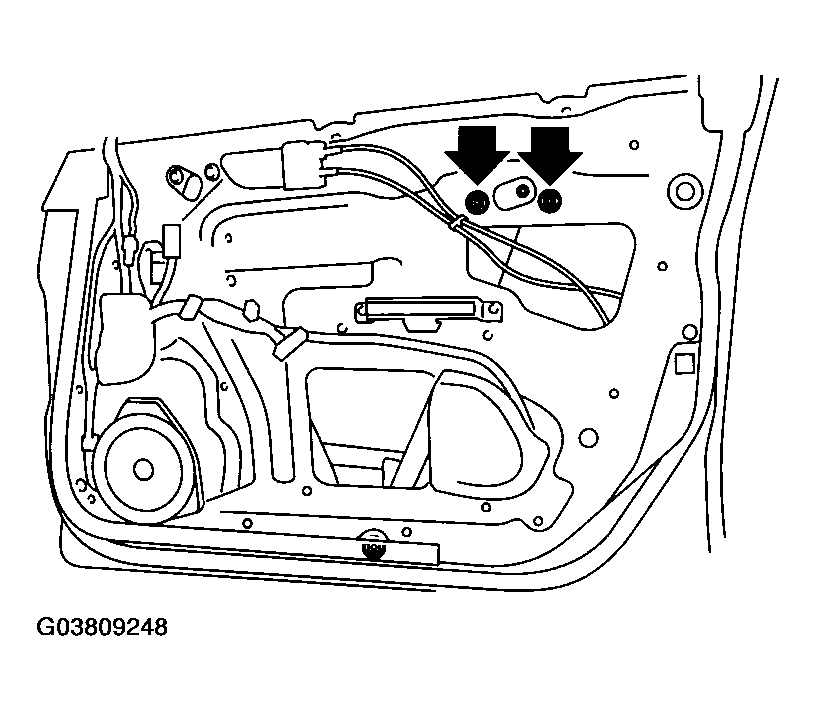

Loosen the nuts to remove rear sash.

Fig 1: Loosening Nuts To Remove Rear Sash
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.

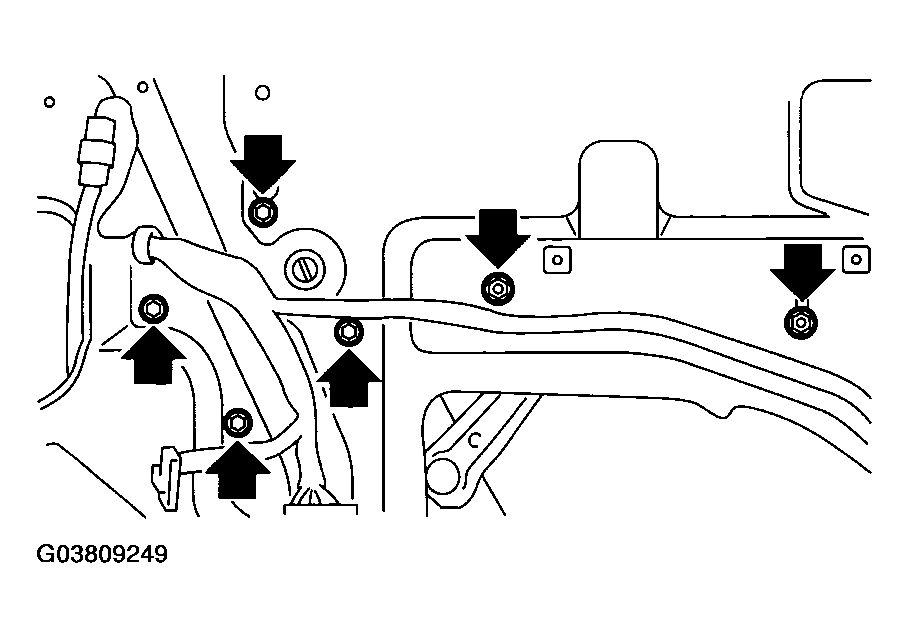

Loosen the four bolts and two nuts to remove regulator assembly.

Fig 2: Loosening Four Bolts And Two Nuts To Remove Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.

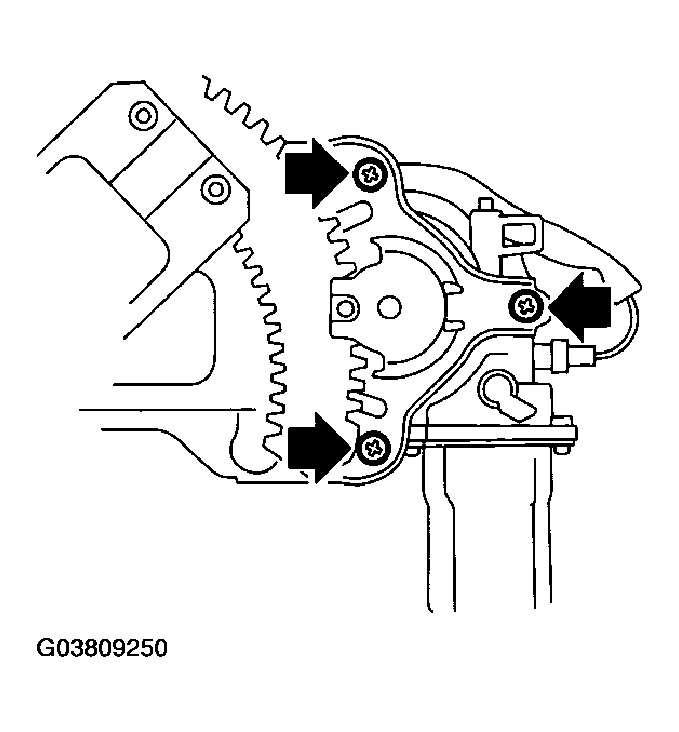

Loosen the screws to remove motor assembly.

Fig 3: Loosening Screws To Remove Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
