Service Manual Corrections (18-77-04)

Publication date: 2004-08-20
Reference number: 18-77-04

SERVICE MANUAL CORRECTIONS

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-77-04, Date of Issue: August 20, 2004

SUBARU:

2005MY Subaru Vehicles

INTRODUCTION

Place a REVISED label on the appropriate pages of the noted effected Service Manuals and update the appropriate Service Manual Correction Binder(s) with the following pages:

INTRODUCTION

Year	Model	Book/Vol#	MSA#	Section	Page
2005	Legacy	Sect. 3	MSA5T0502A	Engine(Diag)	EN(H4SO U5)(diag)-306 to EN(H4SO U5)(diag)-325
2005	Legacy	Sect. 8	MSA5TO507A	HVAC Sys(Diag)	AC(diag)-39 to AC(diag)-42
2005	Legacy	Sect. 9	MSA5TO508A	Wiring System	WI-52

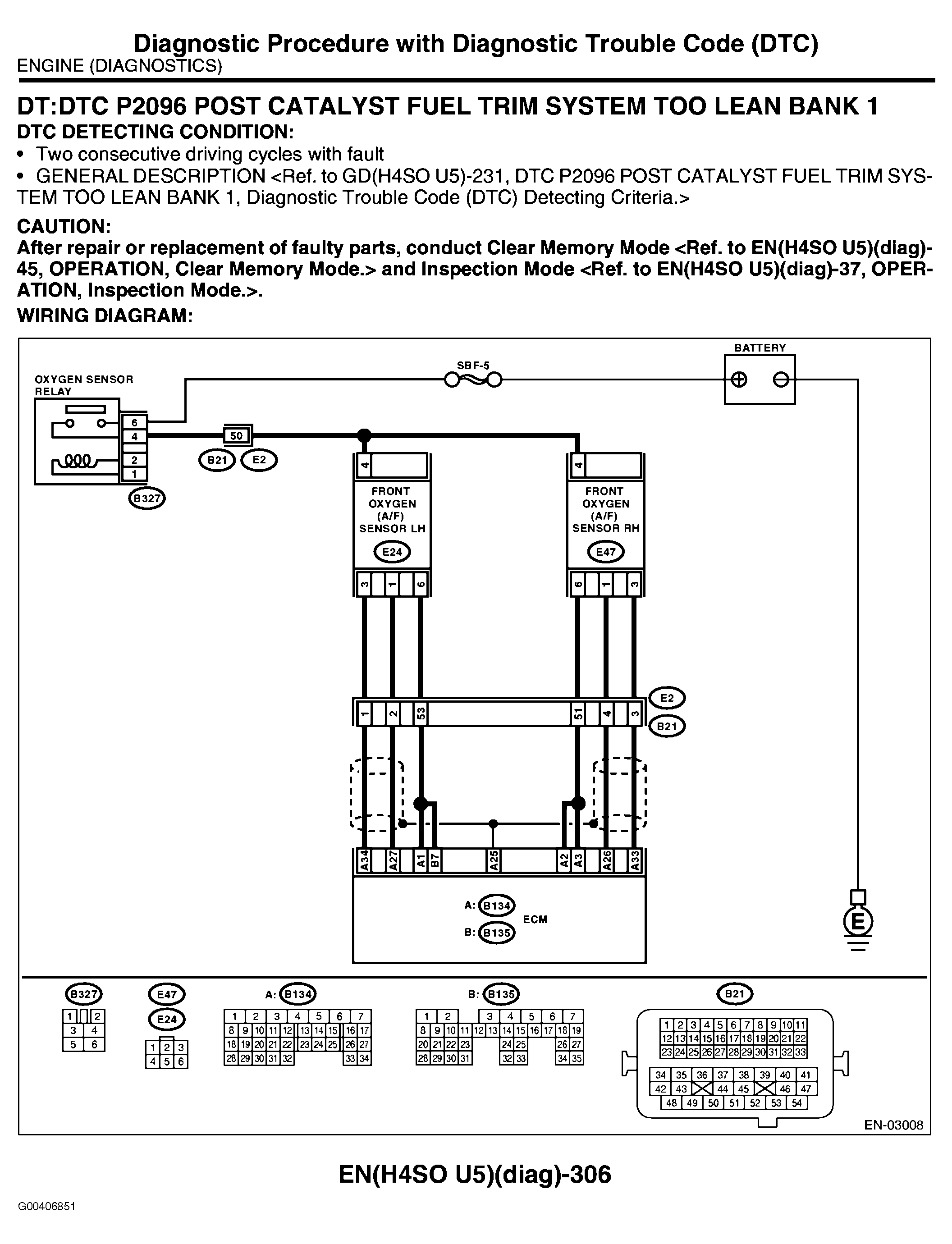

Fig 1: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-306

G00406851

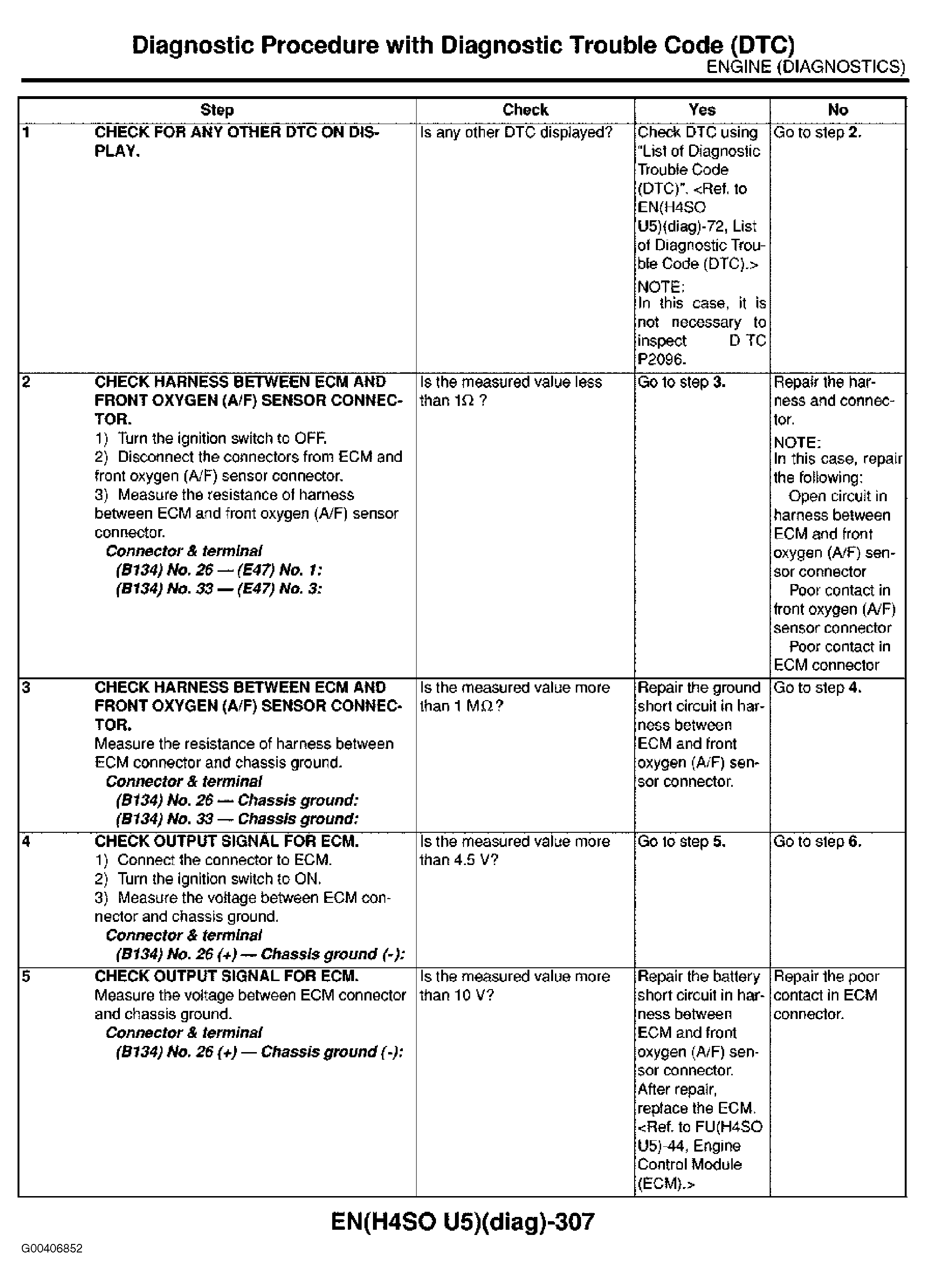

Fig 2: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-307

G00406852

Fig 3: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-308

G00406853

Fig 4: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-309

G00406854

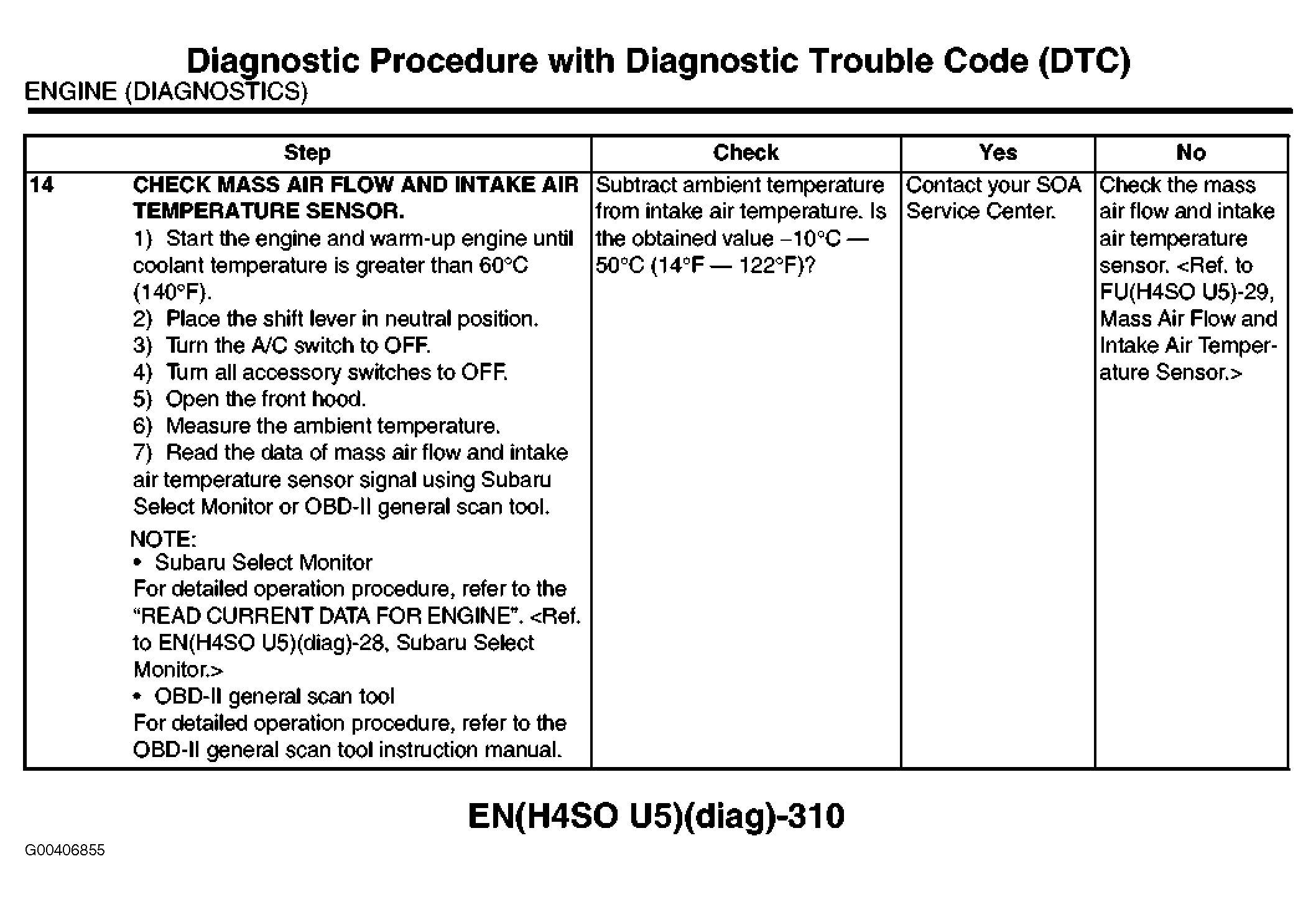

Fig 5: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-310

G00406855

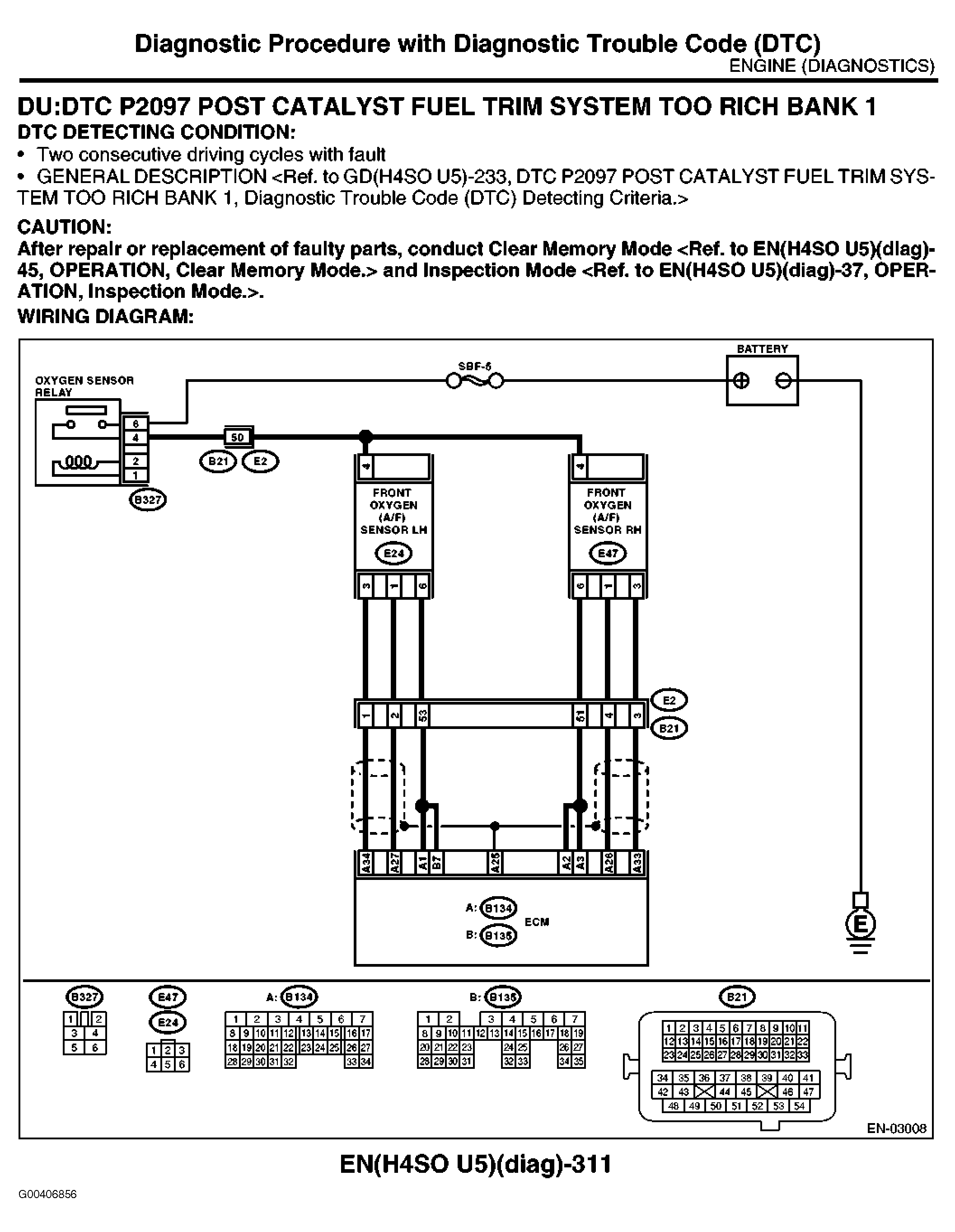

Fig 6: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-311

G00406856

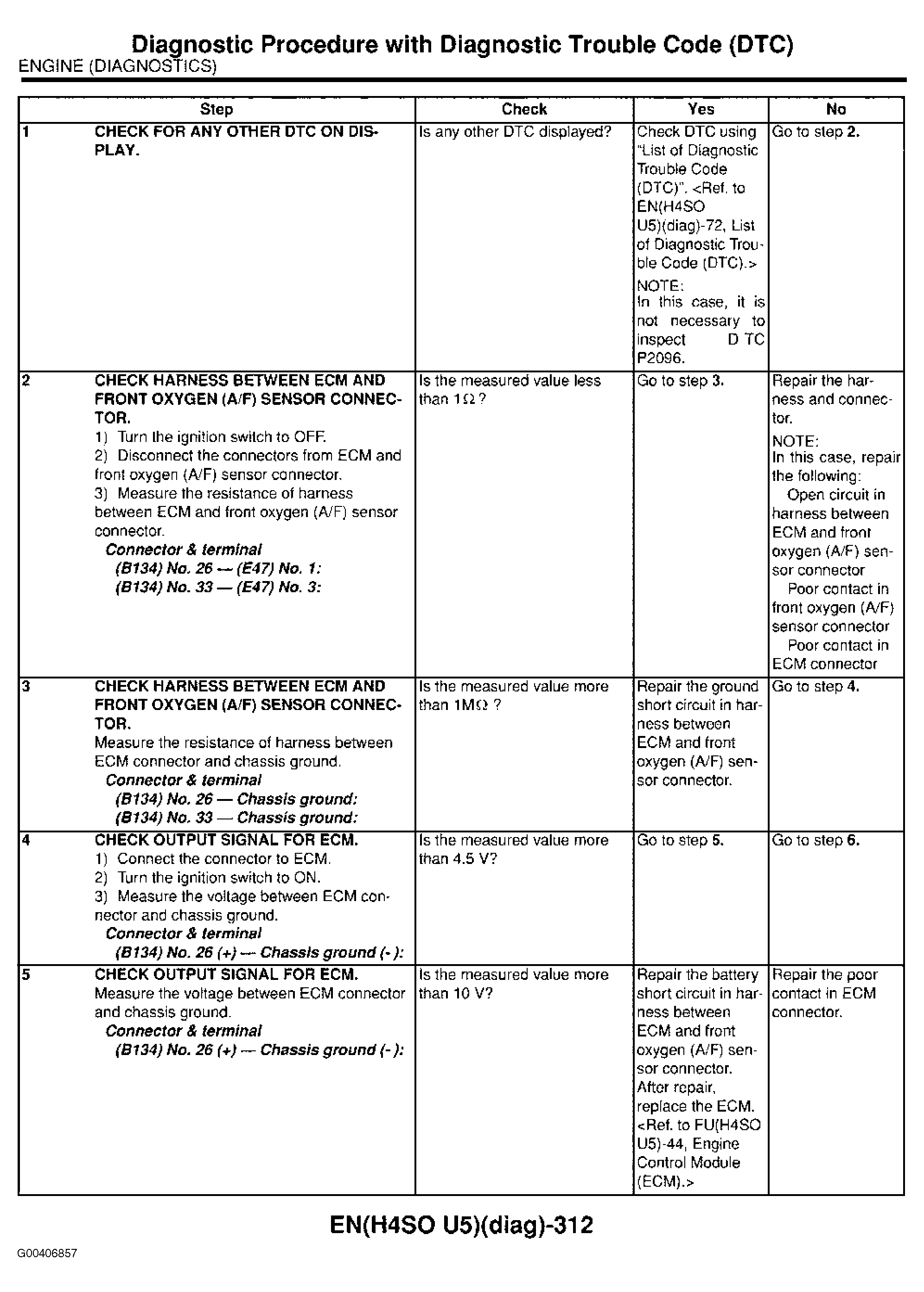

Fig 7: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-312

G00406857

Fig 8: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-313

G00406858

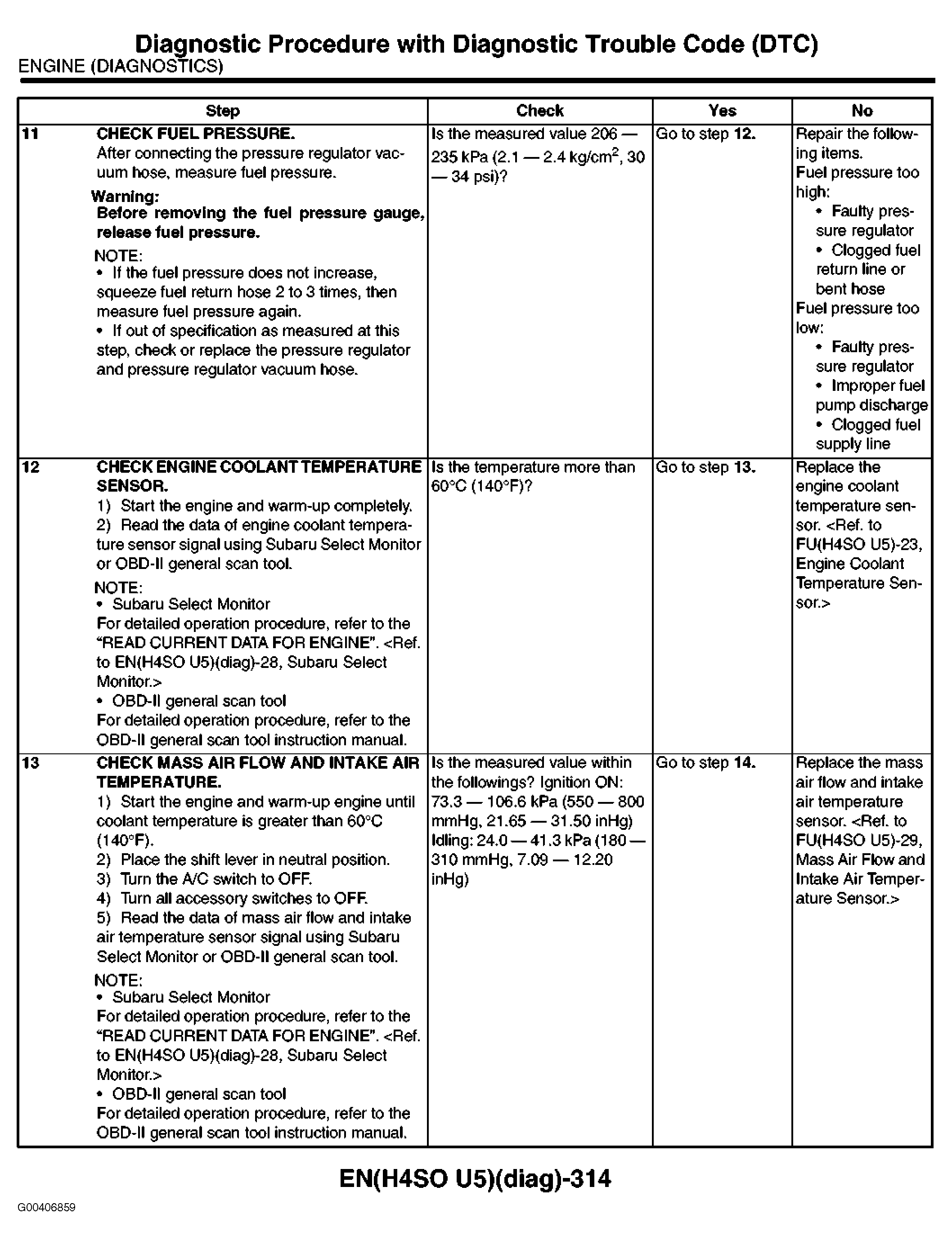

Fig 9: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-314

G00406859

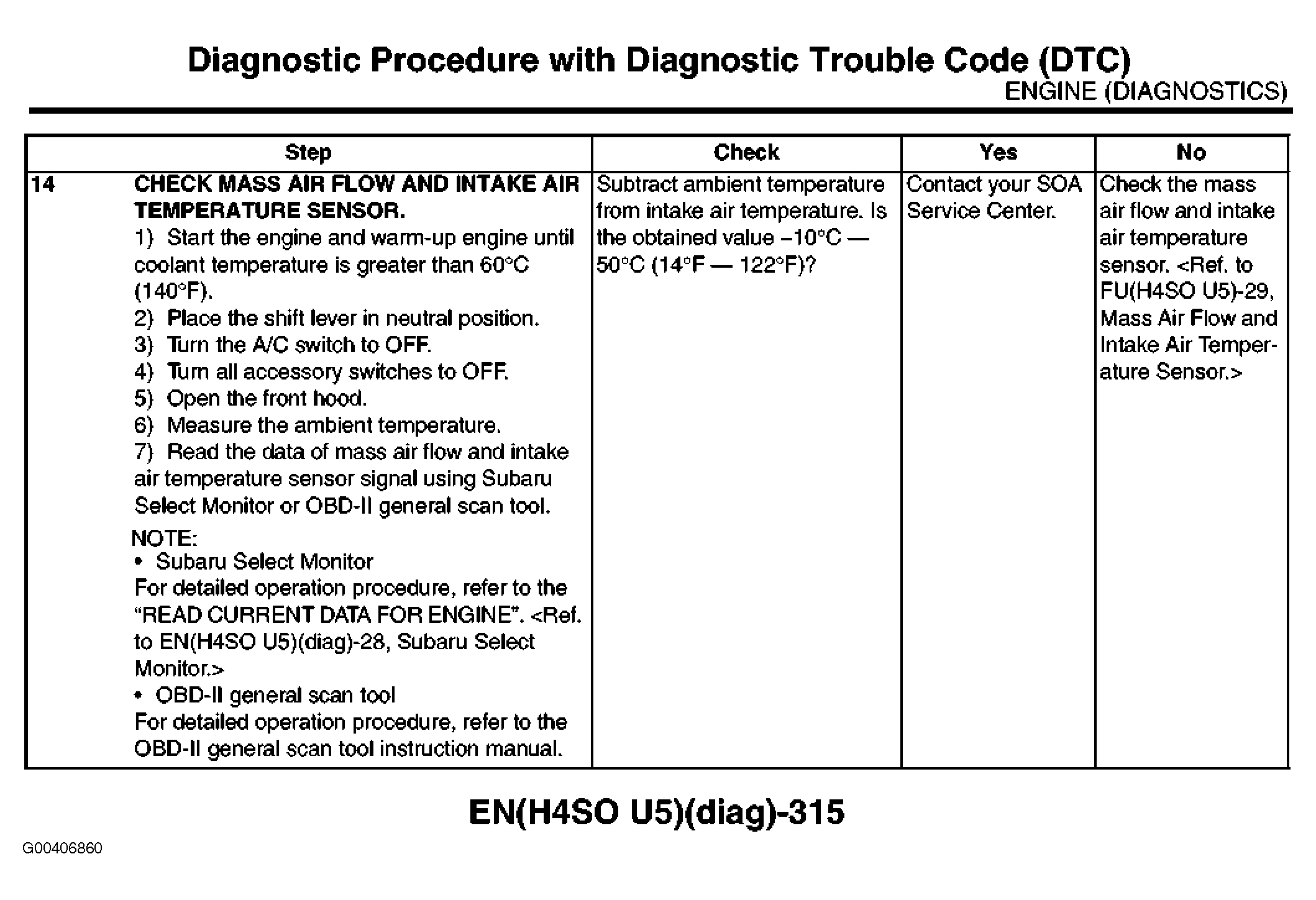

Fig 10: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-315

G00406860

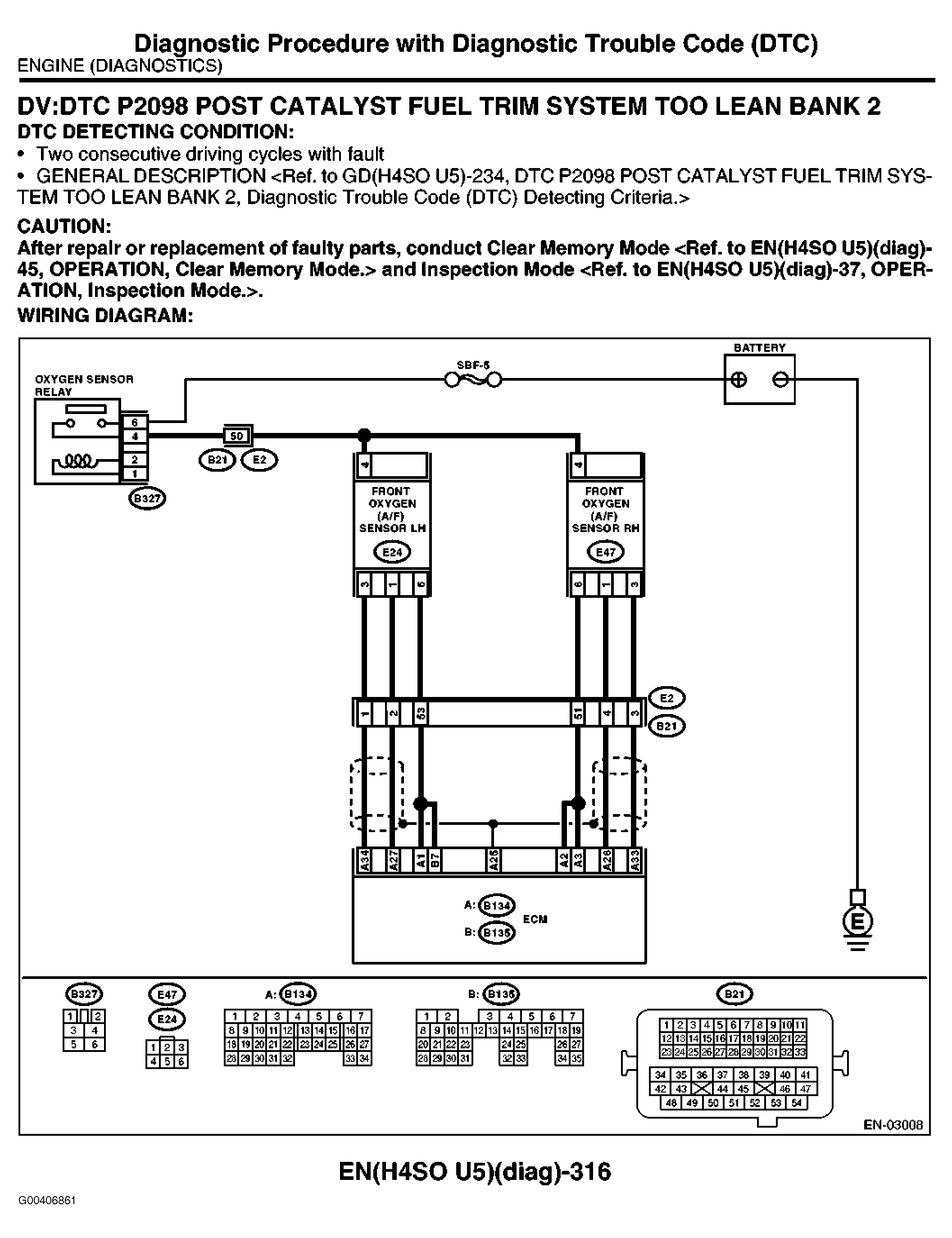

Fig 11: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-316

G00406861

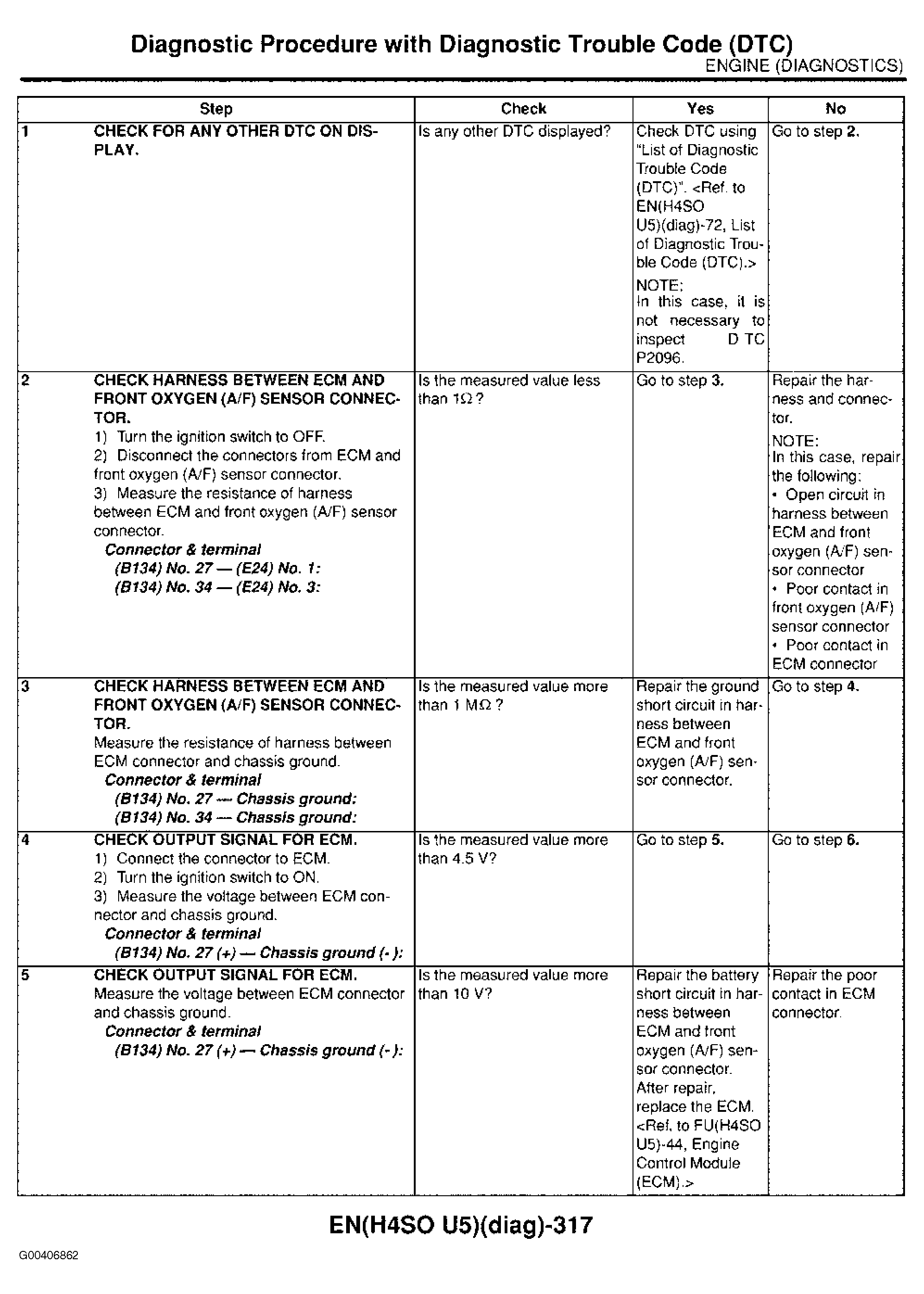

Fig 12: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-317

G00406862

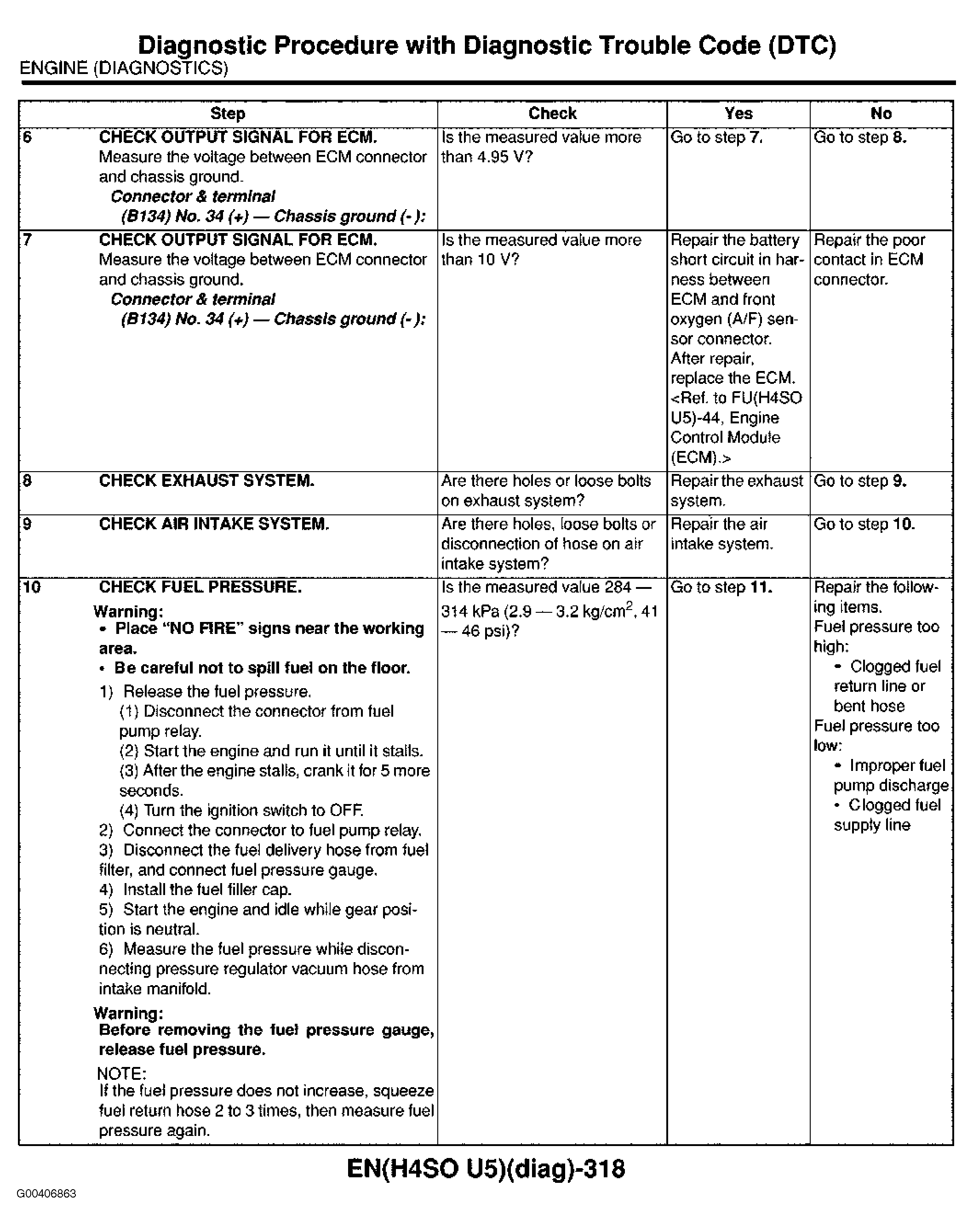

Fig 13: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-318

G00406863

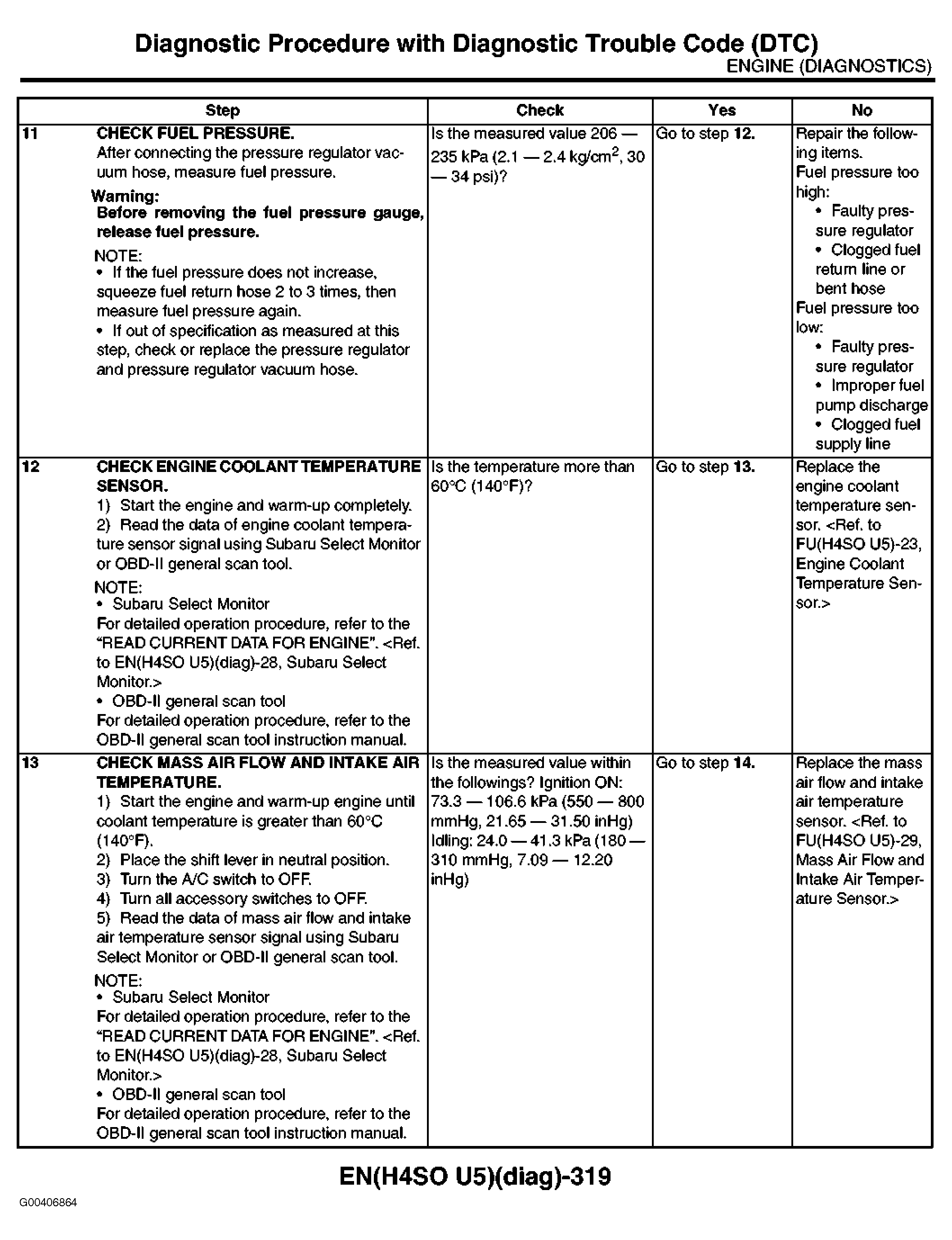

Fig 14: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-319

G00406864

Fig 15: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-320

G00406865

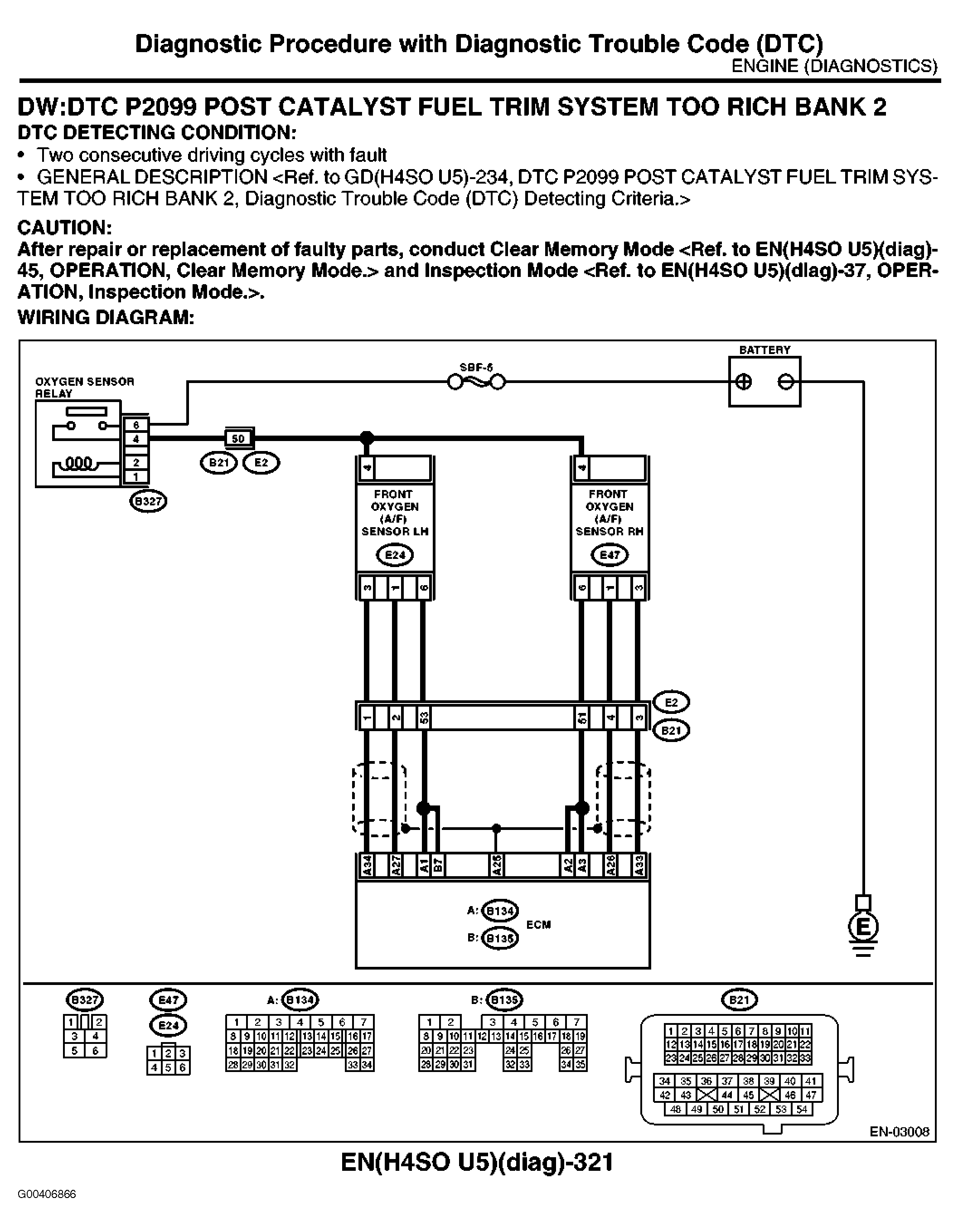

Fig 16: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-321

G00406866

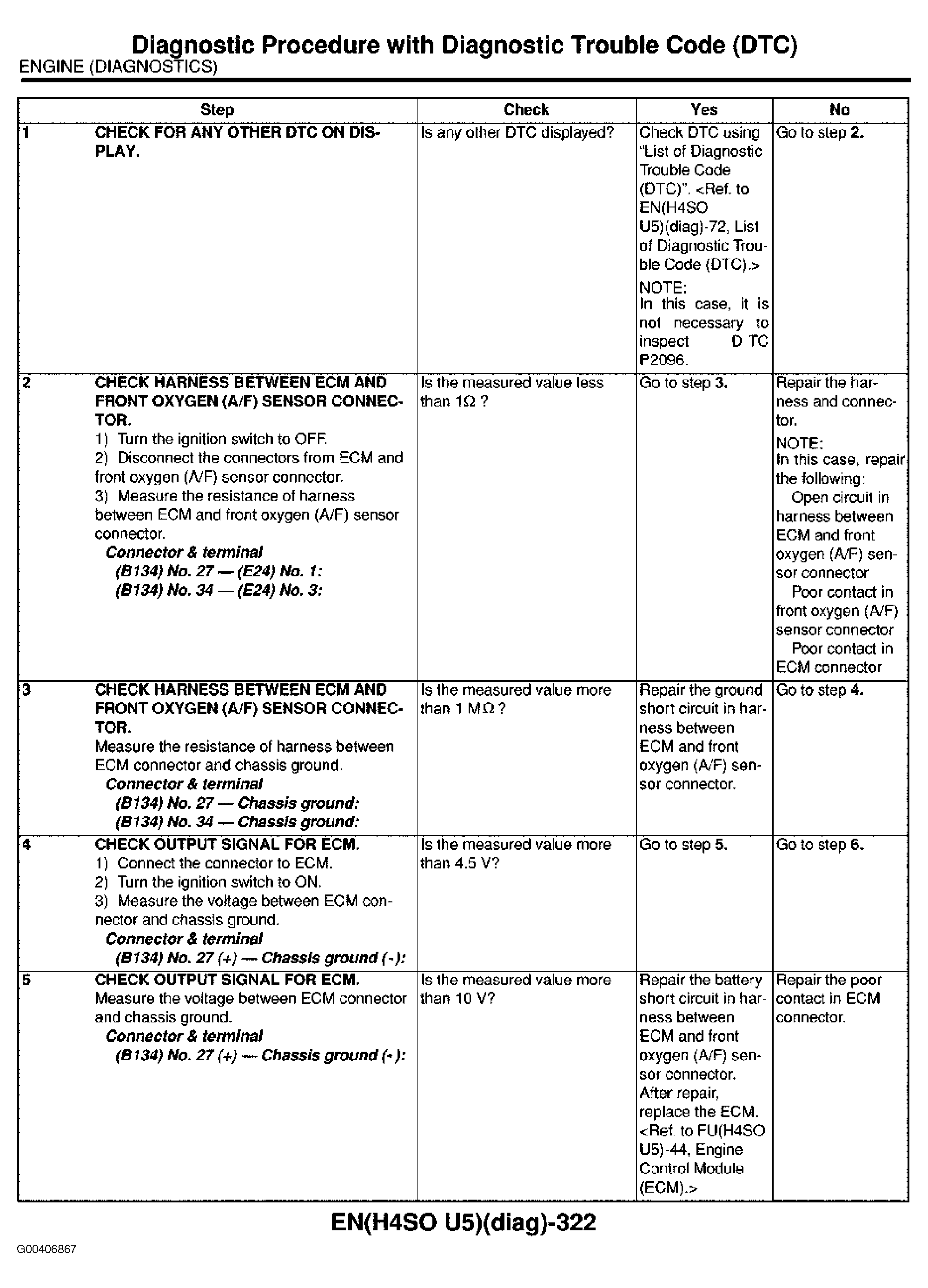

Fig 17: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-322

G00406867

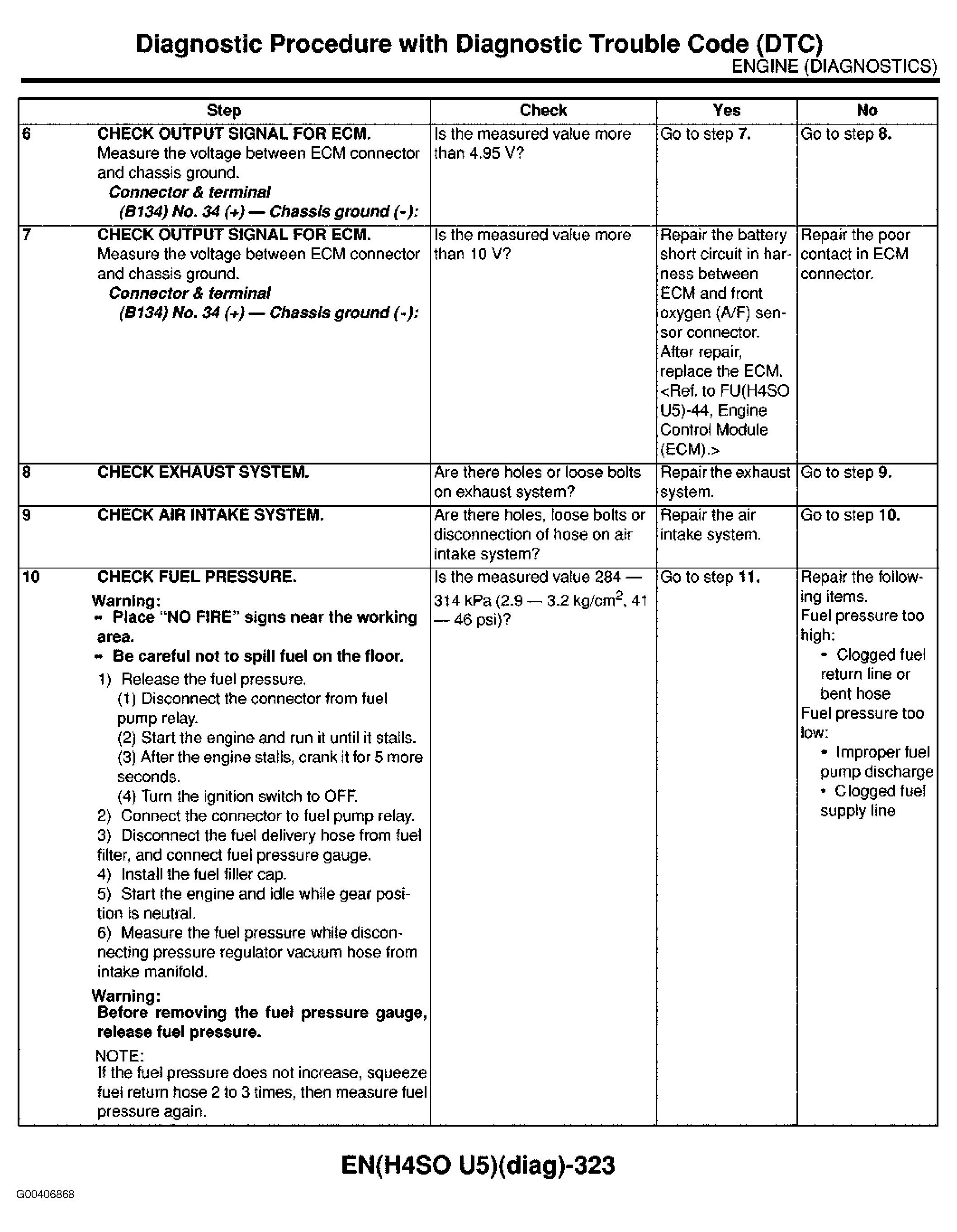

Fig 18: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-323

G00406868

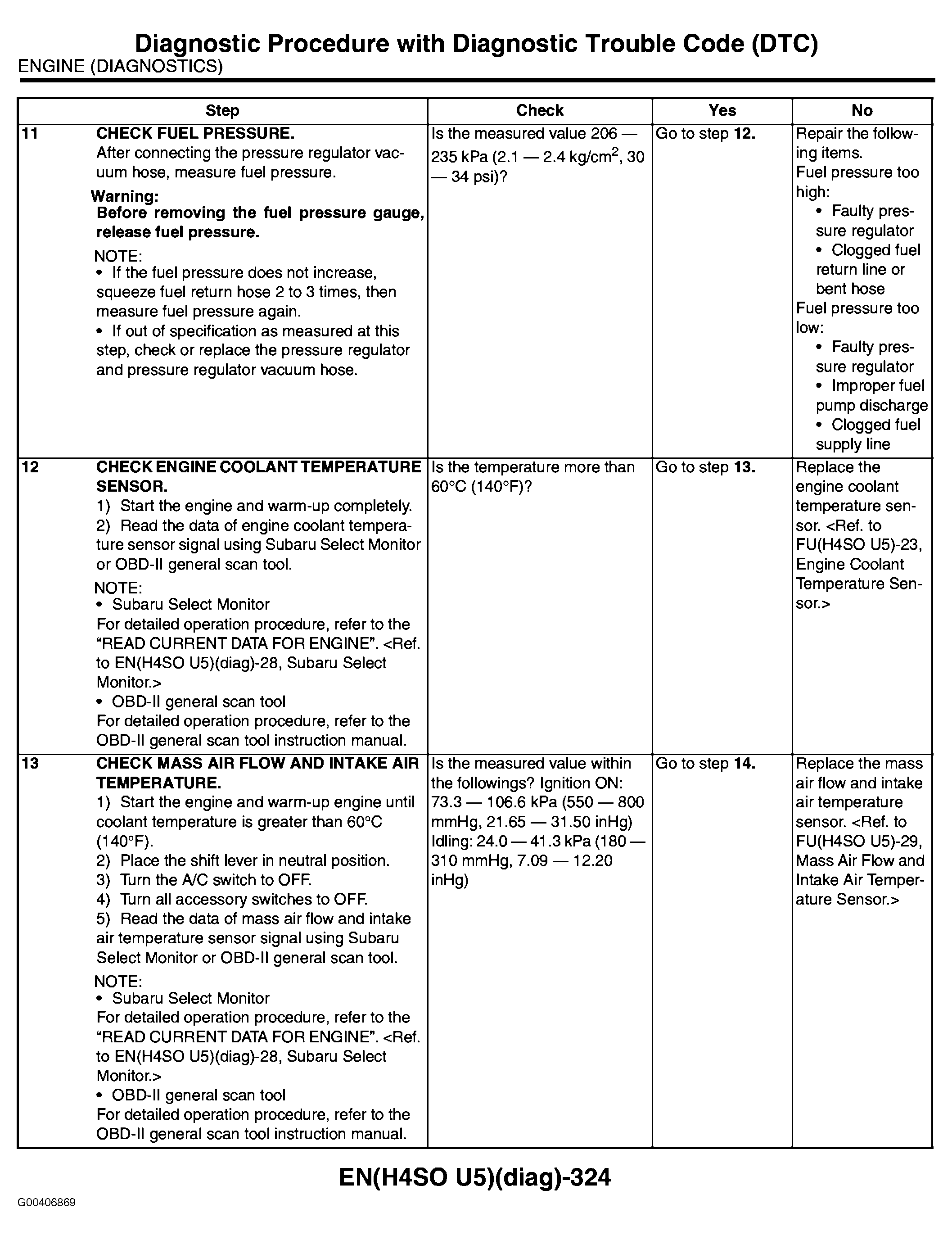

Fig 19: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-324

G00406869

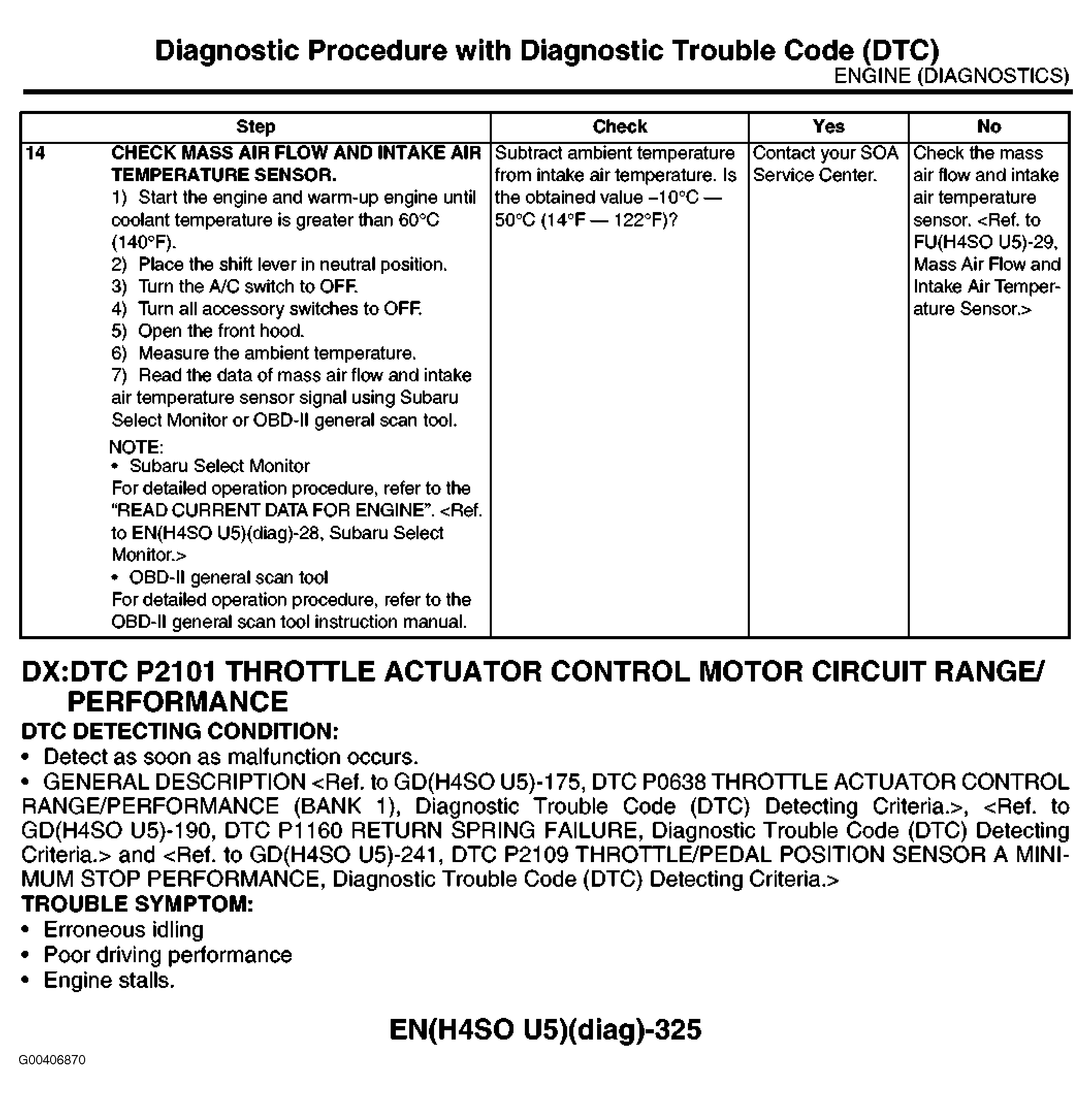

Fig 20: Replacement Page For MSA5T0502A, Page EN(H4SO U5)(diag)-325

G00406870

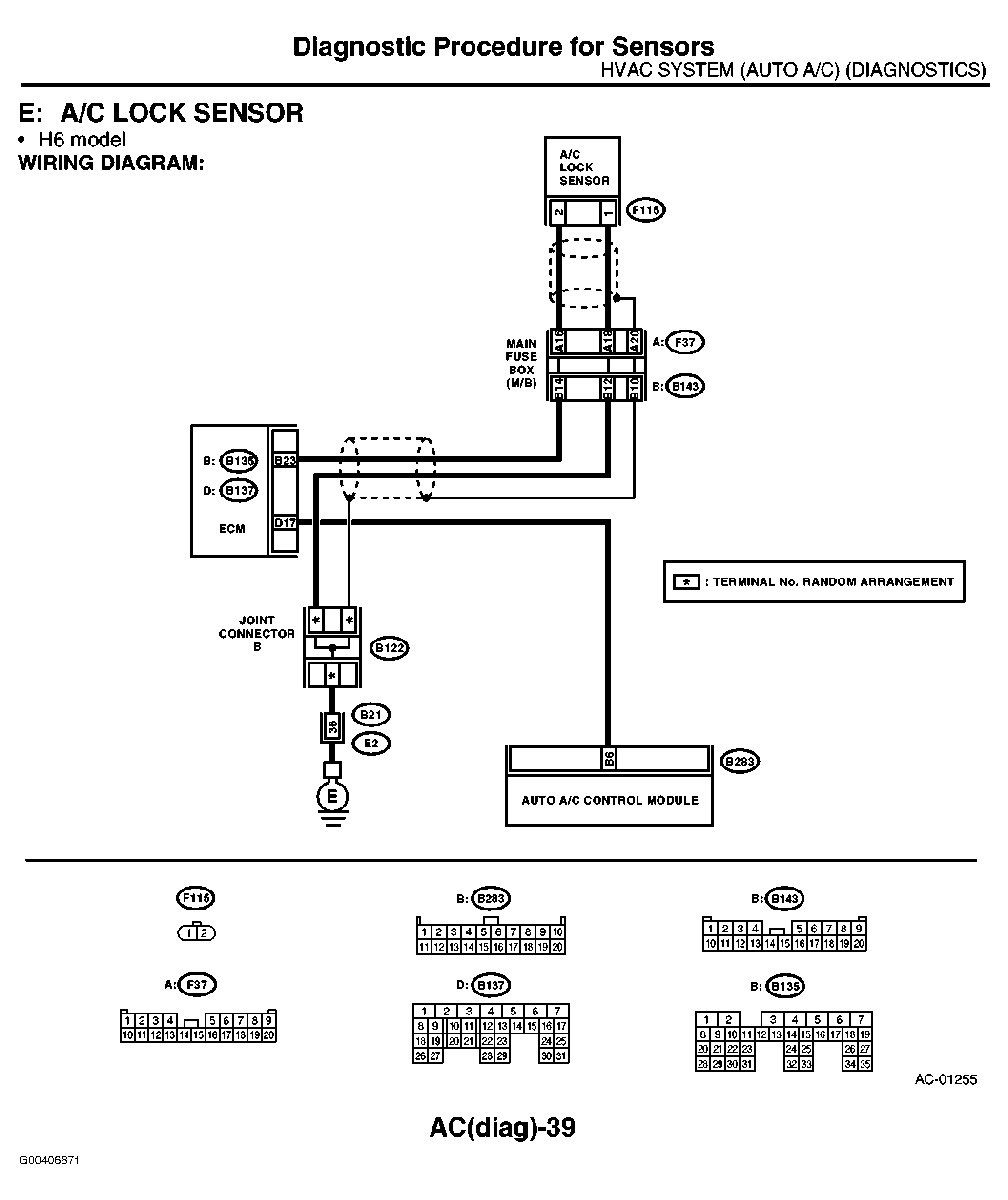

Fig 21: Replacement Page For MSA5T0507A, Page AC(diag)-39

G00406871

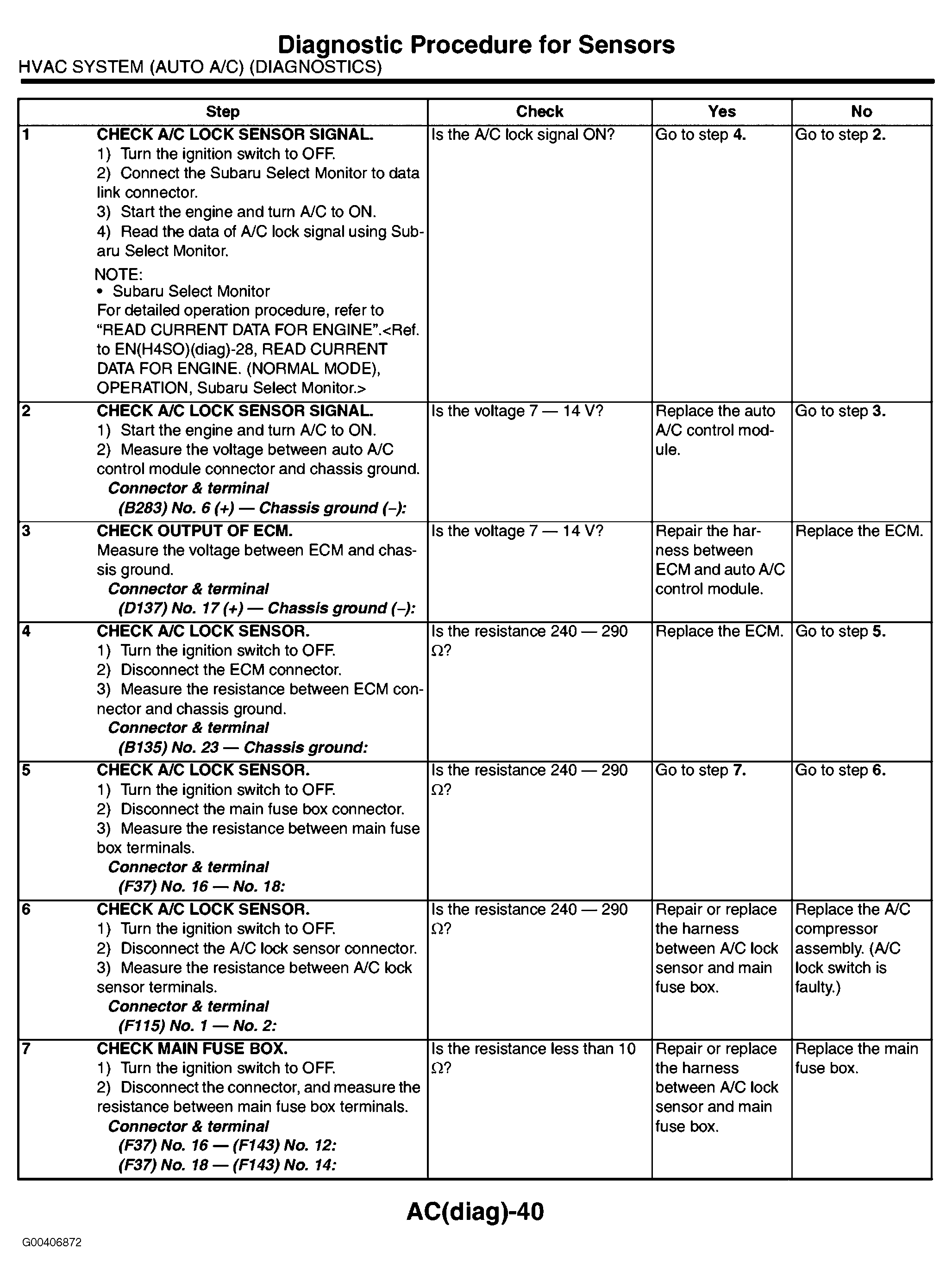

Fig 22: Replacement Page For MSA5T0507A, Page AC(diag)-40

G00406872

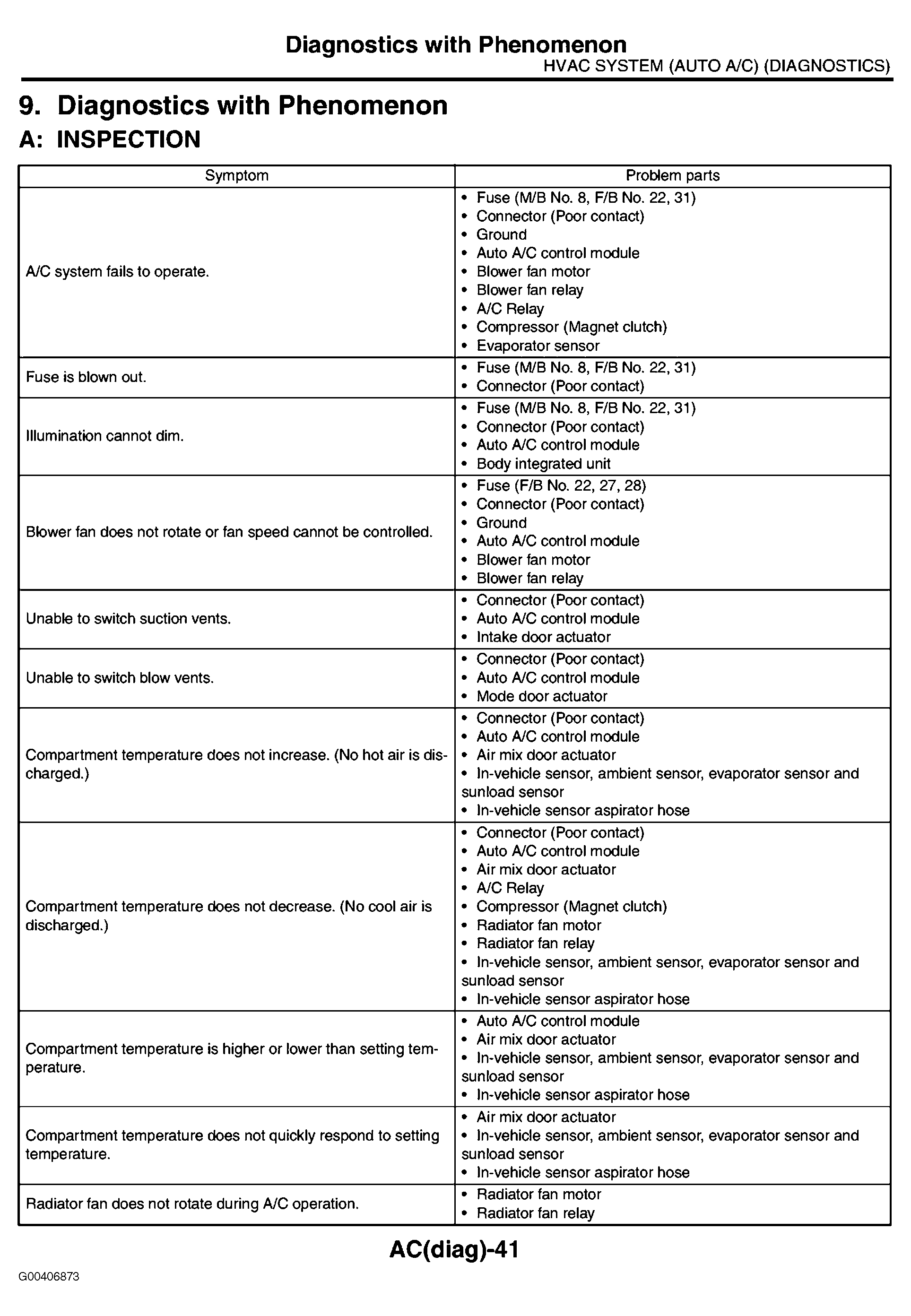

Fig 23: Replacement Page For MSA5T0507A, Page AC(diag)-41

G00406873

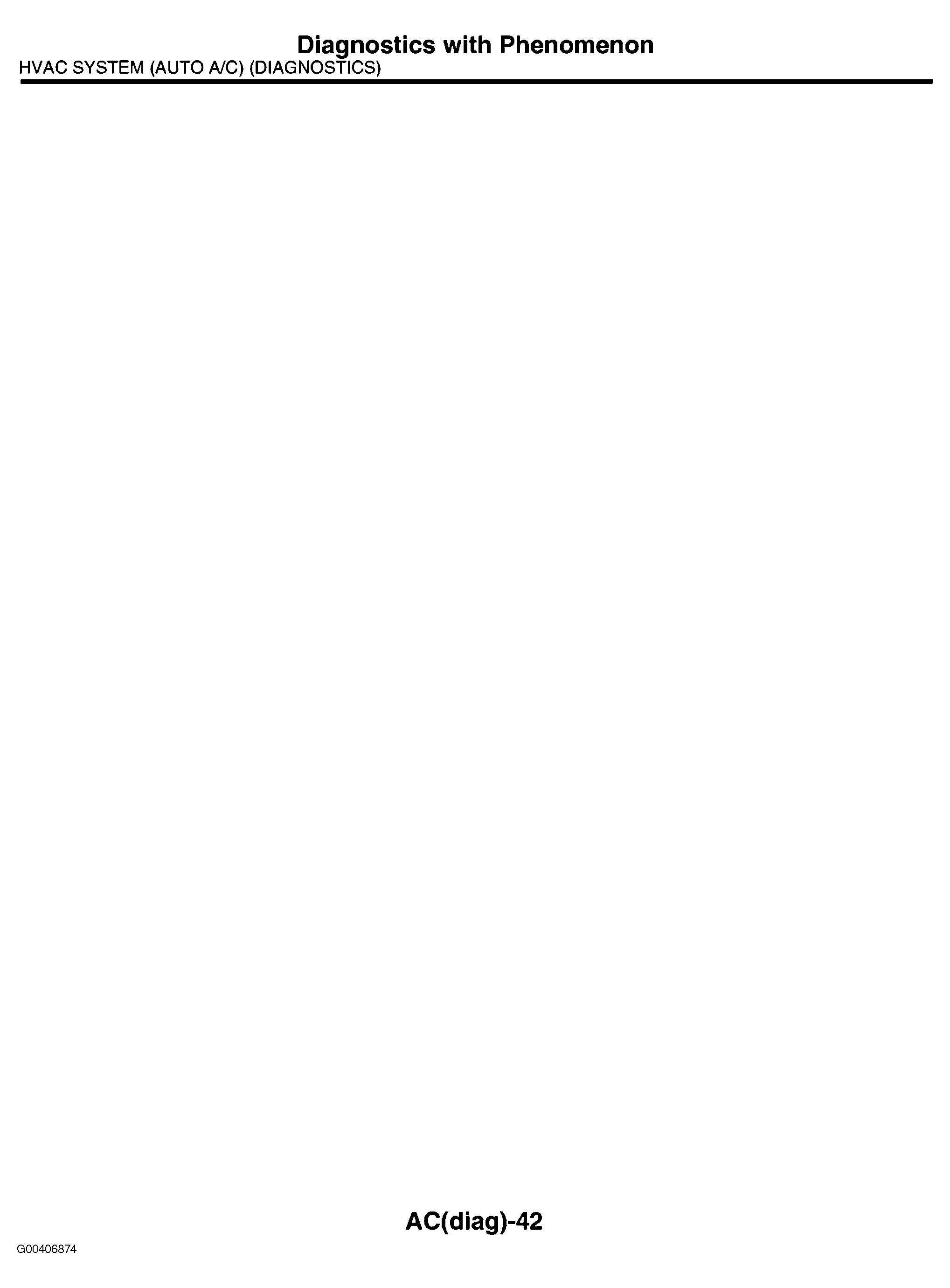

Fig 24: Replacement Page For MSA5T0507A, Page AC(diag)-42

G00406874

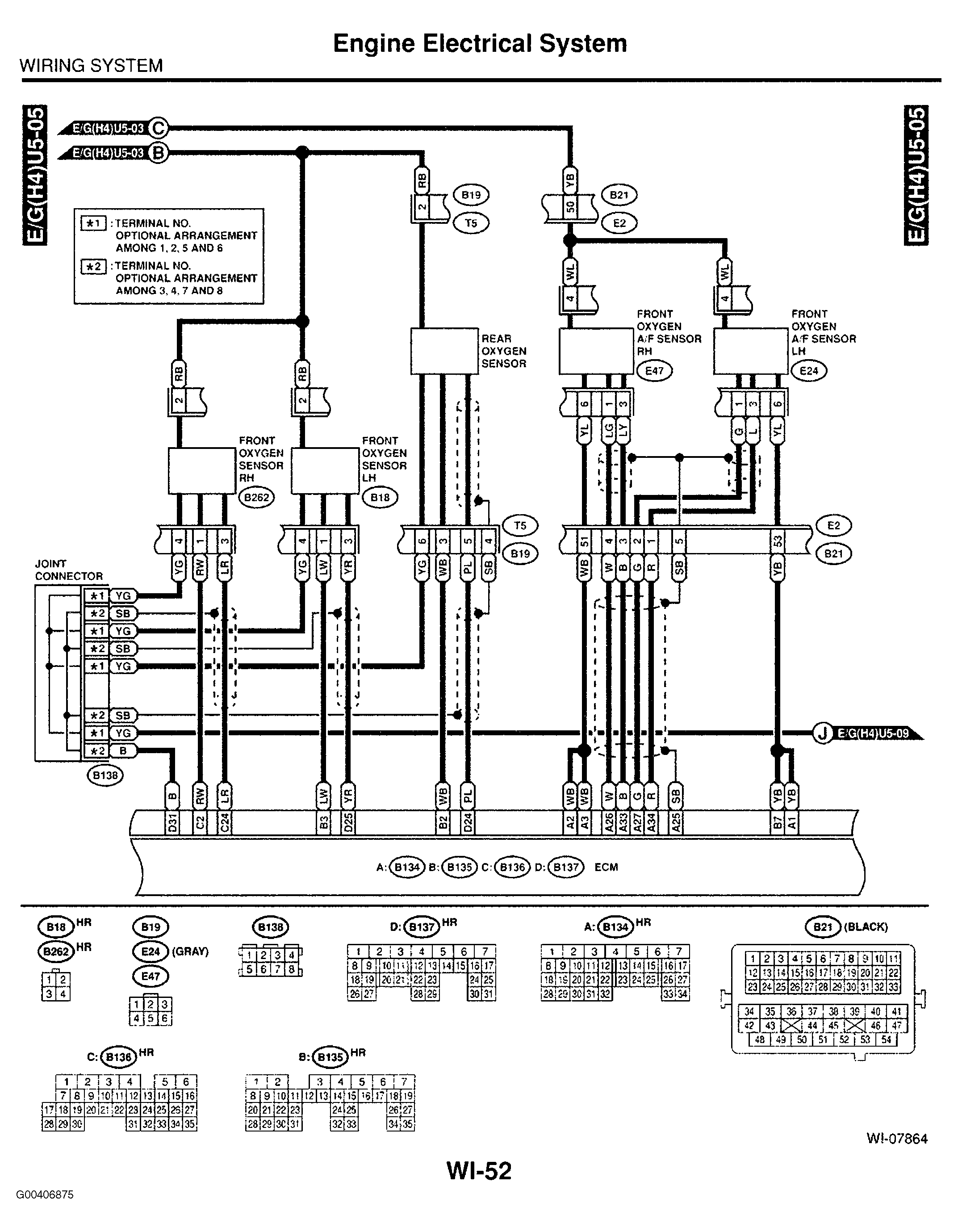

Fig 25: Replacement Page For MSA5T0508A, Page WI-52

G00406875
