TURBO model

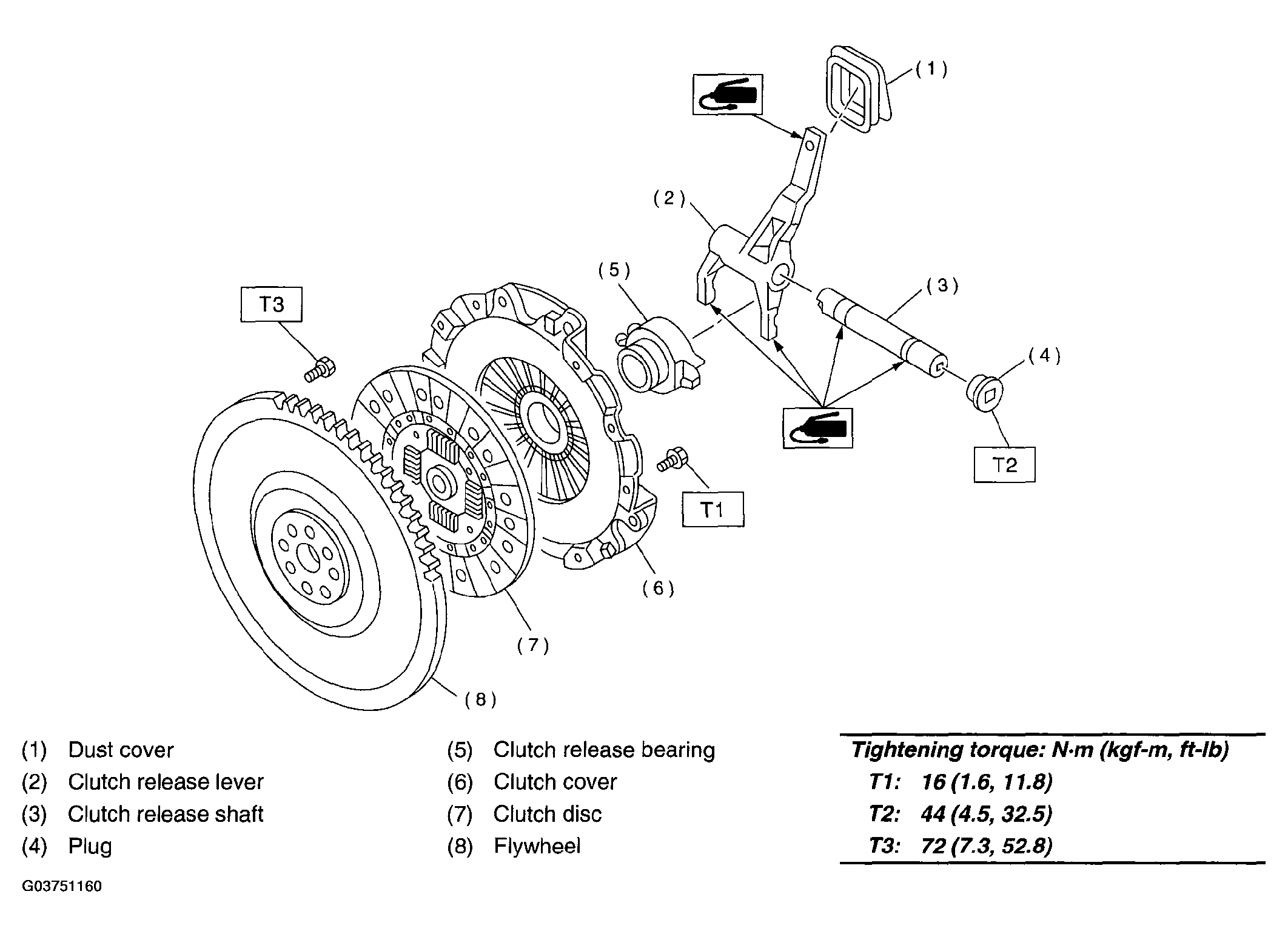

Fig 1: Clutch Assembly Replacement Components With Torque Specifications (Turbo Model)

G03751160

Courtesy of SUBARU OF AMERICA, INC.
