Reduction Drive Gear: Disassembly

  1. Take out the seal rings.

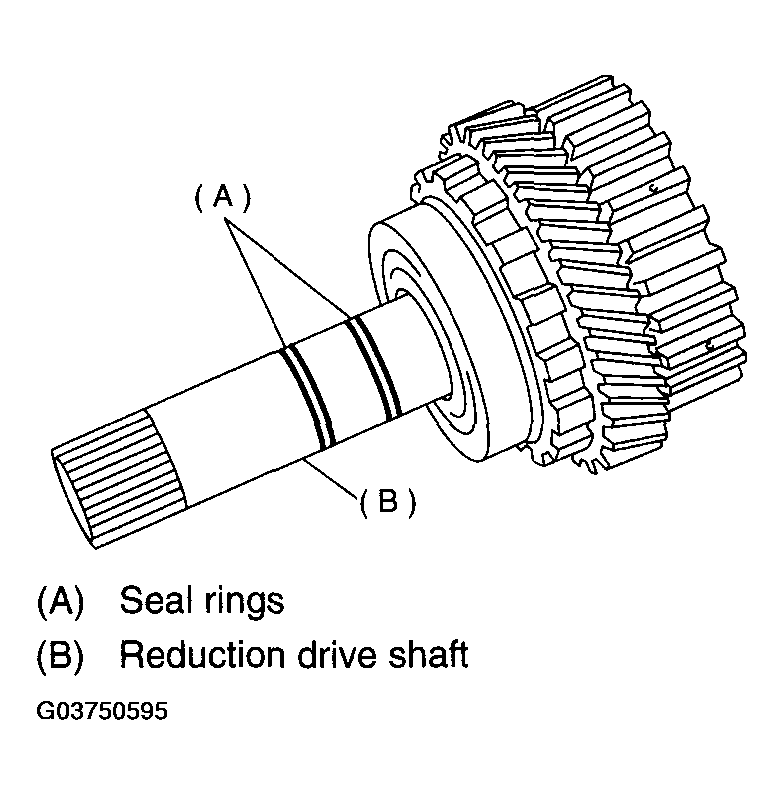

    Fig 1: Removing Seal Rings
    G03750595Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove the ball bearing.

    ST 498077600 REMOVER

    Fig 2: Removing Ball Bearing Using Remover ST498077600
    G03750596Courtesy of SUBARU OF AMERICA, INC.
  3. Using a press, remove the reduction drive gear.
    Fig 3: Removing Reduction Drive Gear
    G03750597Courtesy of SUBARU OF AMERICA, INC.
