Automatic Transmission
>>
General Description
>>
Components With Torque Specifications
>>
Transfer And Extension Case With VTD
Transfer And Extension Case With VTD

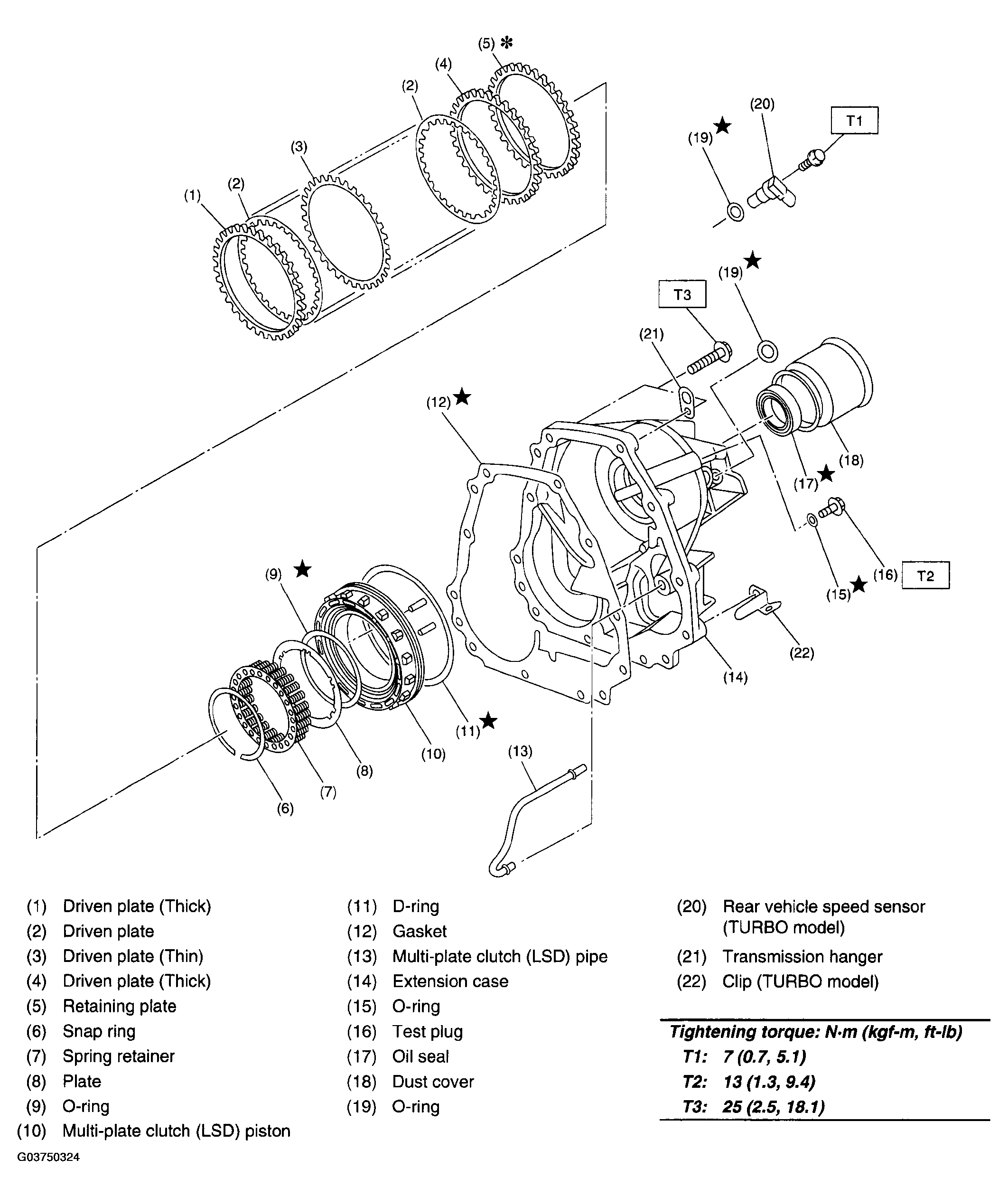

Fig 1: Exploded View Of Transfer And Extension Case With VTD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
