Automatic Transmission
>>
General Description
>>
Components With Torque Specifications
>>
Reduction Gear With VTD
Reduction Gear With VTD

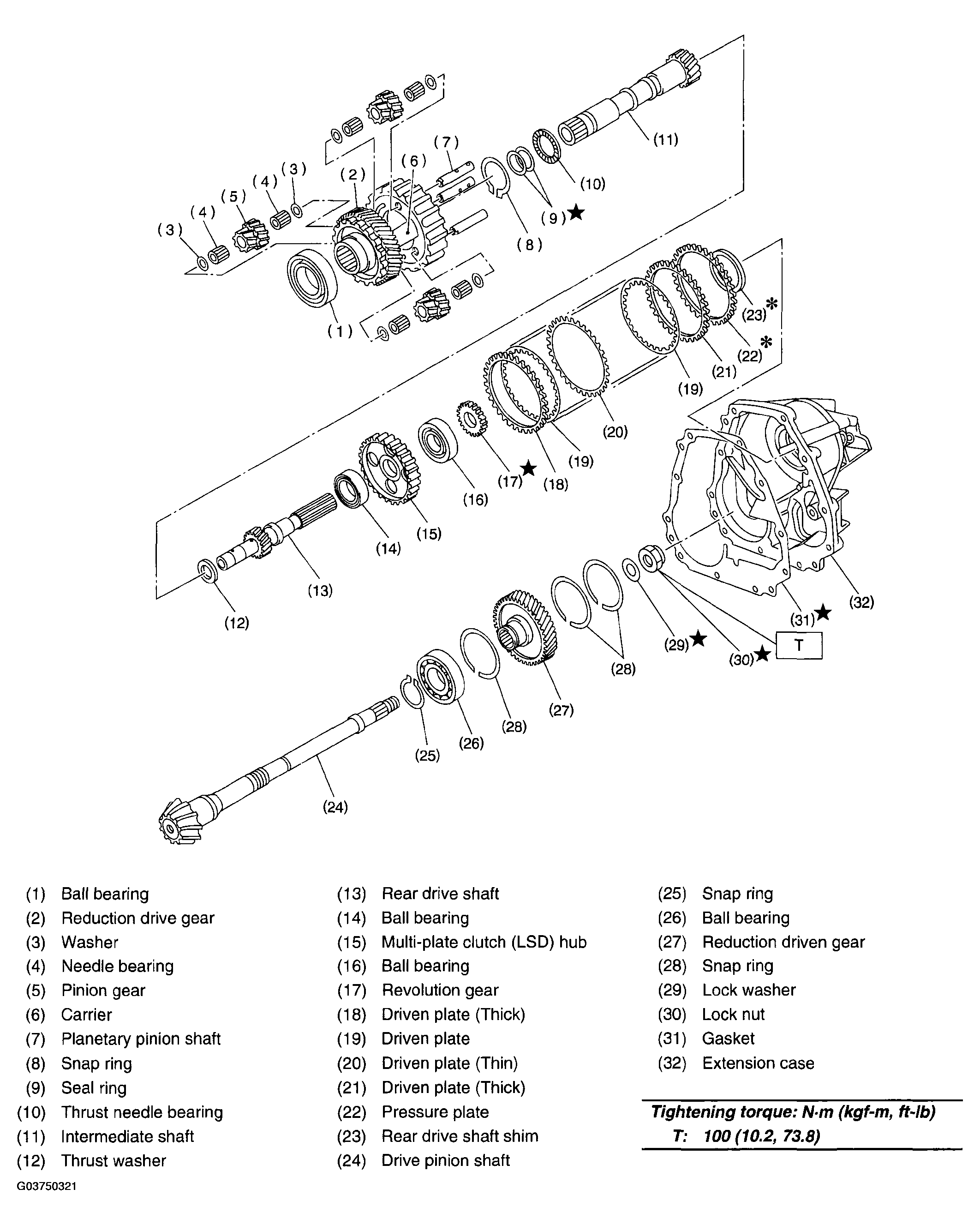

Fig 1: Exploded View Of Reduction Gear With VTD With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
