Home
>>
Subaru
>>
2005
>>
Baja Turbo, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
General Description
>>
Components With Torque Specifications
>>
Oil Pump
Oil Pump

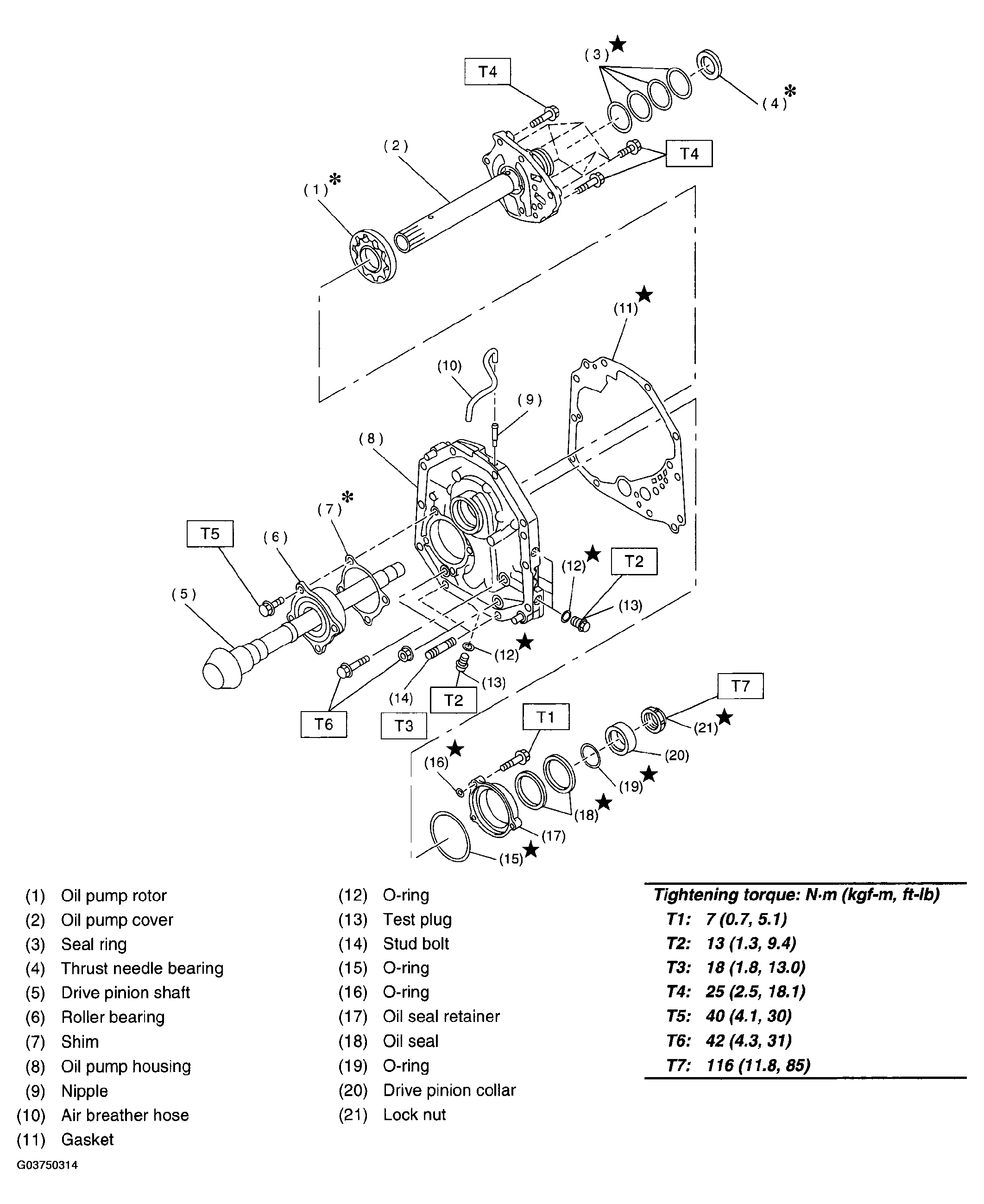

Fig 1: Replacement Components Of Oil Pump With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
