Link Rear: Installation

Install in the reverse order of removal, observing the following instructions.

CAUTION: Using transmission jack, support rear arm horizontally, install link rear and tighten nuts to specified torque.

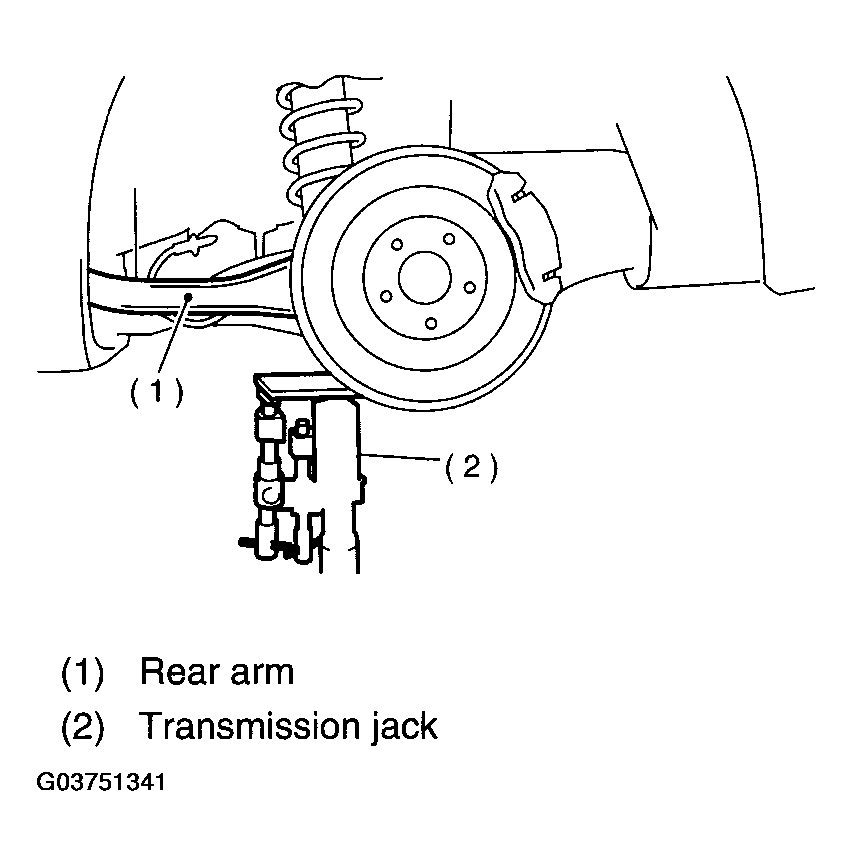

Fig 1: Supporting Rear Arm Horizontally
G03751341Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Tighten nut when installing adjusting bolt.
  • Use a new self-locking nut.
NOTE: Check wheel alignment and adjust if necessary.
