Link Rear: Assembly

Using ST-A and ST-B, press bushing into place.

ST-A 20099AE000 INSTALLER & REMOVER

ST-B 20099AE000 INSTALLER & REMOVER

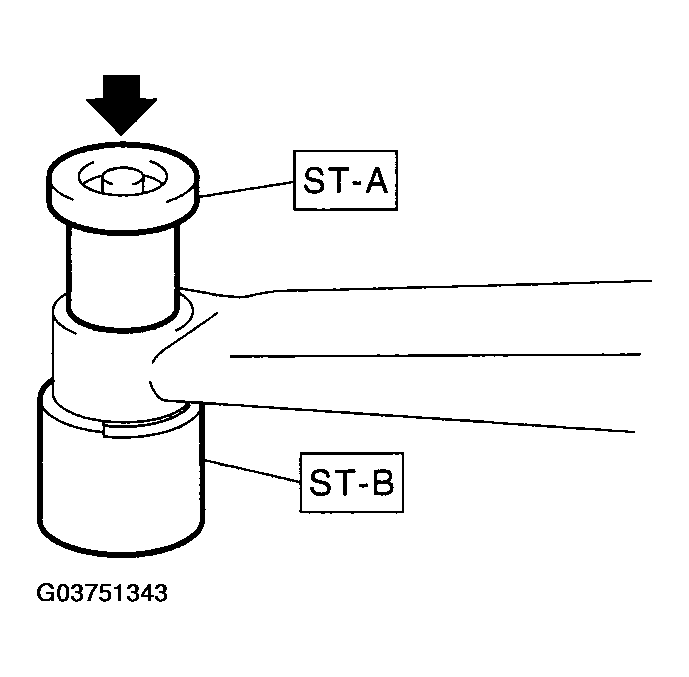

Fig 1: Pressing Bushing
G03751343Courtesy of SUBARU OF AMERICA, INC.
