TURBO model

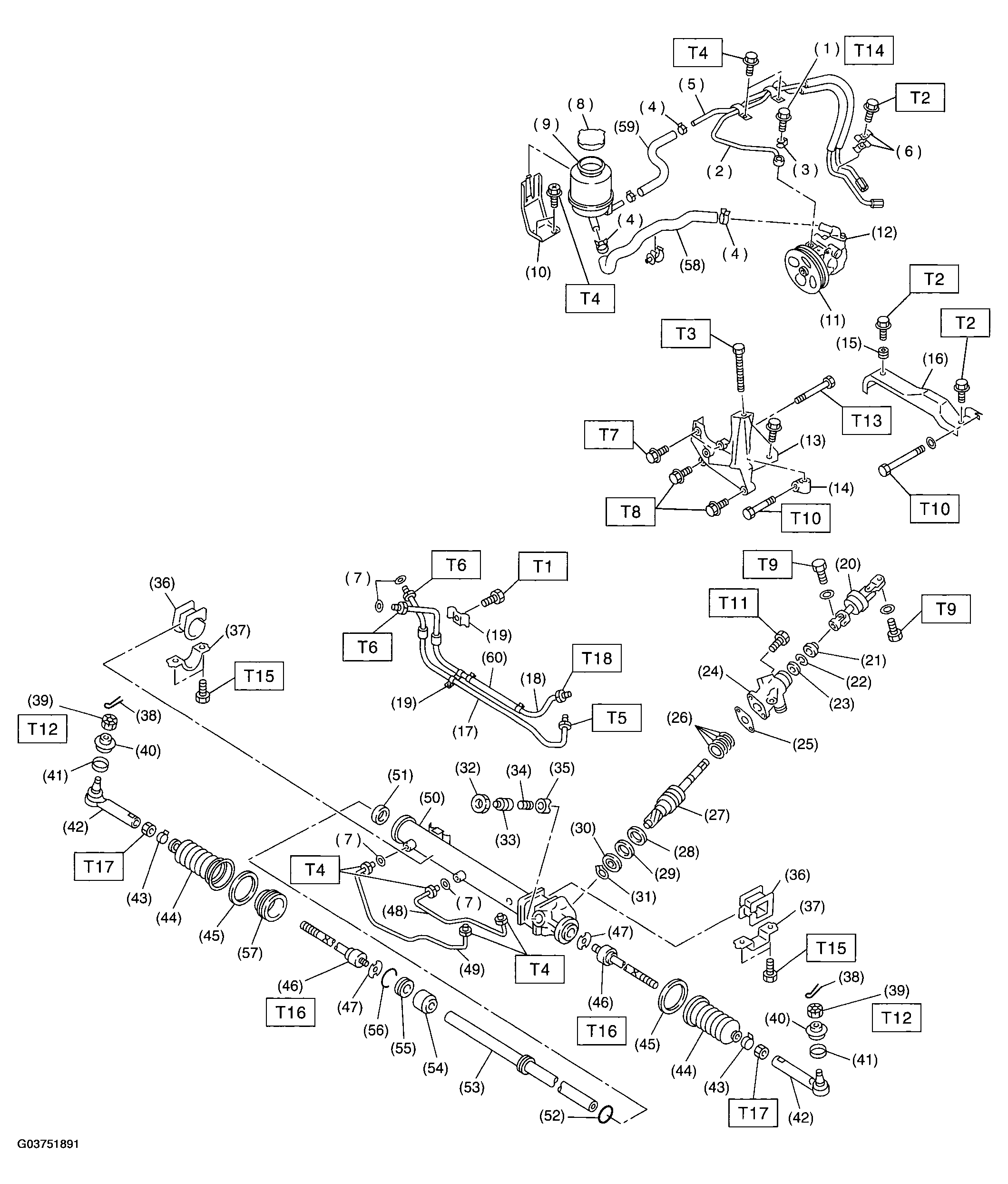

Fig 1: Exploded View Of Power Assisted System (Turbo Model) (1 Of 2)
G03751891Courtesy of SUBARU OF AMERICA, INC.

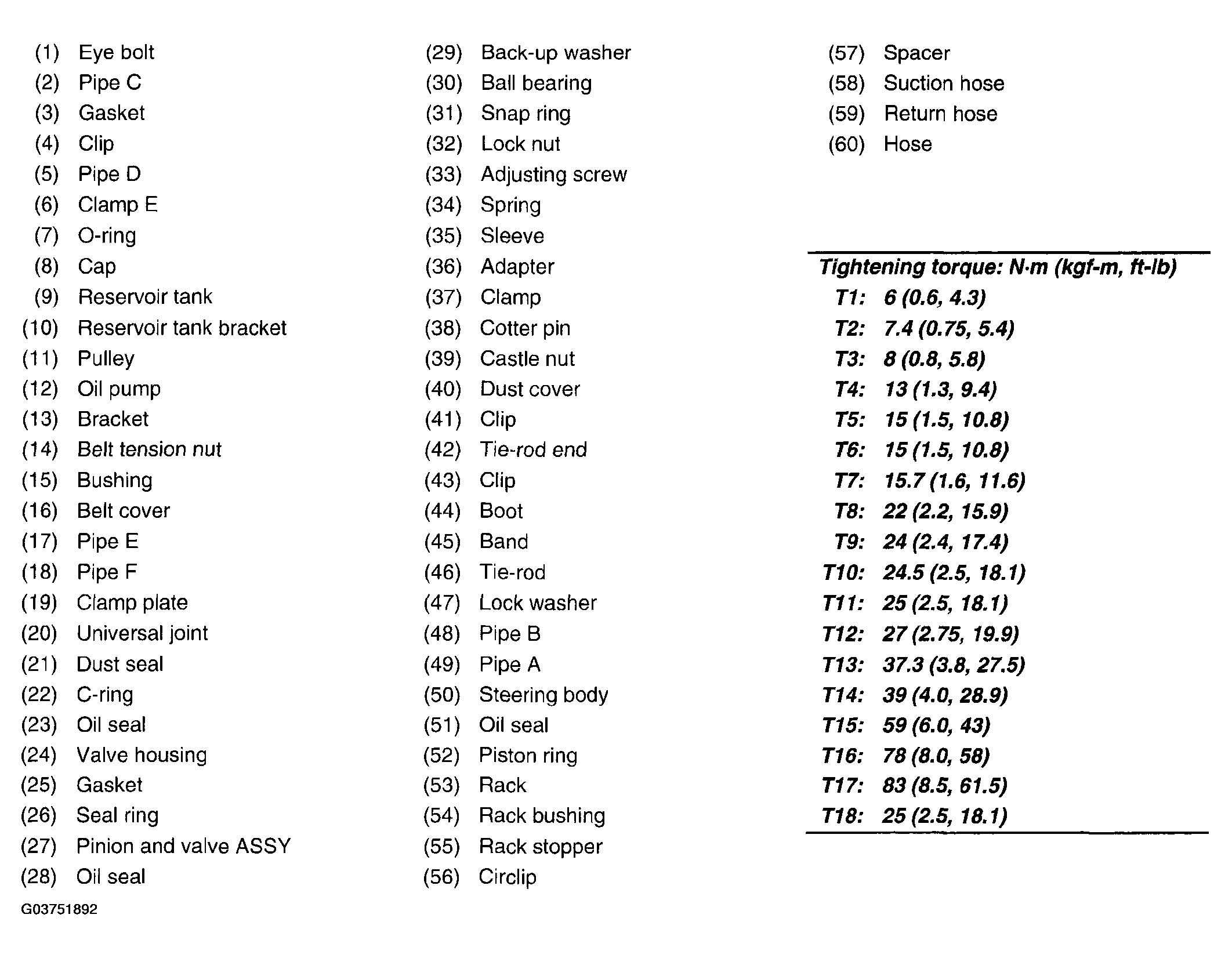

Fig 2: Exploded View Of Power Assisted System With Torque Specifications (Turbo Model) (2 Of 2)
G03751892Courtesy of SUBARU OF AMERICA, INC.
