Electrical Components Location: Location: Engine: Sensor

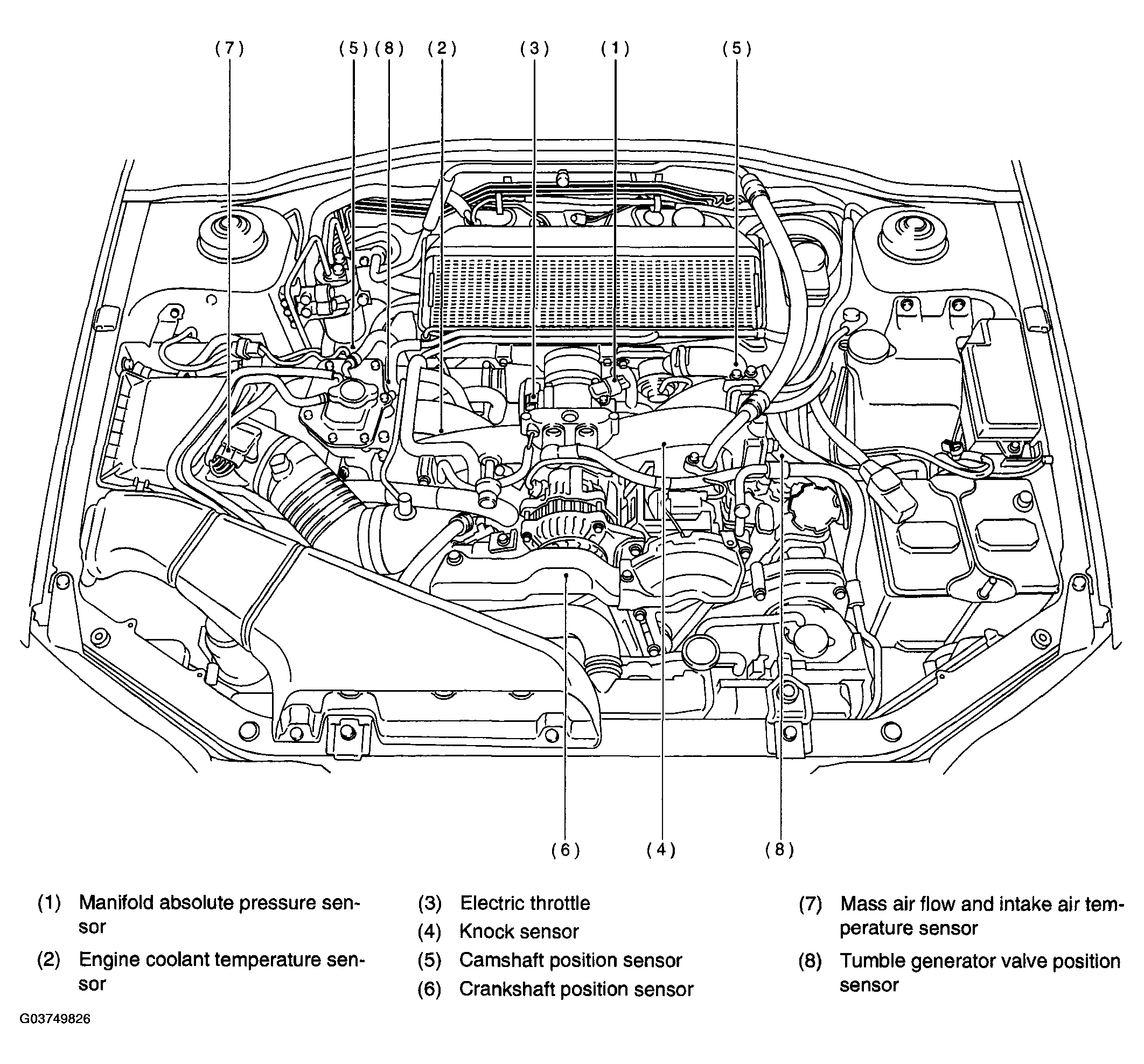

Fig 1: Identifying Sensors Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

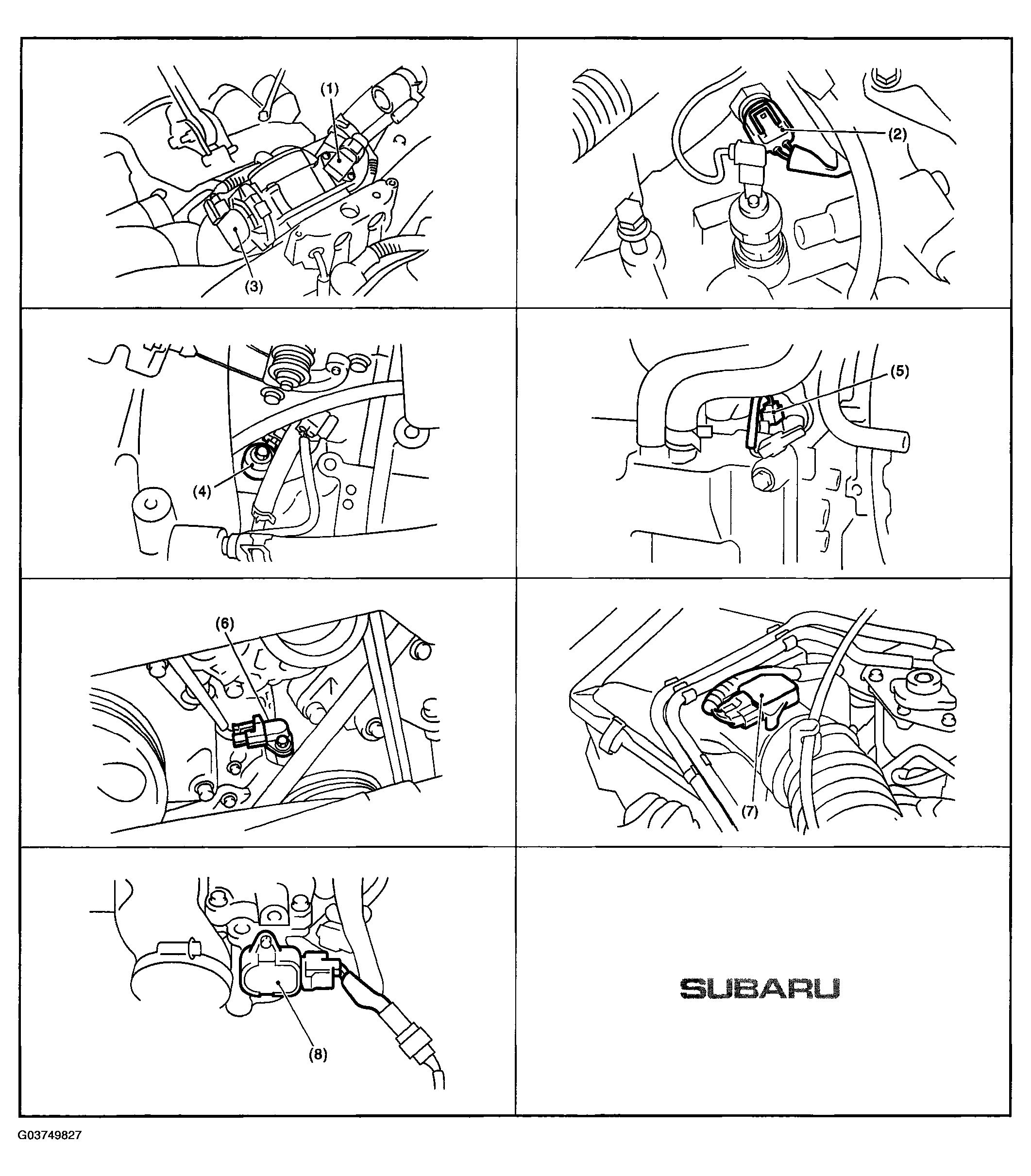

Fig 2: Identifying Sensors Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

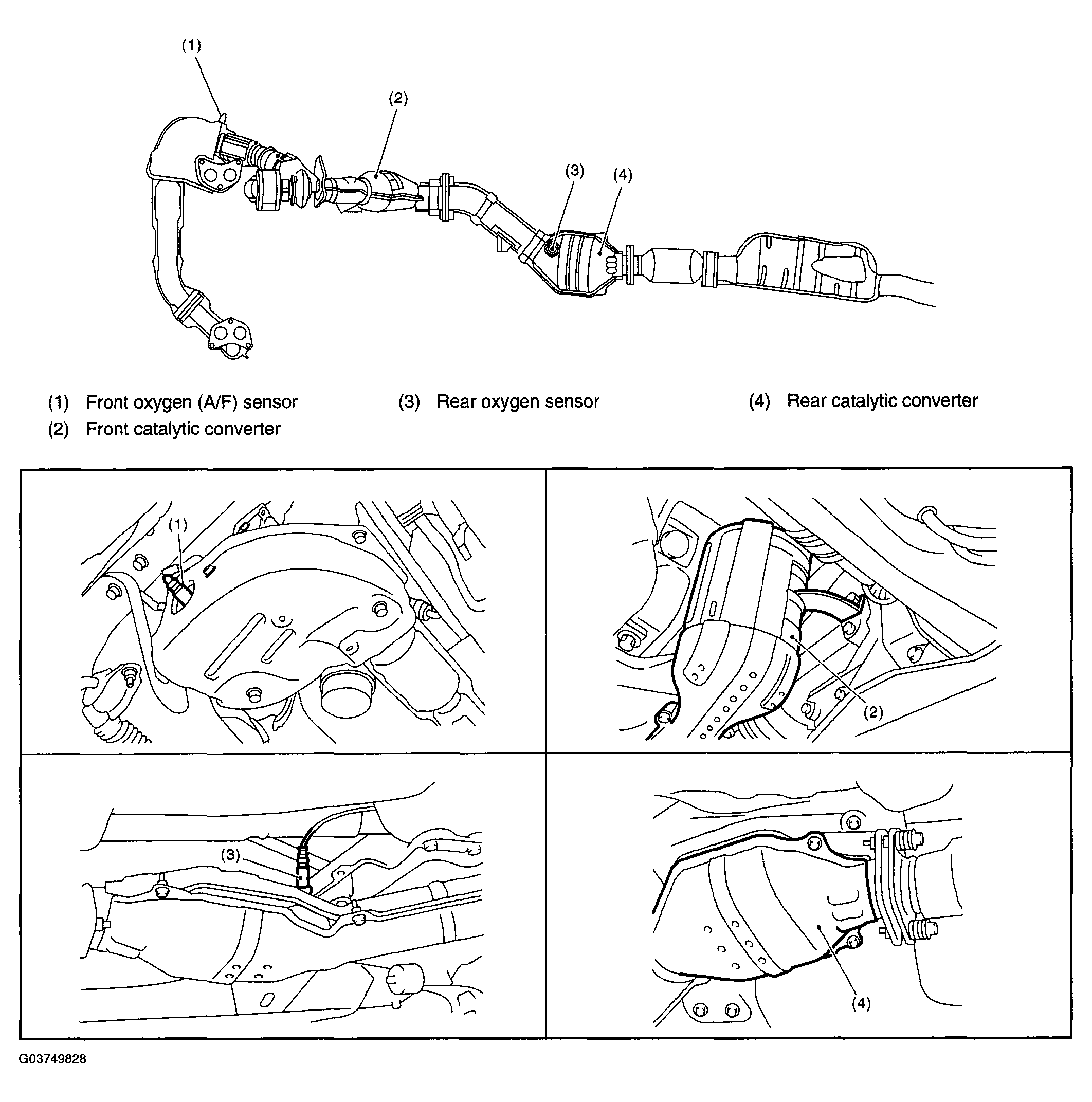

Fig 3: Locating Exhaust System Components

Courtesy of SUBARU OF AMERICA, INC.

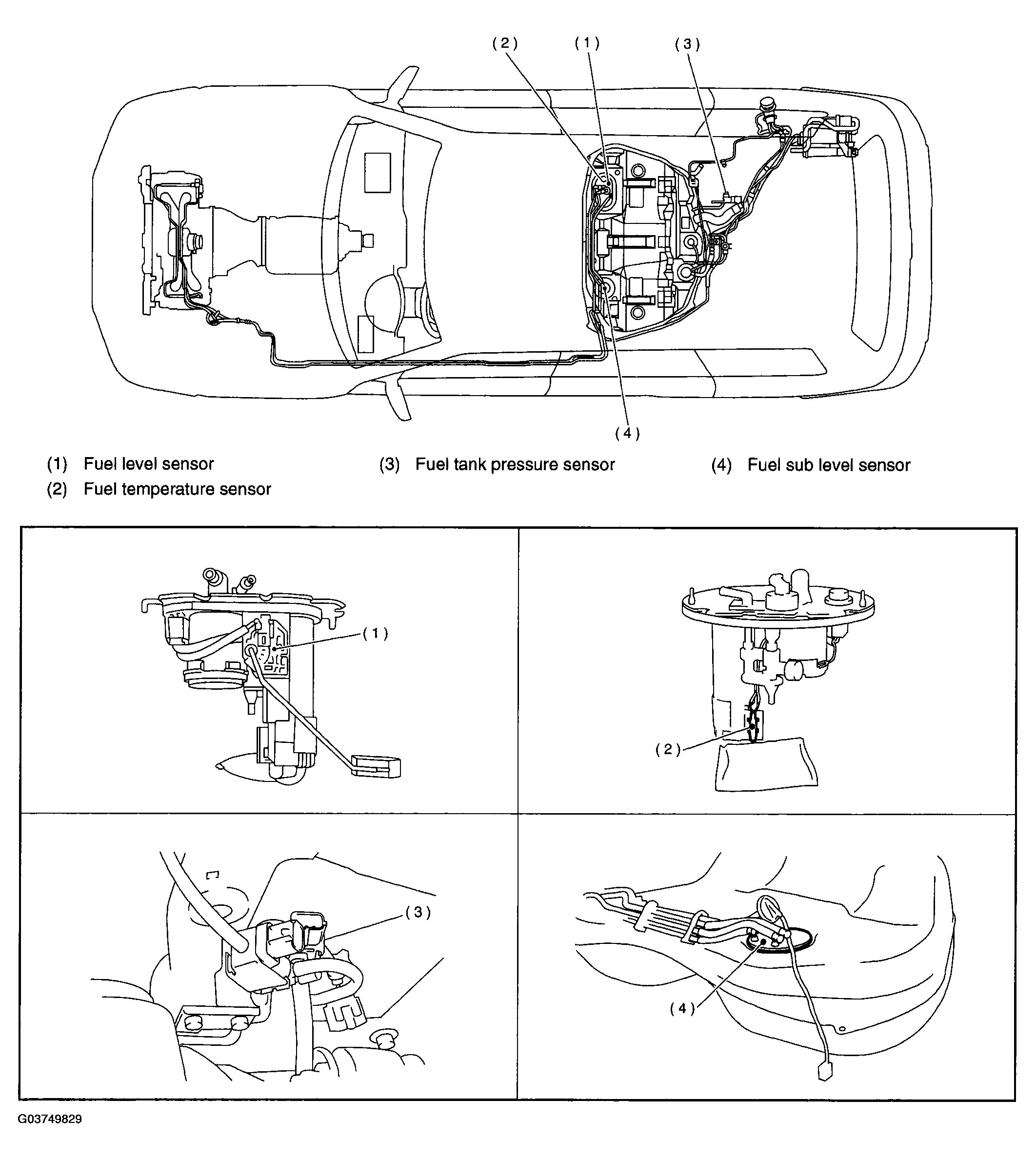

Fig 4: Locating Fuel System Components

Courtesy of SUBARU OF AMERICA, INC.
