LH Side

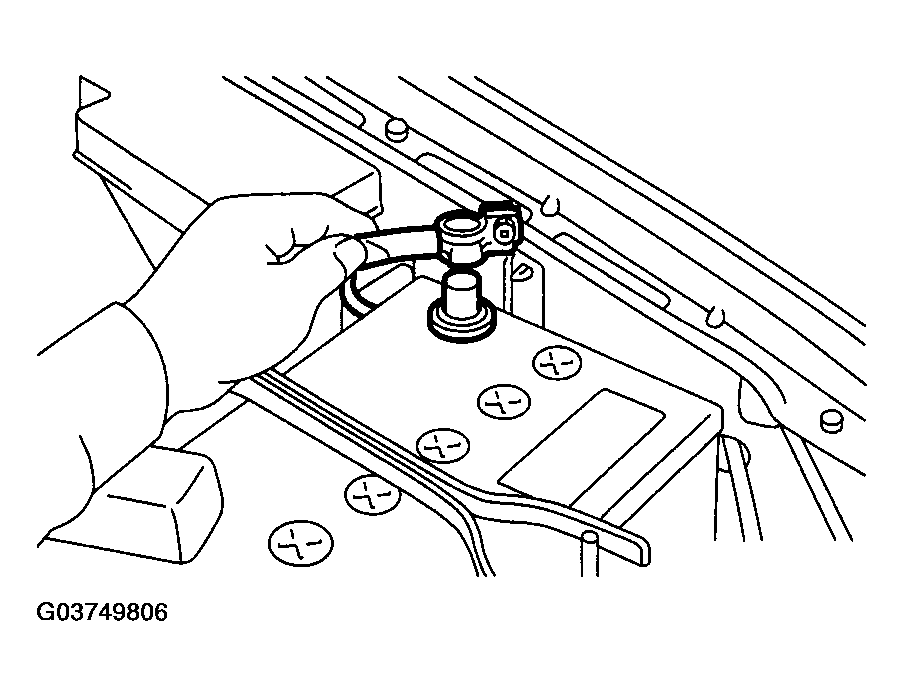

Disconnect the battery cables, and then remove the battery and battery carrier.

Fig 1: Disconnecting Battery Cables
Courtesy of SUBARU OF AMERICA, INC.

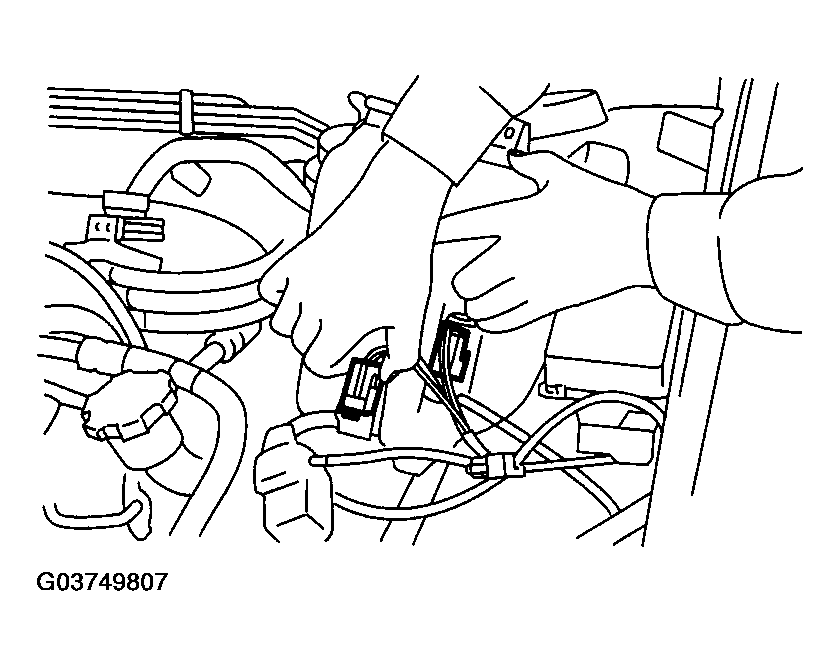

Disconnect the washer motor connector.

Fig 2: Disconnecting Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

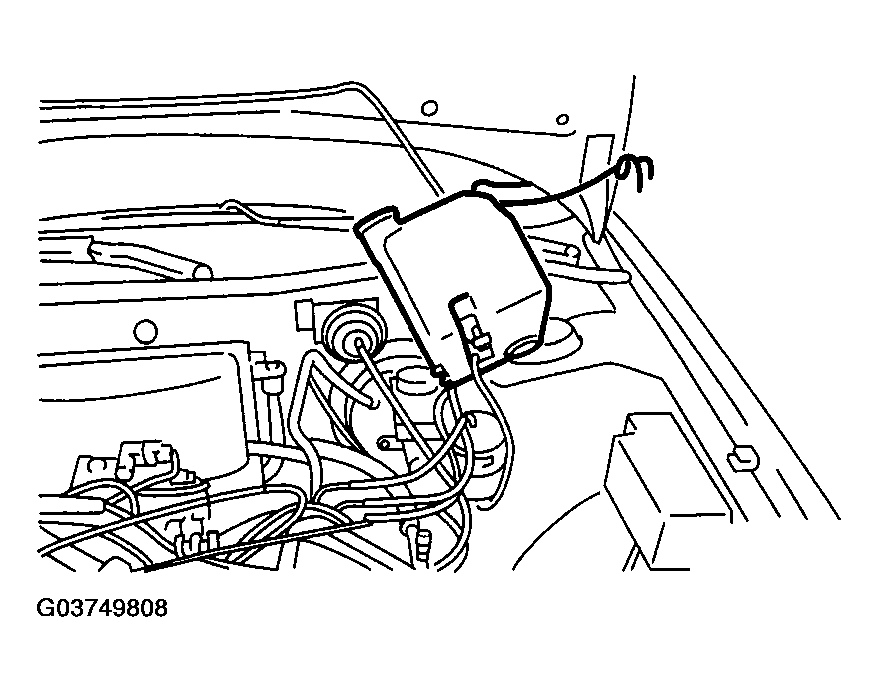

Disconnect the rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Remove the two bolts which hold washer tank, then take the tank away from working area.

Fig 3: Removing Rear Window Glass Washer Hose
Courtesy of SUBARU OF AMERICA, INC.

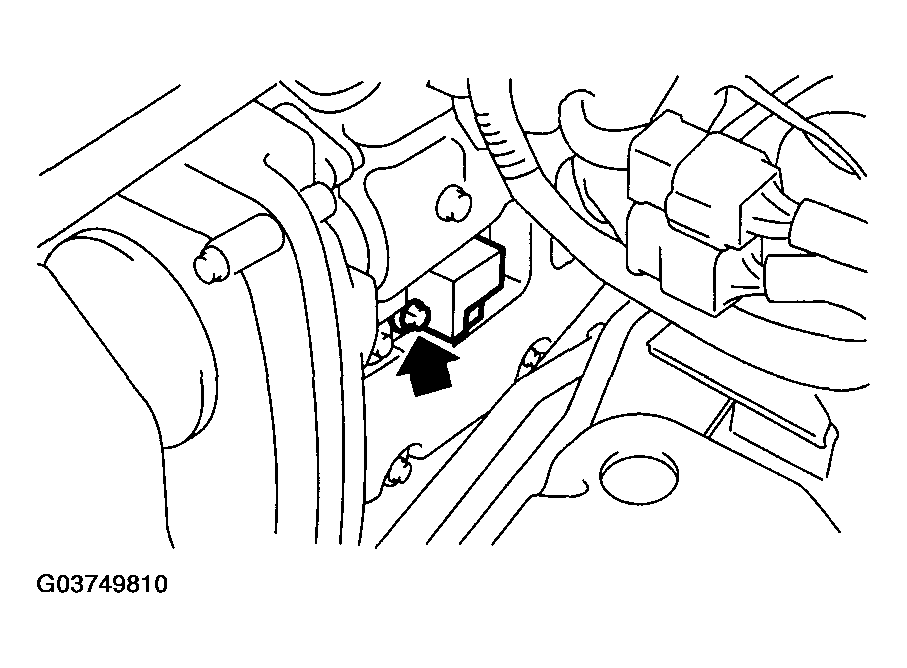

Disconnect the connector from ignition coil.

Fig 4: Disconnecting Ignition Coil Connector
Courtesy of SUBARU OF AMERICA, INC.

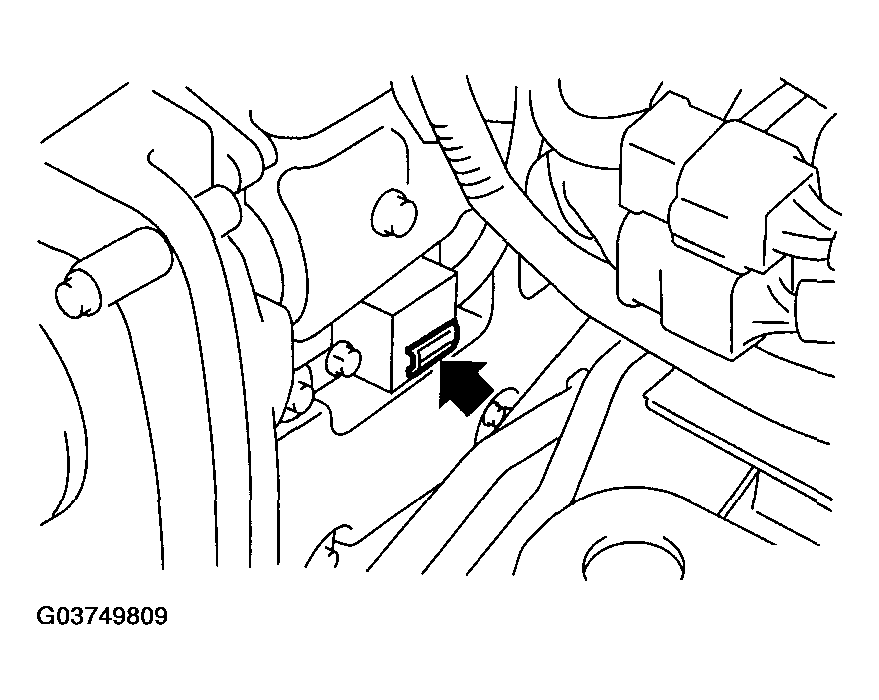

Remove the ignition coil.

Fig 5: Removing Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.

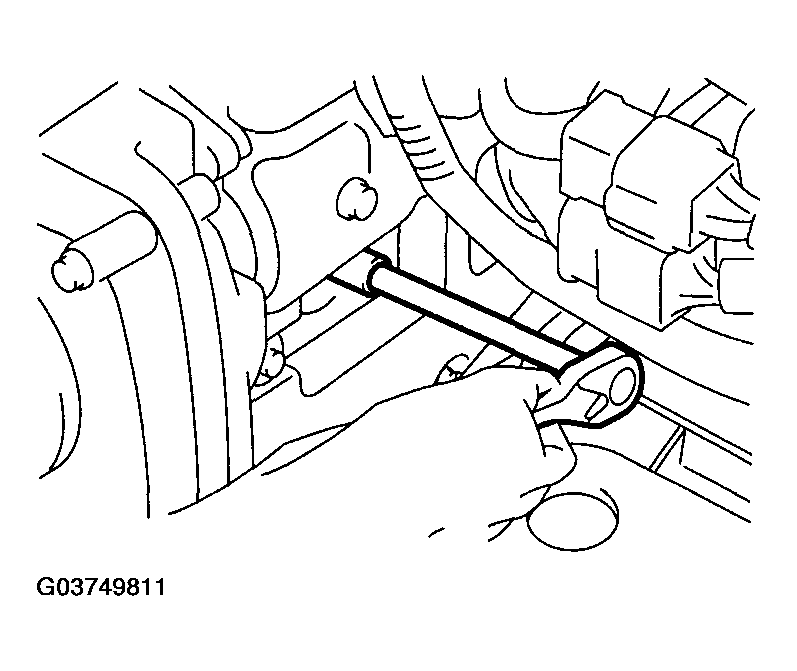

Remove the spark plugs with the spark plug sockets.

Fig 6: Removing Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
