Knock Sensor: Removal

  1. Disconnect the ground cable from battery.

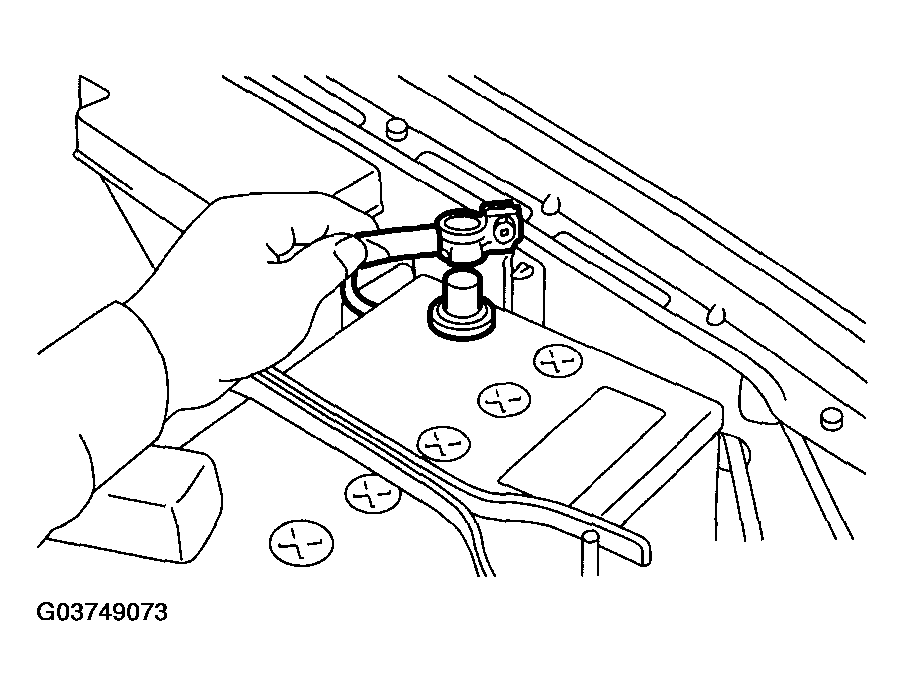

    Fig 1: Disconnecting Ground Cable From Battery
    G03749073Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intercooler. < Ref. to REMOVAL . >
  3. Disconnect the knock sensor connector.
    Fig 2: Disconnecting Knock Sensor Connector
    G03749074Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the knock sensor from the cylinder block.
    Fig 3: Removing Knock Sensor From The Cylinder Block
    G03749075Courtesy of SUBARU OF AMERICA, INC.
