Intake Manifold: Removal

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
Open the fuel filler lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover.
Drain the engine coolant about 3.0 l (3.2 US qt, 2.6 lmp qt).

Fig 2: Removing Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner upper cover and air intake boot. < Ref. to REMOVAL , Air Cleaner . >
Remove the air cleaner element.
Remove the intercooler. < Ref. to REMOVAL . >
Remove the coolant filler tank. < Ref. to REMOVAL , Coolant Filler Tank . >
Remove the power steering pump.
1. Remove the front side V-belt. < Ref. to REMOVAL , V-belt . >

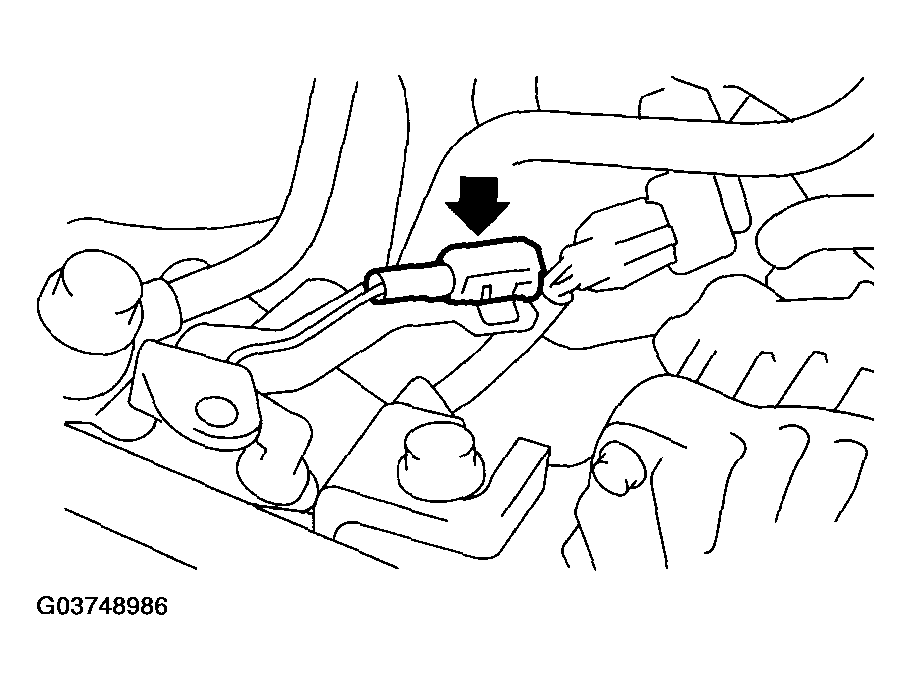

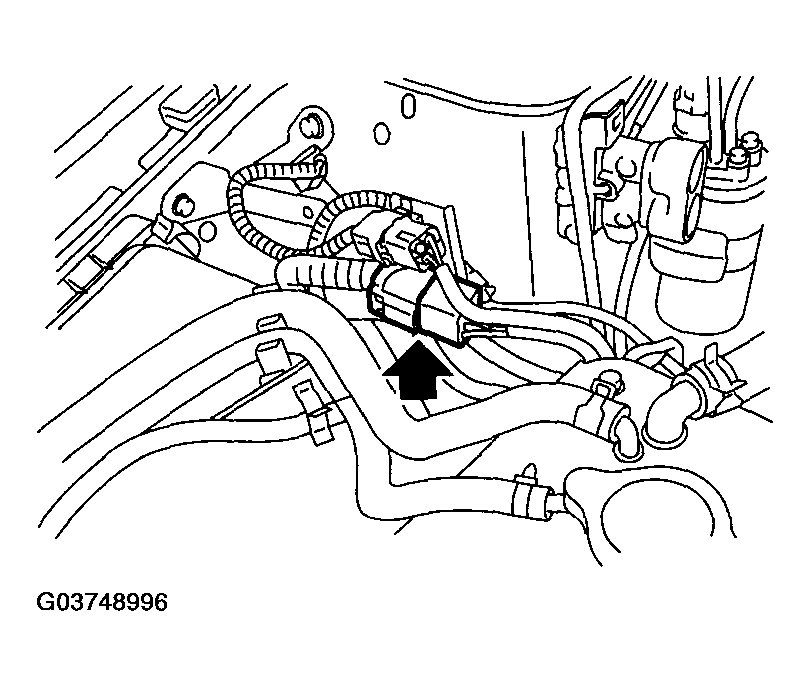

2. Disconnect the power steering switch connector.

  Fig 3: Disconnecting Power Steering Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts which secure the power steering pipe brackets to the intake manifold.
  NOTE: Do not disconnect the power steering hose.

  Fig 4: Removing Bolts And Power Steering Pipe Brackets To Intake Manifold
  Courtesy of SUBARU OF AMERICA, INC.

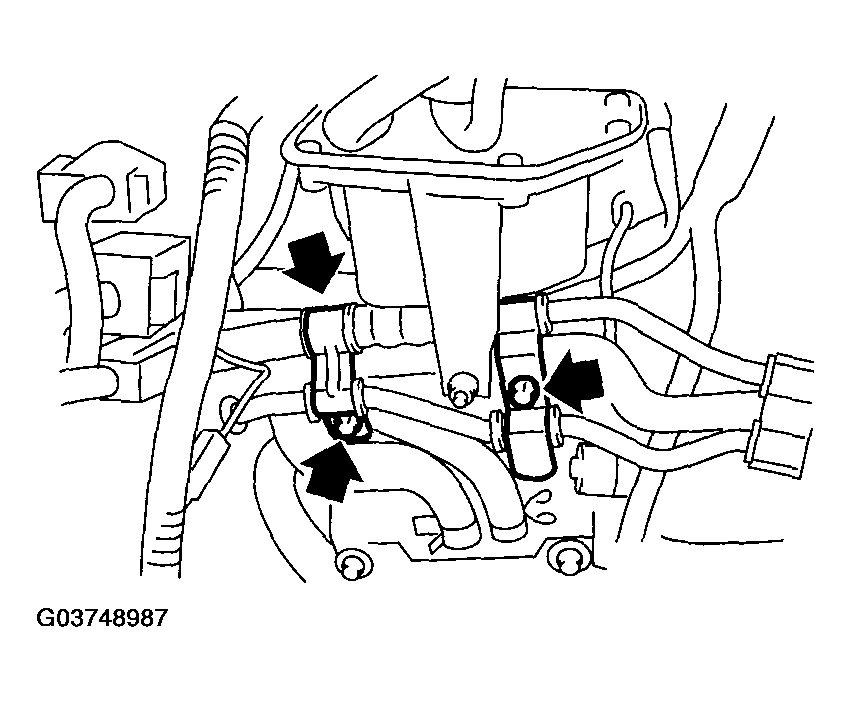

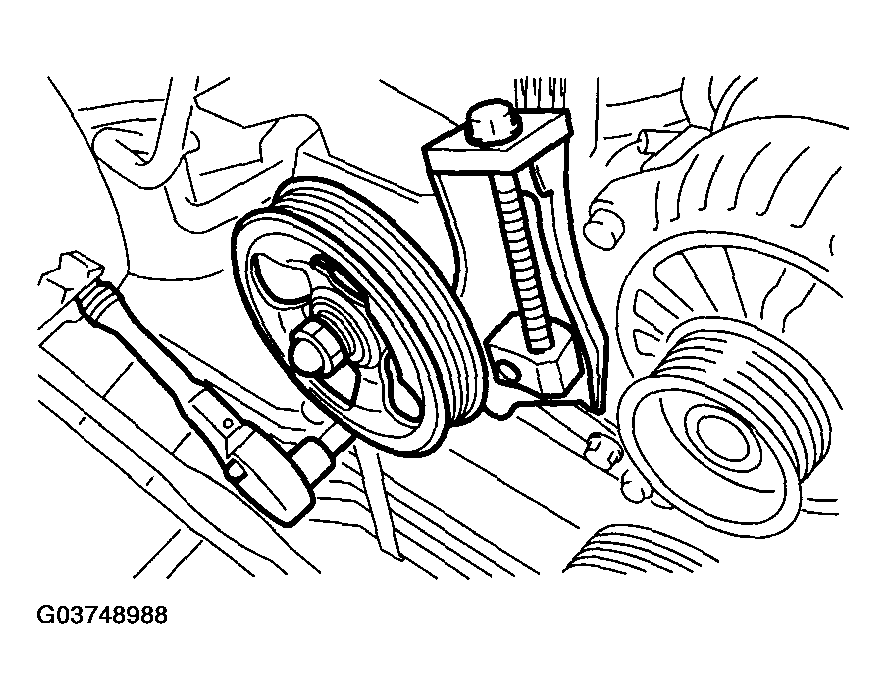

4. Remove the bolts which secure the power steering pump bracket.

  Fig 5: Removing Bolts And Power Steering Pump Bracket
  Courtesy of SUBARU OF AMERICA, INC.

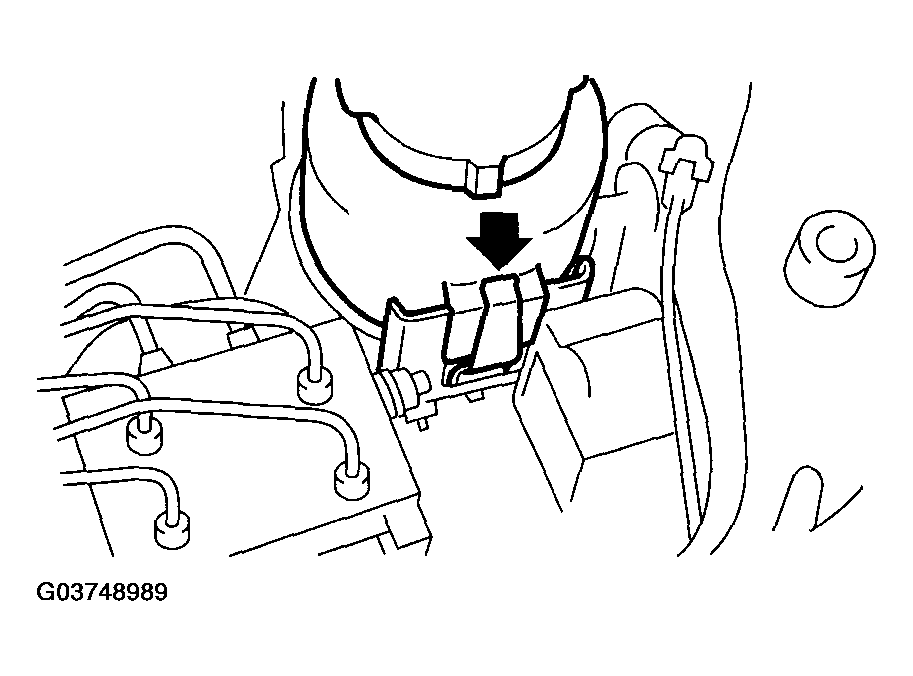

5. Remove the power steering tank from the bracket by pulling it upward.

  Fig 6: Removing Power Steering Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.

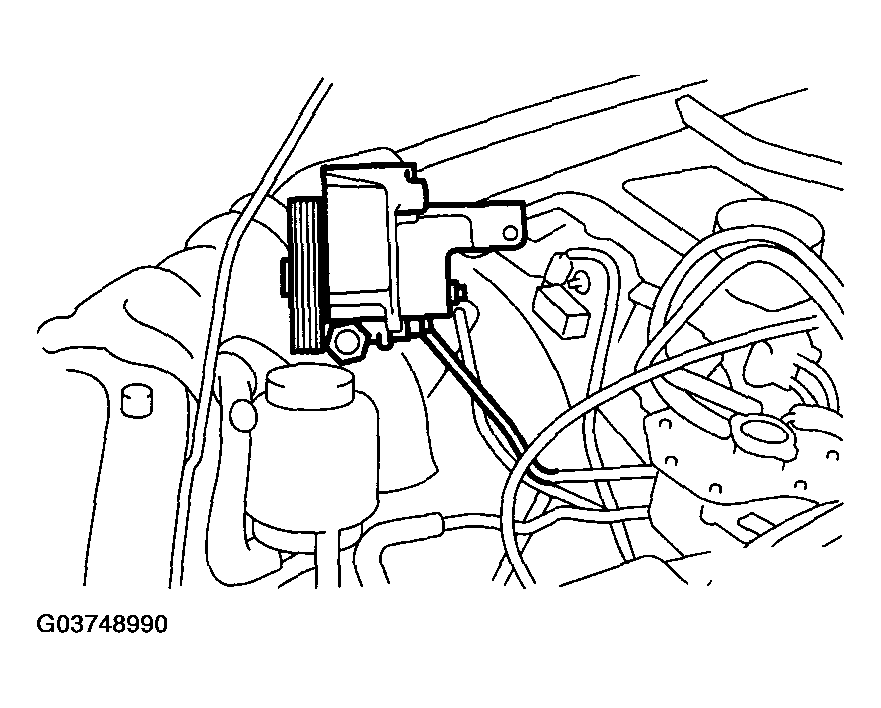

6. Place the power steering pump on the right side wheel apron.

  Fig 7: Identifying Power Steering Pump On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.

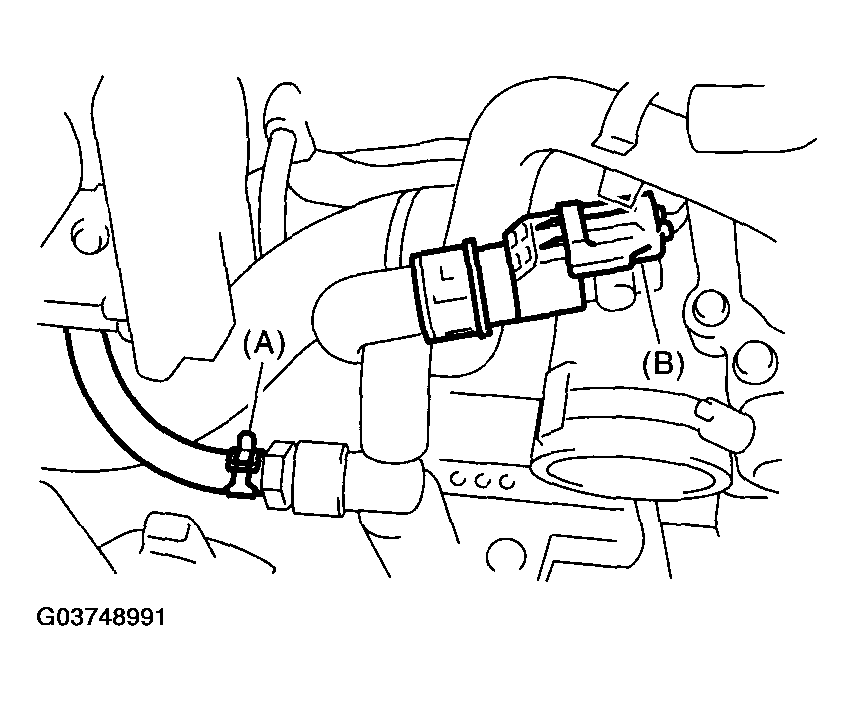

Disconnect the emission hose (A) and connector (B) from the PCV hose assembly.

Fig 8: Disconnecting Emission Hose And Connector From PCV Hose Assembly
Courtesy of SUBARU OF AMERICA, INC.

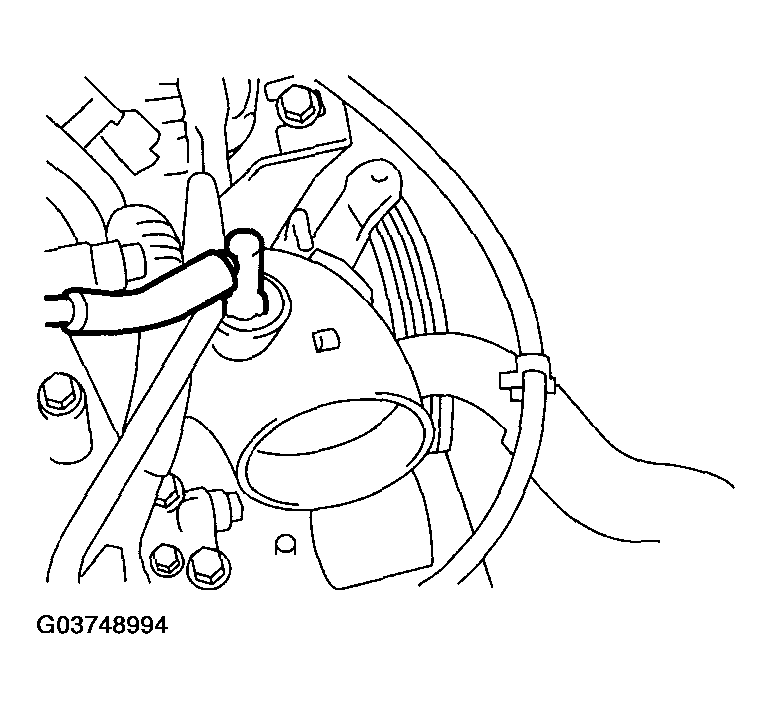

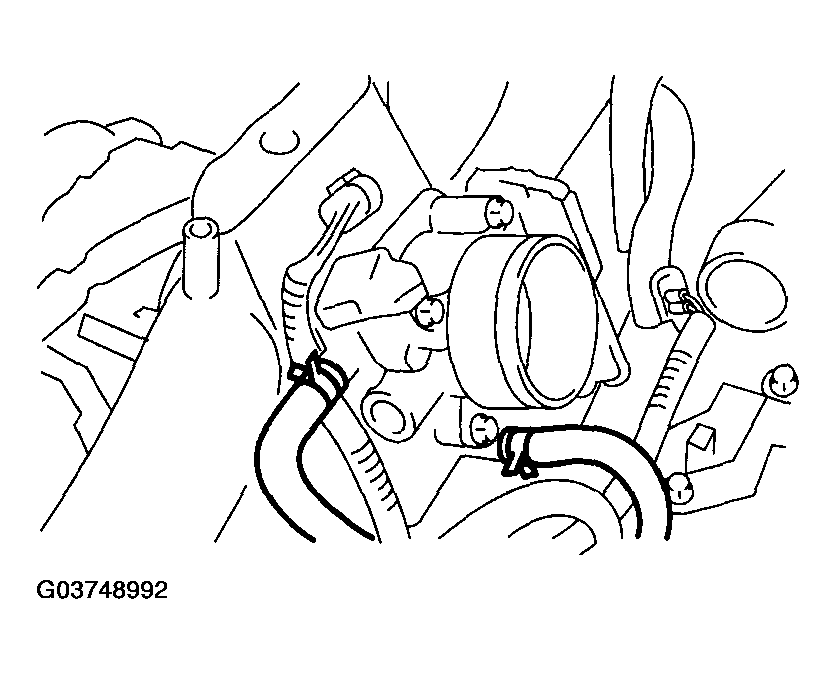

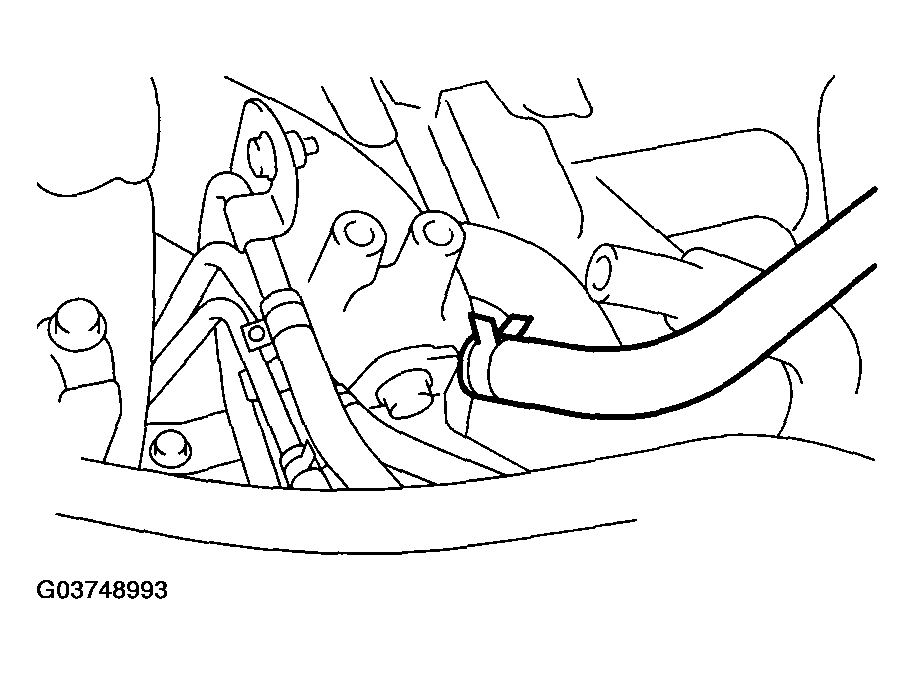

Disconnect the engine coolant hoses from the throttle body.

Fig 9: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake booster hose.

Fig 10: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pressure hose from the intake duct.

Fig 11: Disconnecting Pressure Hose From Intake Duct
Courtesy of SUBARU OF AMERICA, INC.

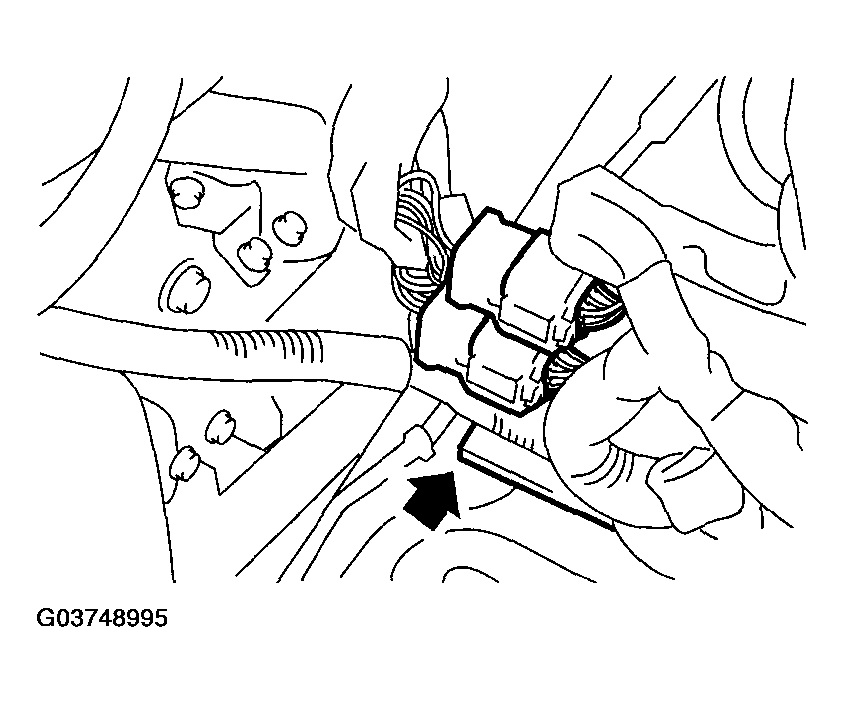

Disconnect the engine harness connectors from the bulkhead harness connectors.

Fig 12: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Sensor
Courtesy of SUBARU OF AMERICA, INC.

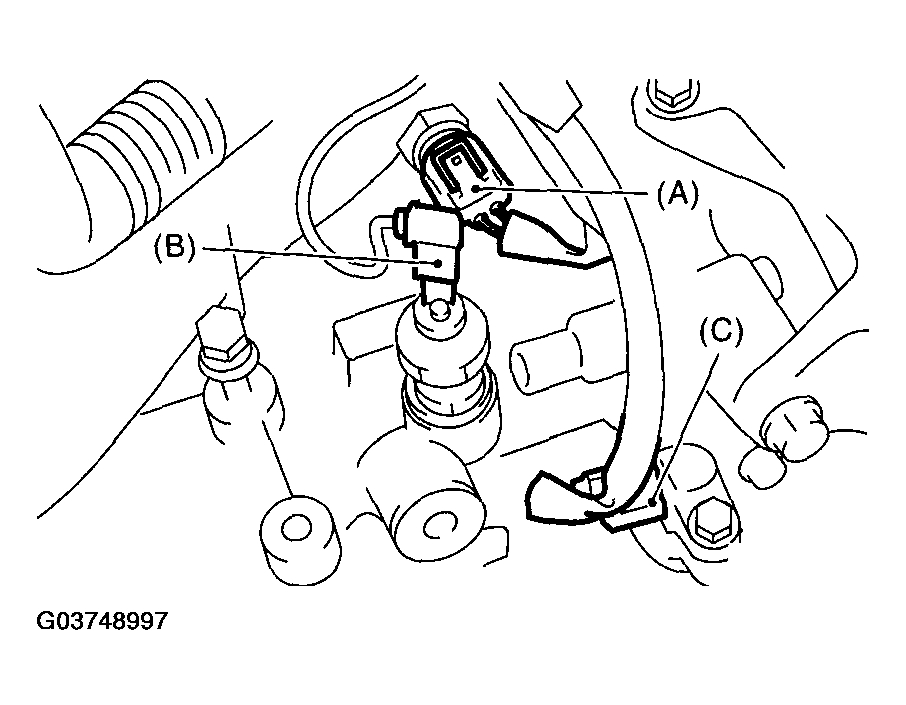

Disconnect the connectors from the engine coolant temperature sensor (A), oil pressure switch (B) and crankshaft position sensor (C).

Fig 14: Disconnecting Connectors From Engine Coolant Temperature Sensor, Oil Pressure Switch And Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

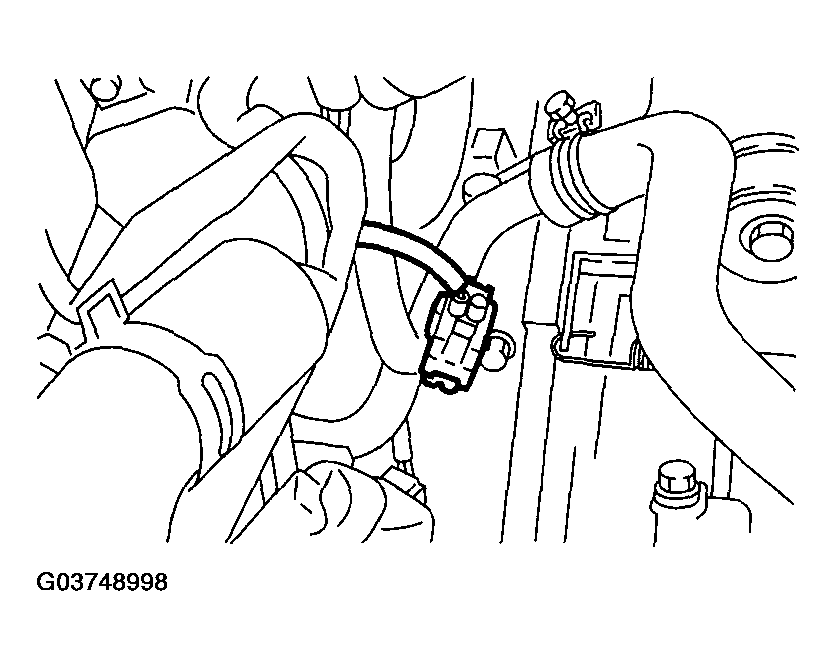

Disconnect the knock sensor connector.

Fig 15: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

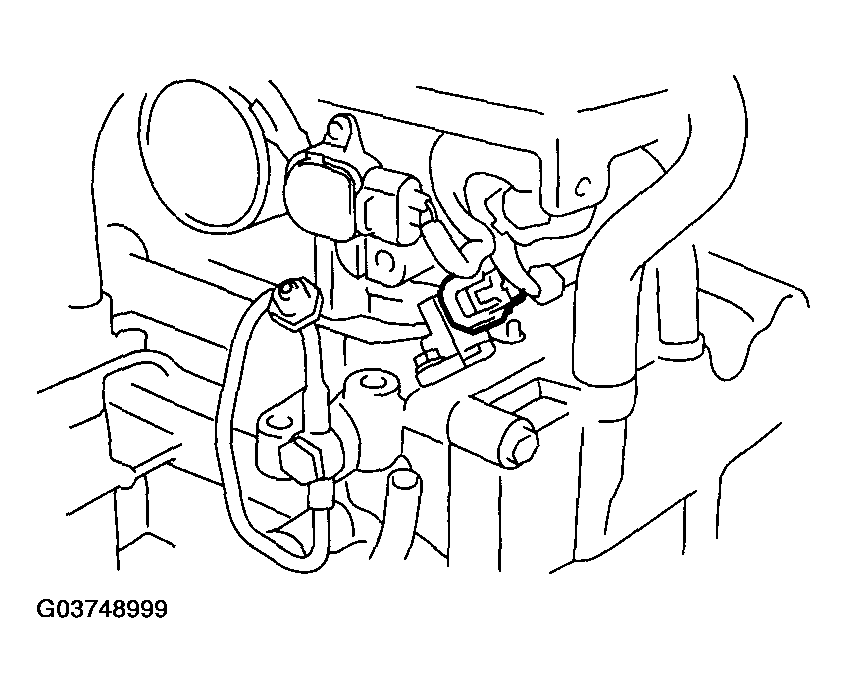

Disconnect the connector from the camshaft position sensor.

Fig 16: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the ignition coil.

Fig 17: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.

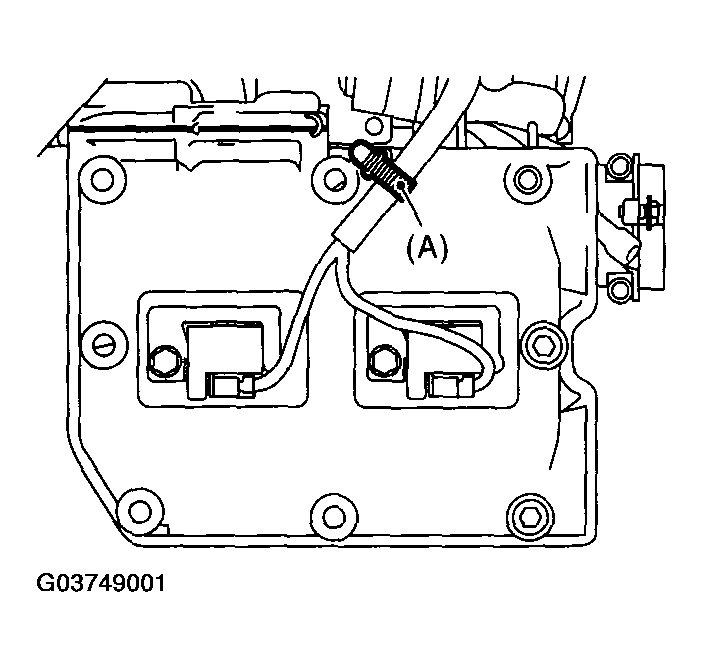

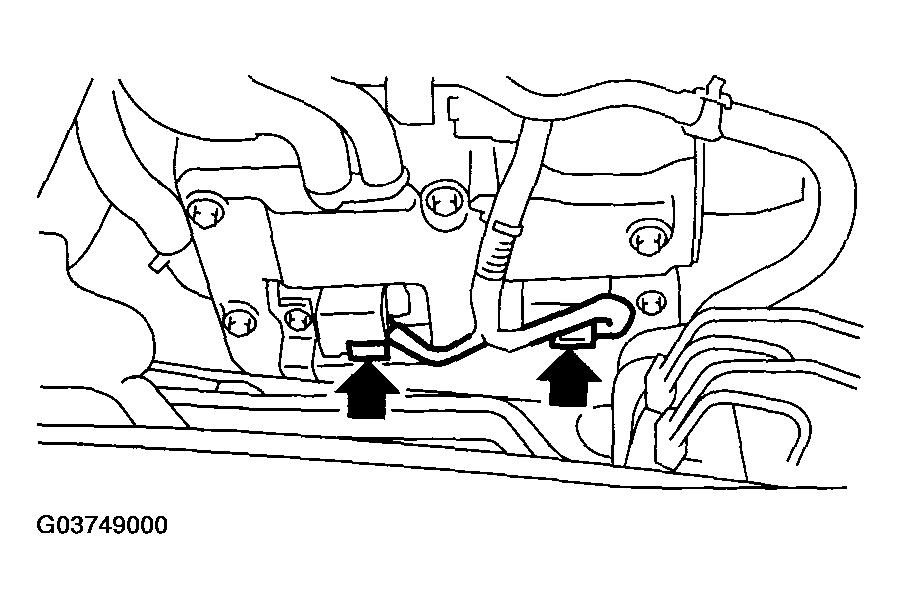

Disconnect the engine harness fixed by clip (A) from the bracket.

Fig 18: Disconnecting Engine Harness Fixed By Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.

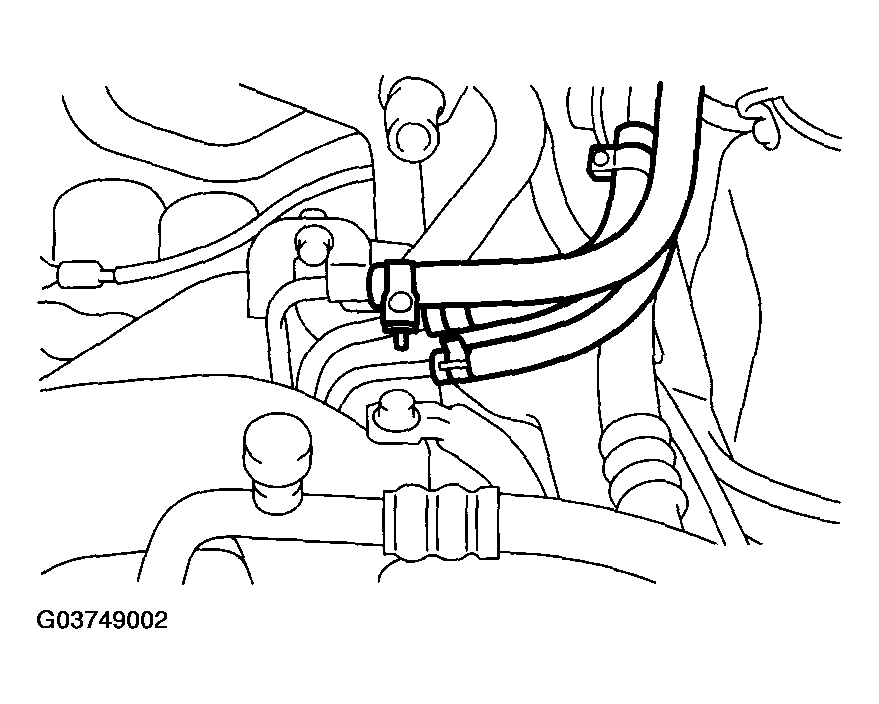

Disconnect the fuel delivery hose, return hose and evaporation hose.
CAUTION:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.

  Fig 19: Disconnecting Fuel Delivery Hose, Return Hose And Evaporation Hose
  Courtesy of SUBARU OF AMERICA, INC.

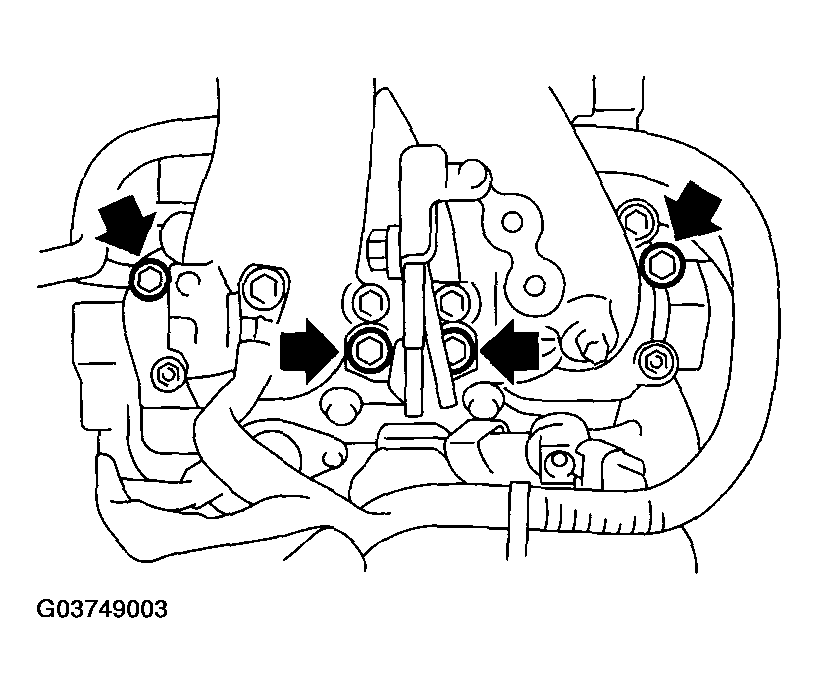

Remove the bolts which secure the intake manifold to the cylinder heads.

Fig 20: Removing Bolts In Intake Manifold To Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
