Fuel Injection (Fuel Systems) (H4DOTC): General Description: Preparation Tool

PREPARATION TOOL SPECIFICATION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	24082AA260 (New adopted tool)	CARTRIDGE	Troubleshooting for electrical system.
Fig 2	22771AA030	SELECT MONITOR KIT	Troubleshooting for electrical systems.

Fig 1: Identifying Special Tool ST24082AA260

Courtesy of SUBARU OF AMERICA, INC.

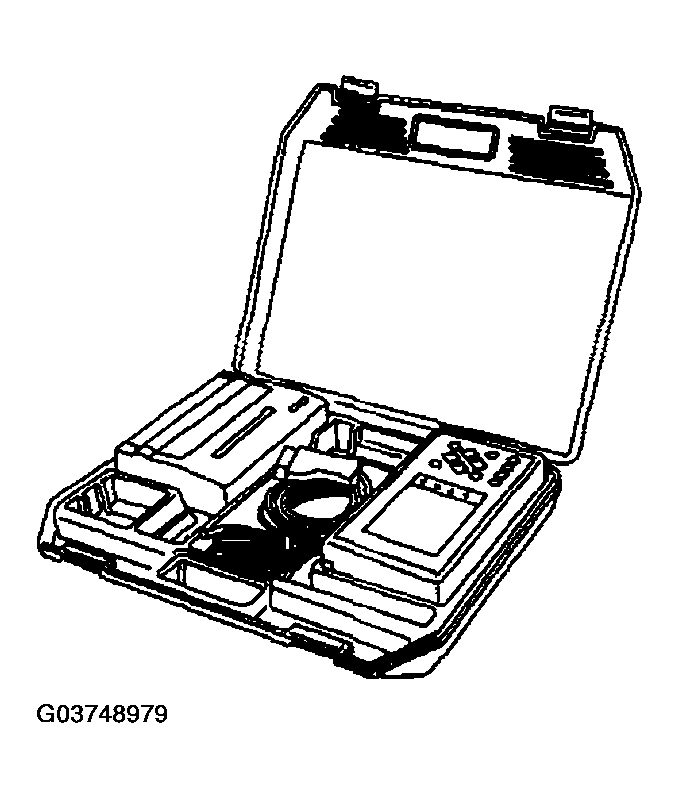

Fig 2: Identifying Special Tool ST22771AA030

Courtesy of SUBARU OF AMERICA, INC.
