General Description
>>
Components With Torque Specifications
>>
Fuel Line
Fuel Line

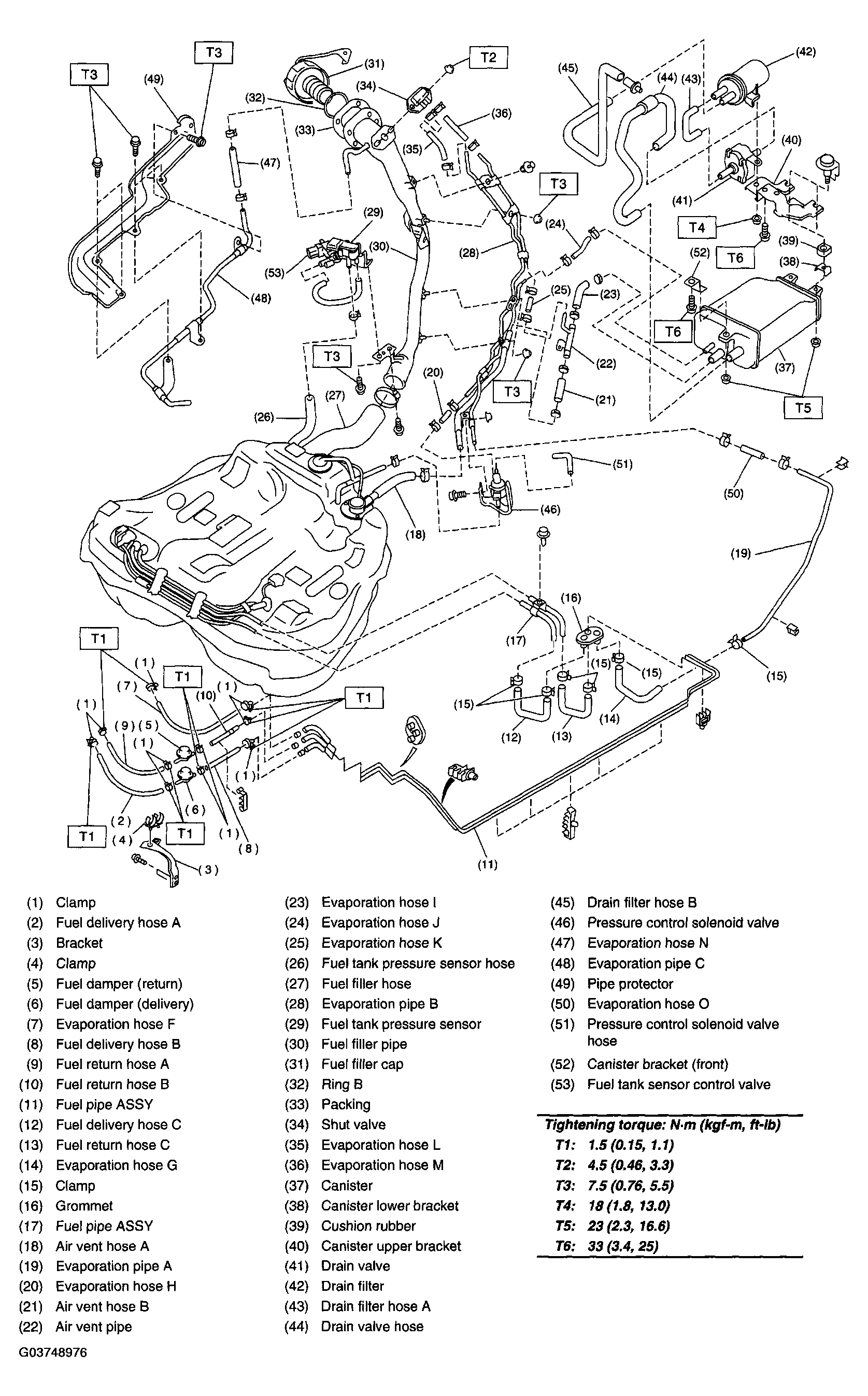

Fig 1: Exploded View Of Fuel Lines With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
