Fuel Tank: Removal

Set vehicle on the lift.
Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
Drain fuel from fuel tank. < Ref. to , DRAINING FUEL , OPERATION, Fuel. >

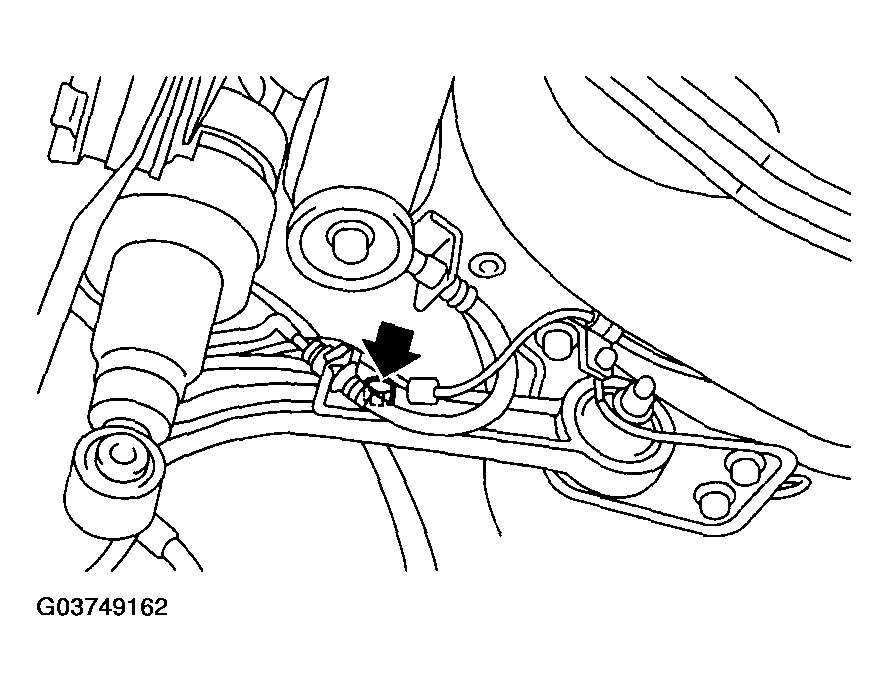

Remove holder clip which secures fuel tank cord on bracket.

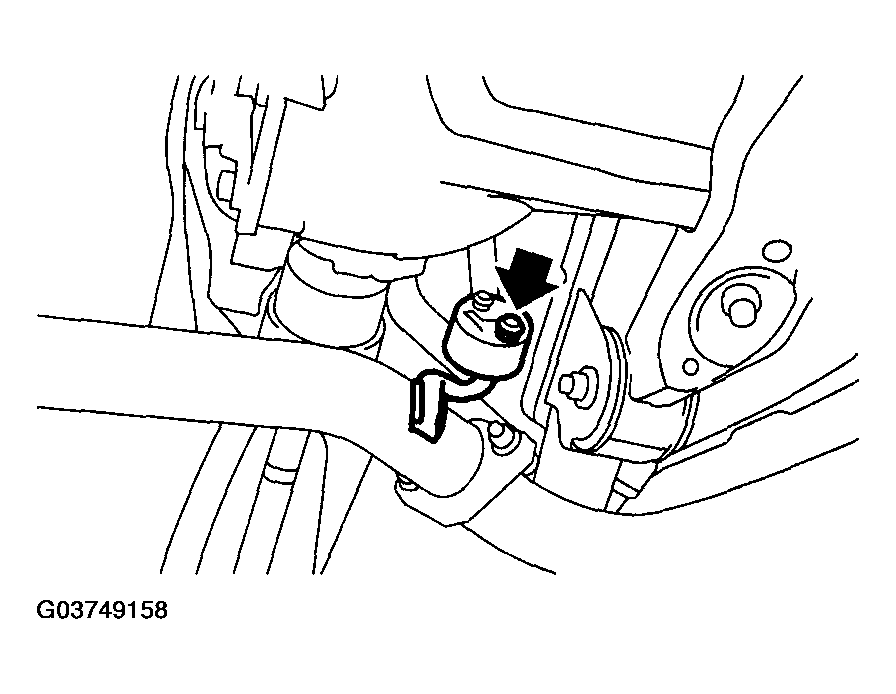

Fig 1: Removing Holder Clip Which Secures Fuel Tank Cord On Bracket
Courtesy of SUBARU OF AMERICA, INC.

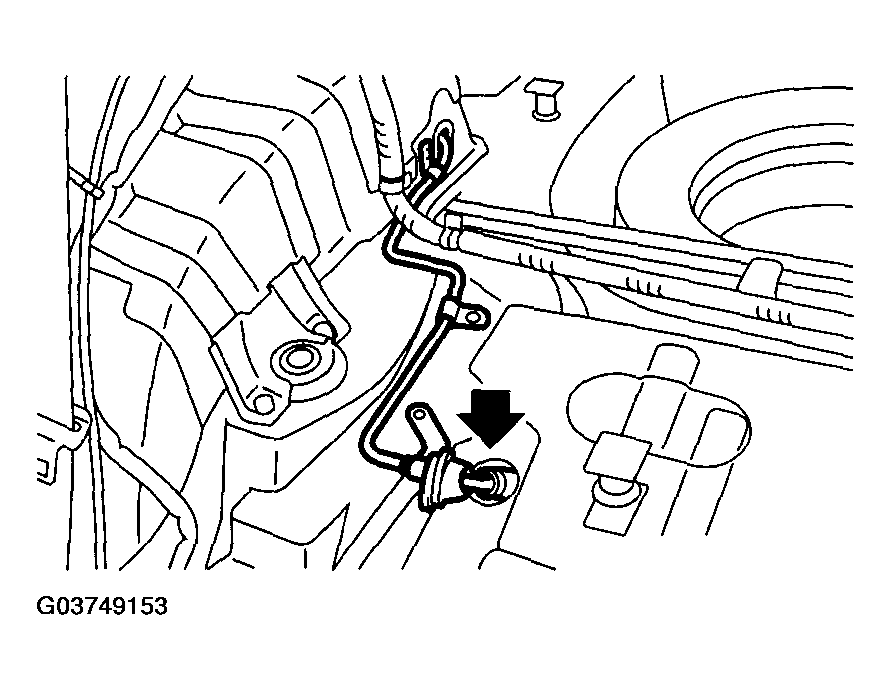

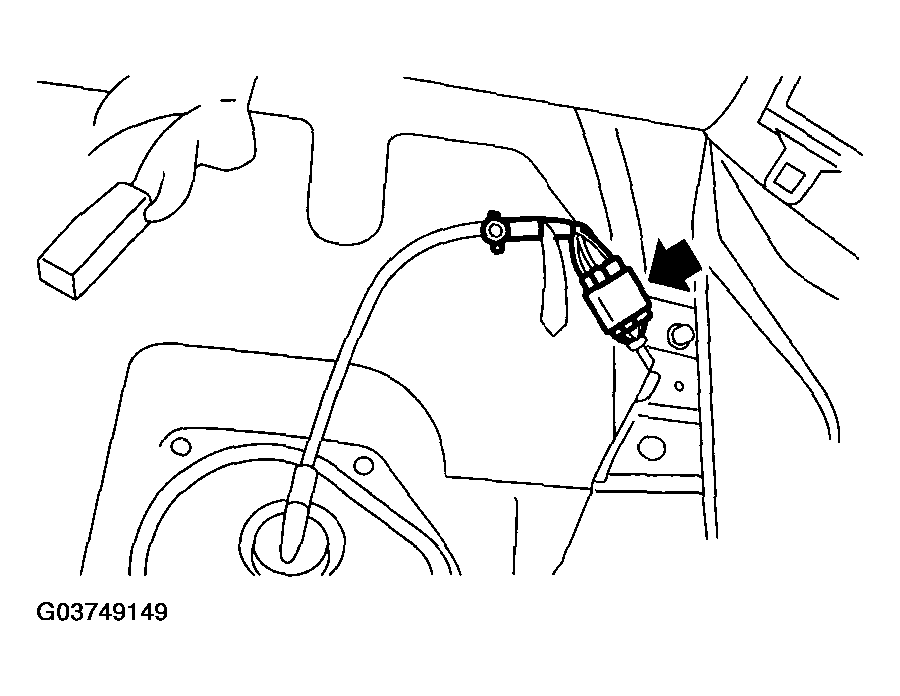

Disconnect connector of fuel tank cord to rear harness.

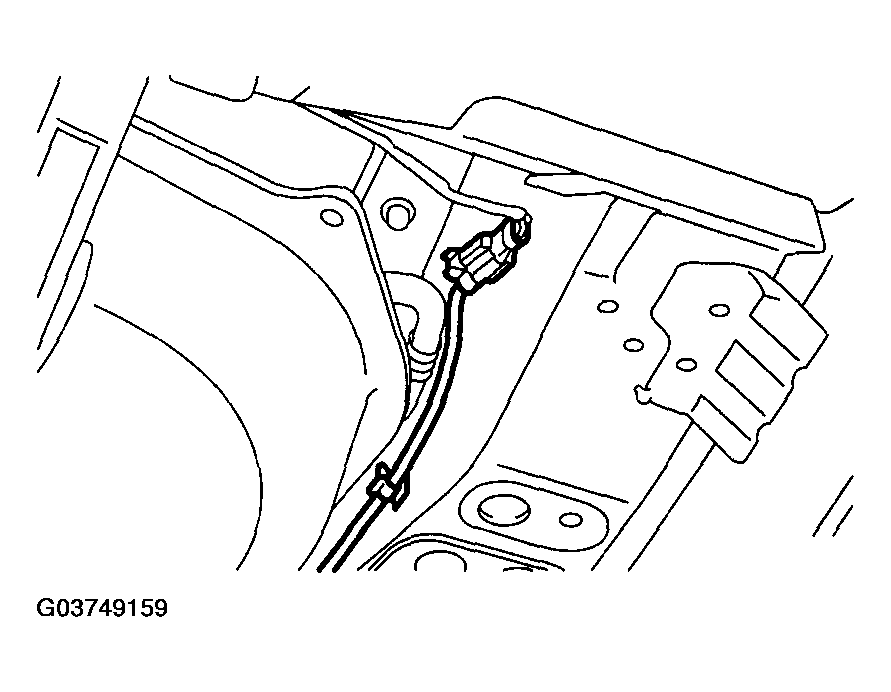

Fig 2: Disconnecting Connector Of Fuel Tank Cord To Rear Harness
Courtesy of SUBARU OF AMERICA, INC.
Push grommet which holds fuel tank cord on service hole cover into body side.

Fig 3: Pushing Grommet Which Holds Fuel Tank Cord On Service Hole Cover Into Body Side
Courtesy of SUBARU OF AMERICA, INC.

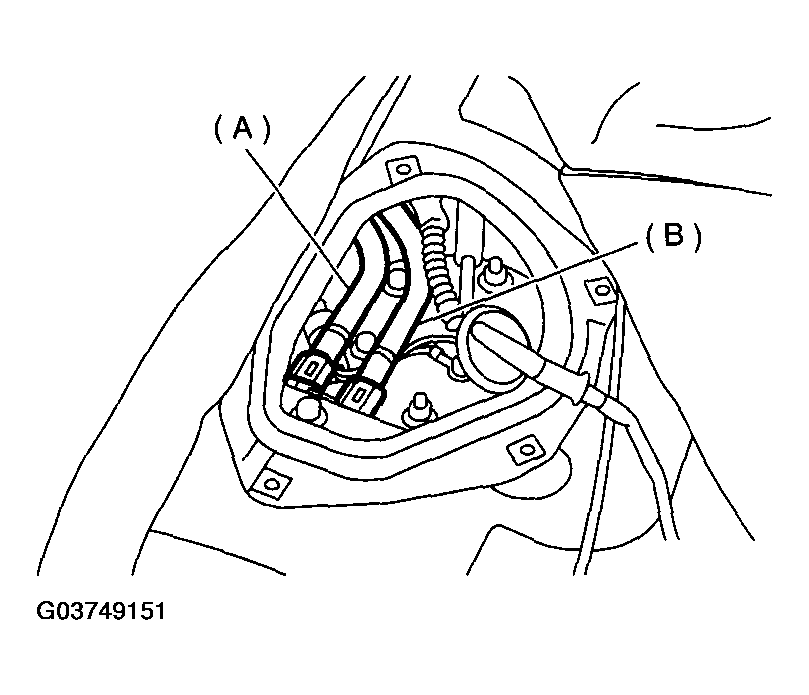

Separate quick connector of fuel delivery (A) and return hose (B).< Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation Lines. >

Fig 4: Identifying Quick Connector Of Fuel Delivery And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove parking brake cable.
1. Remove console box. REMOVAL , Console Box . >
2. Remove parking brake bracket and disconnect parking brake cable from equalizer. < Ref. to REMOVAL , Parking Brake Cable . >
Remove rear pillar trim.
< Ref. to REMOVAL , Rear Pillar Trim . >

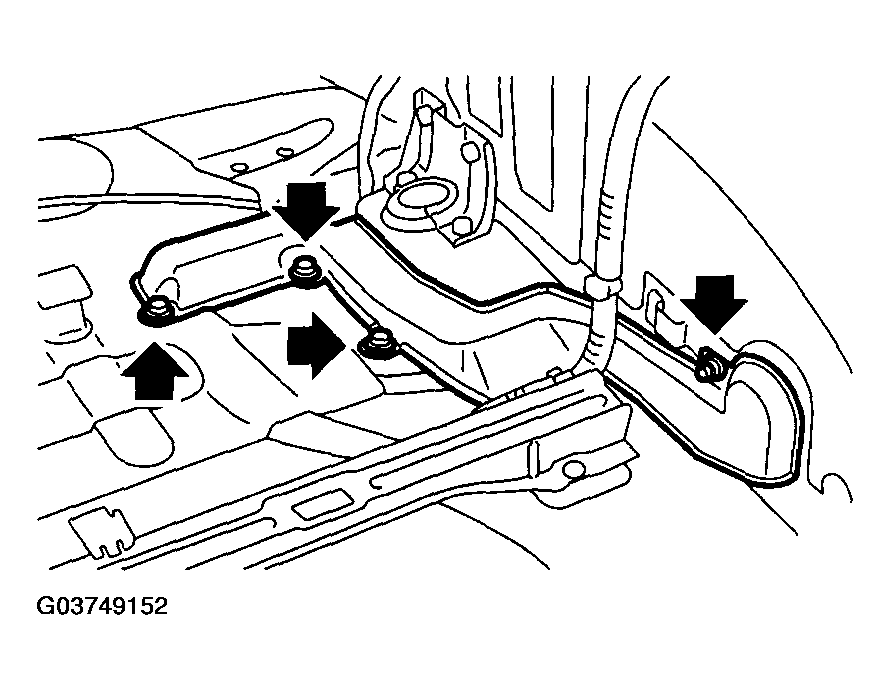

Remove pipe protector.

Fig 5: Removing Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Separate quick connector of evaporation pipe. < Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation Lines. >

Fig 6: Identifying Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove wheel nuts from rear wheels.
Lift-up the vehicle.
Remove rear wheel.
Remove front side fuel tank cover.

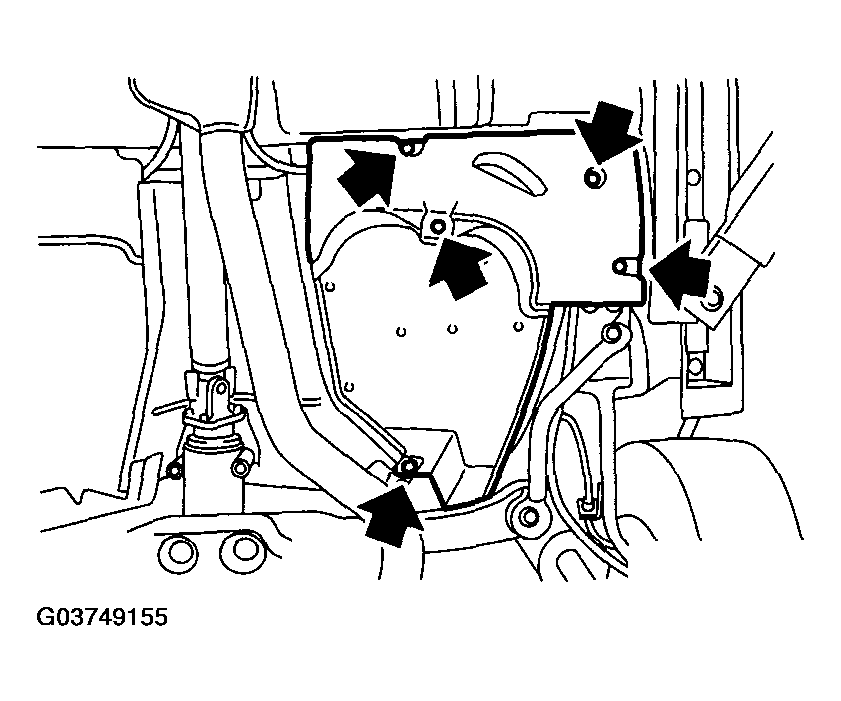

Fig 7: Removing Front Side Fuel Tank Cover (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

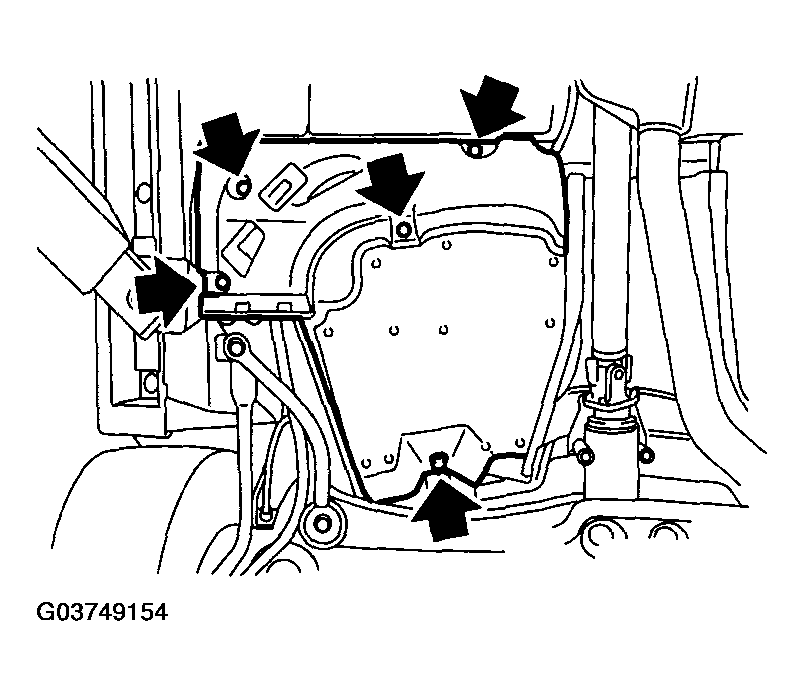

Fig 8: Removing Front Side Fuel Tank Cover (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove rear exhaust pipe and muffler.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

SUBARU CRC (Part No. 004301003)
1. Separate rear exhaust pipe from center exhaust pipe.

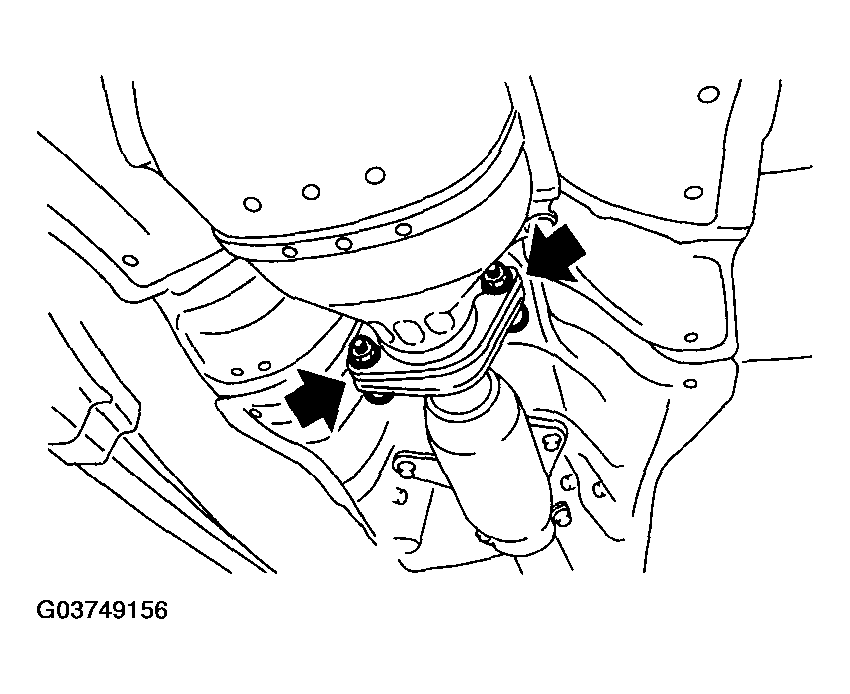

  Fig 9: Identifying Rear Exhaust Pipe Bolt
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove left and right rubber cushions.
  CAUTION: Be careful not to pull down muffler.

  Fig 10: Removing Left And Right Rubber Cushions
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove front rubber cushion and detach muffler assembly.

  Fig 11: Removing Front Rubber Cushion And Detach Muffler Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove propeller shaft. < Ref. to REMOVAL , Propeller Shaft . >
Disconnect connector from ABS sensor.

Fig 12: Disconnecting Connector From ABS Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold parking brake cable holding bracket.
Remove parking brake cable from cabin by forcibly pulling it backward.

Fig 13: Removing Parking Brake Cable From Cabin By Forcibly Pulling It Backward
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold parking brake cable holding bracket.

Fig 14: Removing Bolts And Holding Parking Brake Cable Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.

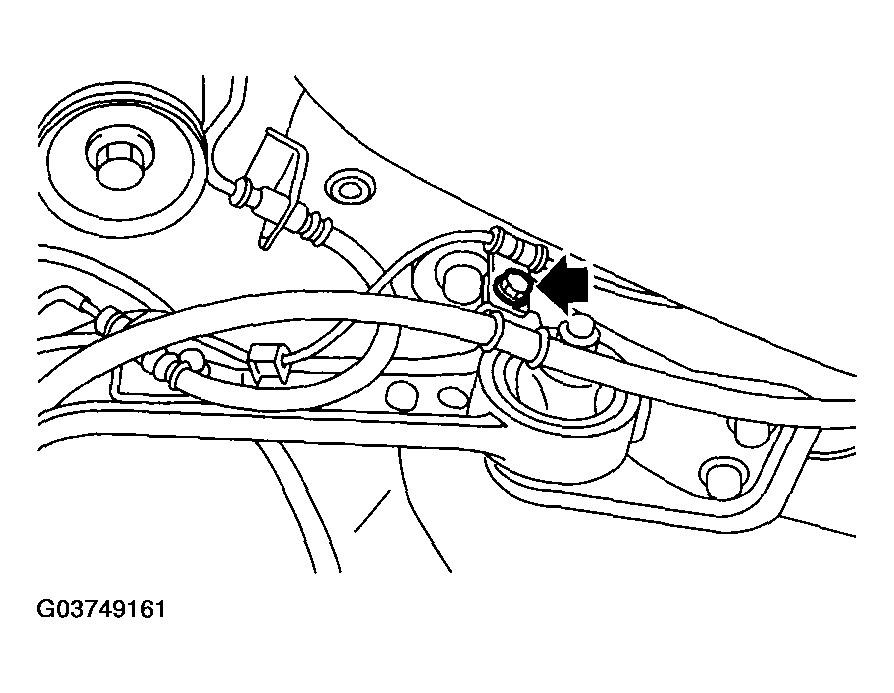

Remove bolts which hold rear brake hoses holding bracket.

Fig 15: Removing Bolts And Hold Rear Brake Hoses Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.

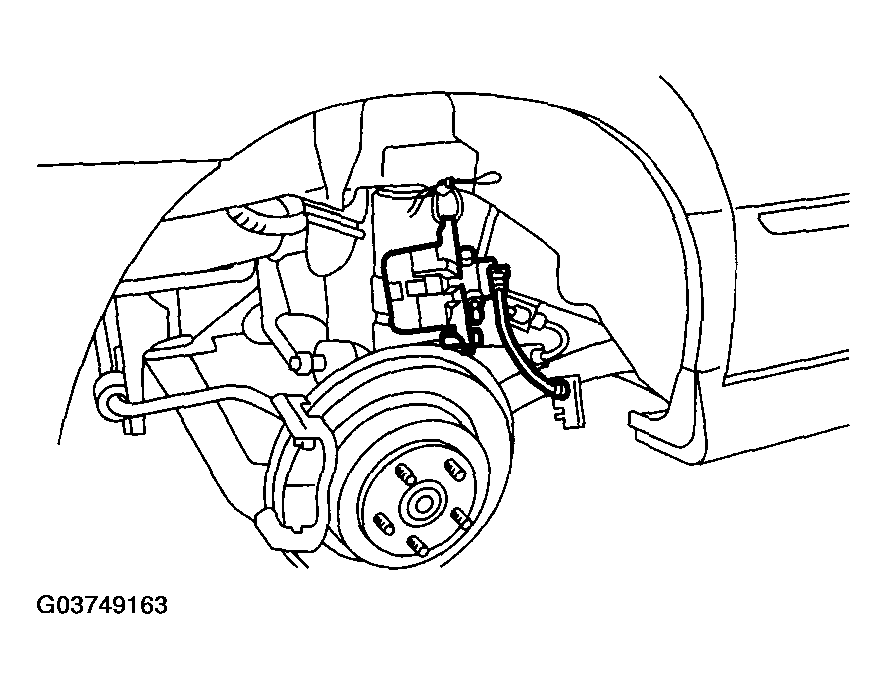

Remove rear brake caliper, then tie it up to the body side of the vehicle as shown Fig 16 .

Fig 16: Removing Rear Brake Caliper
Courtesy of SUBARU OF AMERICA, INC.
Remove rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support rear differential with transmission jack.

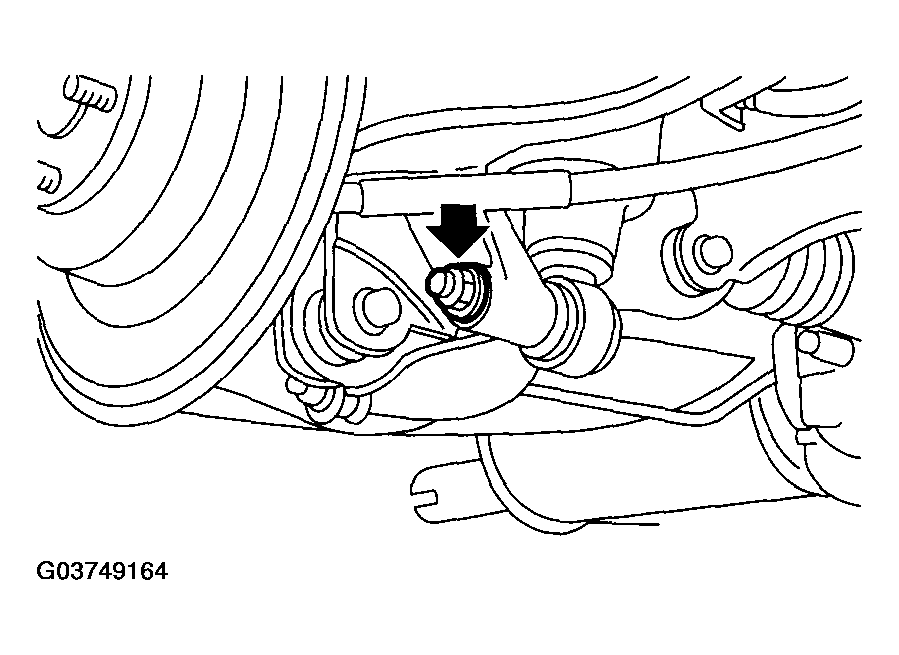

2. Remove bolt which holds rear shock absorber to rear suspension arm.

  Fig 17: Removing Bolt Which Holds Rear Shock Absorber To Rear Suspension Arm
  Courtesy of SUBARU OF AMERICA, INC.

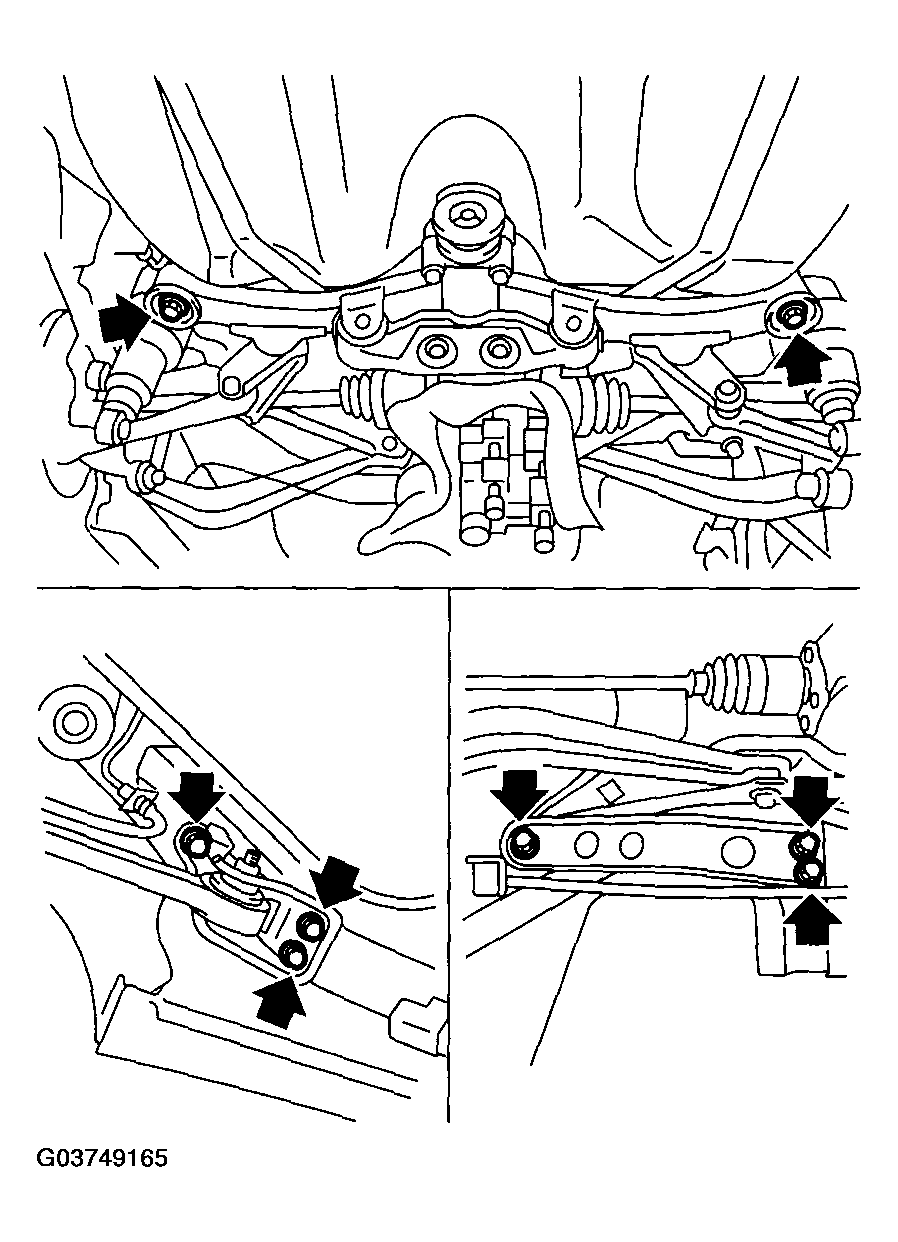

3. Remove bolts which secure rear suspension assembly to body.

  Fig 18: Removing Bolts Which Secure Rear Suspension Assembly To Body
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove rear suspension assembly.
Remove rear side fuel tank cover.

Fig 19: Removing Rear Side Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.

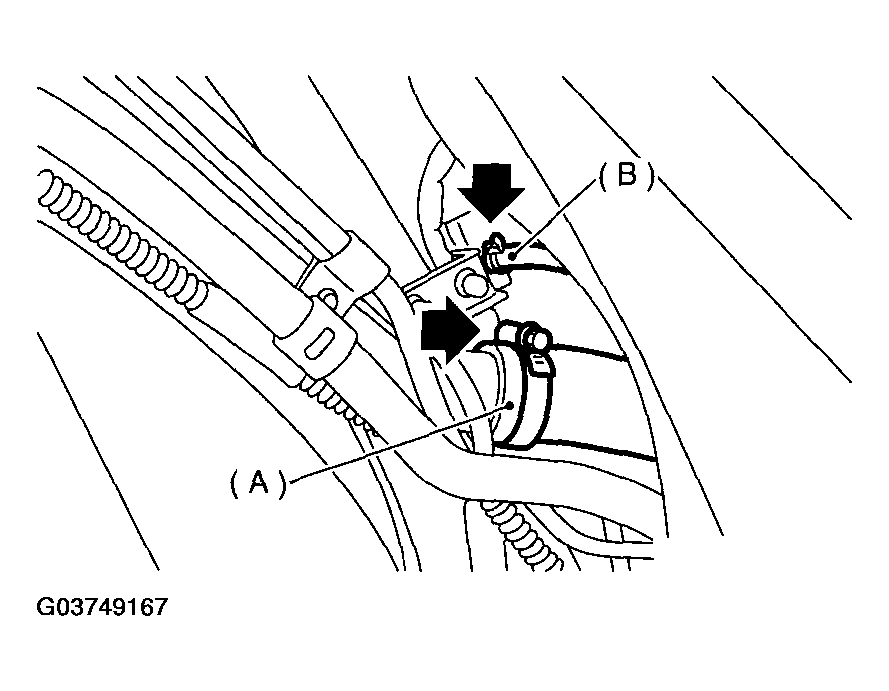

Disconnect fuel filler hose (A) and fuel tank pressure sensor hose (B).

Fig 20: Disconnecting Fuel Filler Hose And Fuel Tank Pressure Sensor Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect air vent hose (A) from evaporation pipe assembly and disconnect evaporation hose (H) from pressure control solenoid valve.

Fig 21: Disconnecting Air Vent Hose From Evaporation Pipe Assembly And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

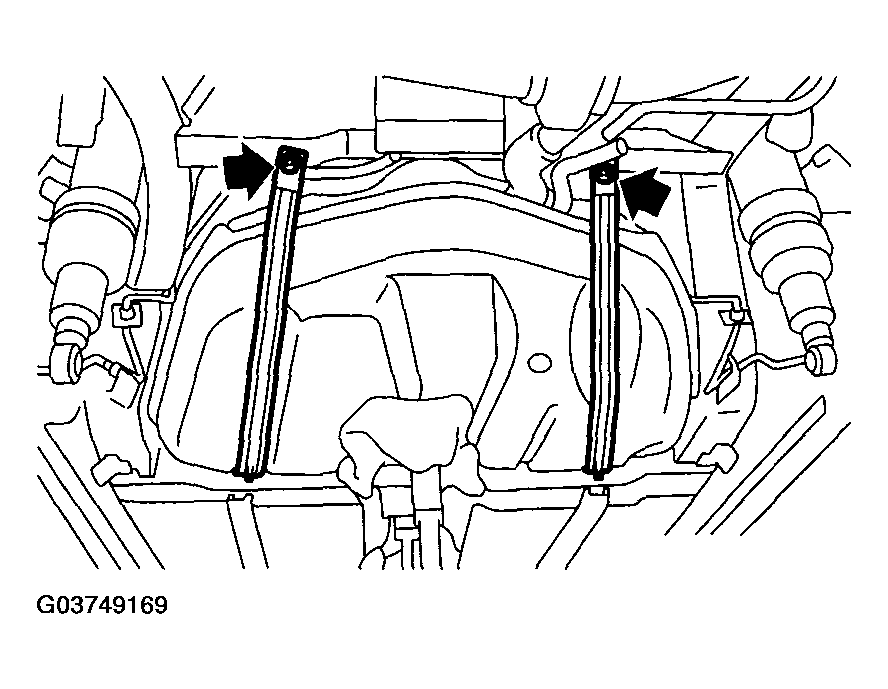

Support fuel tank with transmission jack, remove bolts from bands and dismount fuel tank from the vehicle.
WARNING: A helper is required to perform this work.

Fig 22: Removing Bolts From Bands And Dismount Fuel Tank From The Vehicle
Courtesy of SUBARU OF AMERICA, INC.
