Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03749128Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the driver's side lower cover.
  3. Disconnect the connector from the fuel pump relay.
  4. Remove the fuel pump relay from the bracket.

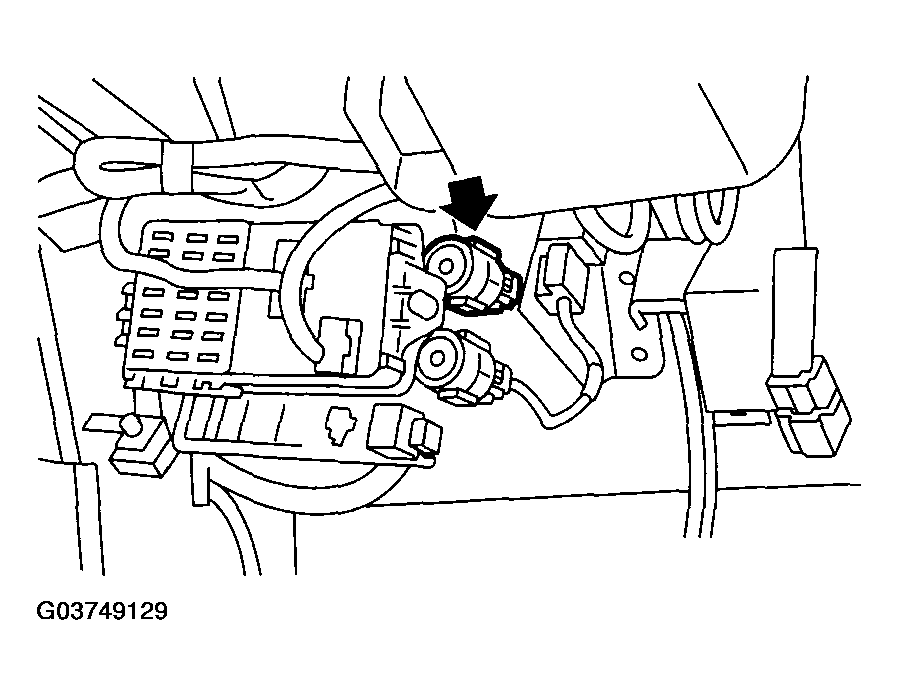

    Fig 2: Removing Fuel Pump Relay From The Bracket
    G03749129Courtesy of SUBARU OF AMERICA, INC.
