Fuel Filler Pipe: Installation

  1. Hold fuel filler flap open.
  2. Set fuel saucer (A) with rubber packing (C) and insert fuel filler pipe into hole from the inner side of apron.

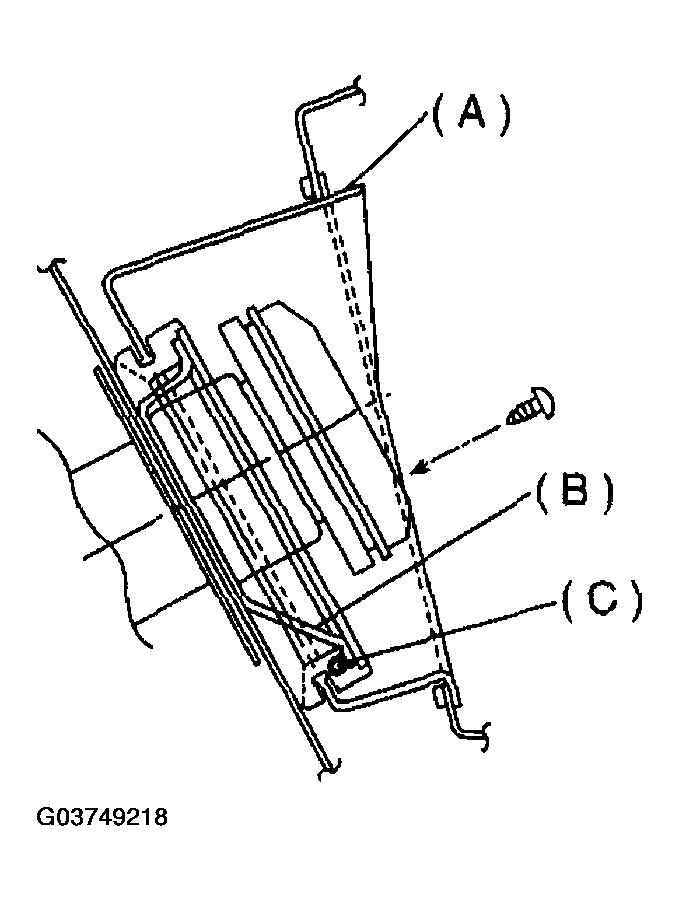

    Fig 1: Setting Fuel Saucer With Rubber Packing And Inserting Fuel Filler Pipe Into Hole From The Inner Side Of Apron
    G03749218Courtesy of SUBARU OF AMERICA, INC.
  3. Align holes in fuel filler pipe neck and set cup (B), and tighten screws.
    NOTE: If edges of rubber packing are folded toward the inside, straighten it with a screwdriver.

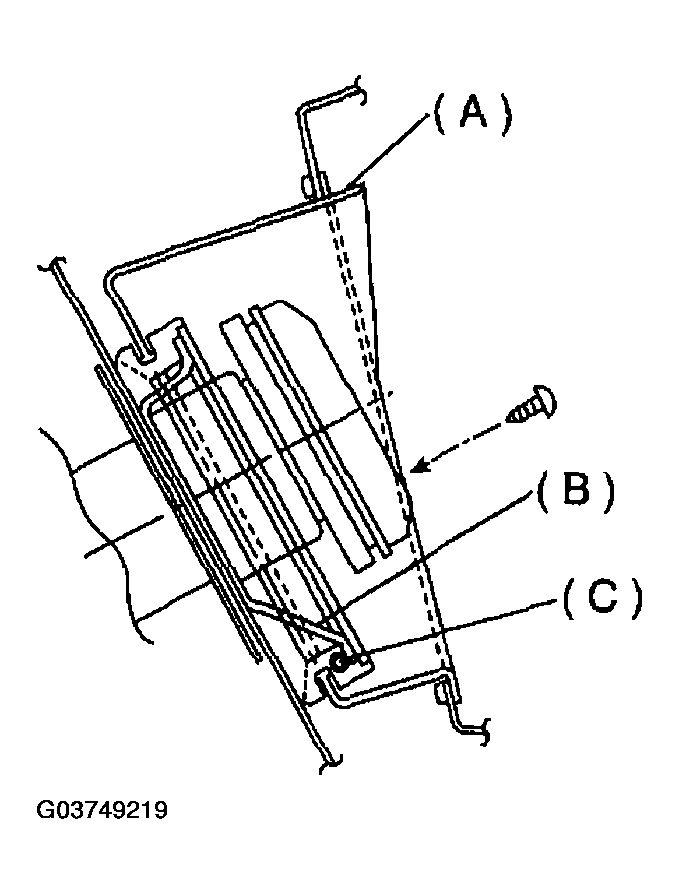

    Fig 2: Aligning Holes In Fuel Filler Pipe Neck And Setting Cup
    G03749219Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten bolt which holds fuel filler pipe on body.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

    Fig 3: Tightening Bolt Which Holds Fuel Filler Pipe On Body
    G03749220Courtesy of SUBARU OF AMERICA, INC.
  5. Insert evaporation hose approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe and hold clip.
    Fig 4: Inserting Evaporation Hose Into Lower End Of Evaporation Pipe
    G03749221Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 5: Measuring Length Of Evaporation Hose
    G03749222Courtesy of SUBARU OF AMERICA, INC.
  6. Insert canister hoses approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and tighten clamp.
    Fig 6: Inserting Canister Hoses Into Lower End Of Evaporation Pipe Assembly
    G03749223Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 7: Measuring Length Of Canister Hose
    G03749224Courtesy of SUBARU OF AMERICA, INC.
  7. Tighten bolt which holds evaporation pipe assembly on body.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

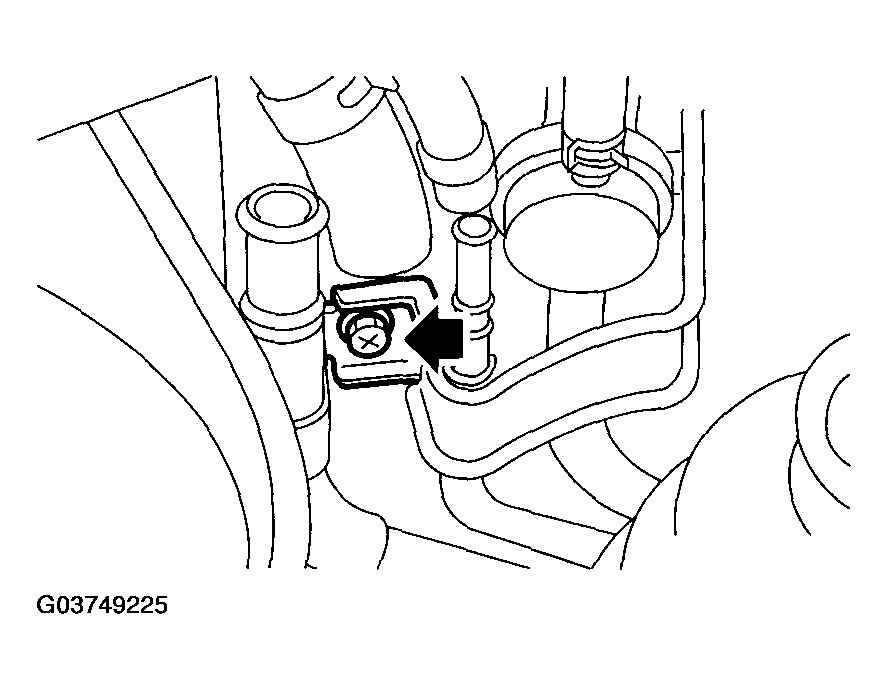

    Fig 8: Tightening Bolt And Holding Evaporation Pipe Assembly On Body
    G03749225Courtesy of SUBARU OF AMERICA, INC.
  8. Insert air vent hose (A), evaporation hose (P) approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and hold clip.
  9. Insert evaporation hose (H) to pressure control solenoid valve and hold clip.
    Fig 9: Inserting Evaporation Hose To Pressure Control Solenoid Valve
    G03749226Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 10: Measuring Length Of Evaporation Hose
    G03749227Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten bolt which holds fuel filler pipe on body and tighten bolt which holds fuel pressure sensor on fuel filler pipe.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

  11. Insert fuel filler hose approximately 35 to 40 mm (1.38 to 1.57 in) over the lower end of fuel filler pipe and tighten clamp.

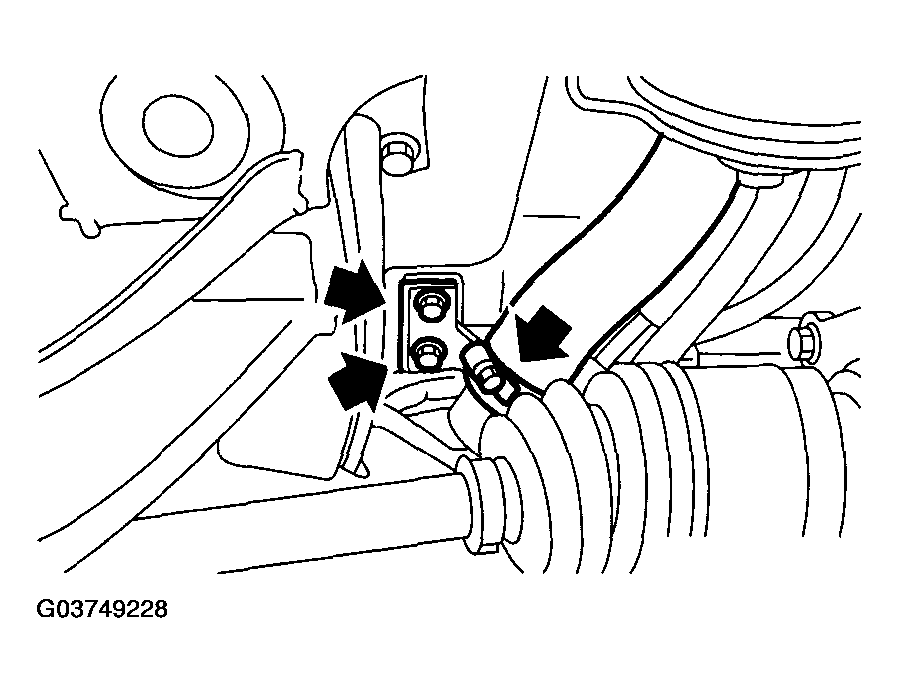

    Fig 11: Inserting Fuel Filler Hose Over The Lower End Of Fuel Filler Pipe
    G03749228Courtesy of SUBARU OF AMERICA, INC.
  12. Jack-up the rear sub frame and tighten bolts which hold rear sub frame on body.

    Tightening torque:

    T1: 66 N.m (6.7 kgf-m, 48.5 ft-lb)

    T2: 172 N.m (17.5 kgf-m, 127 ft-lb)

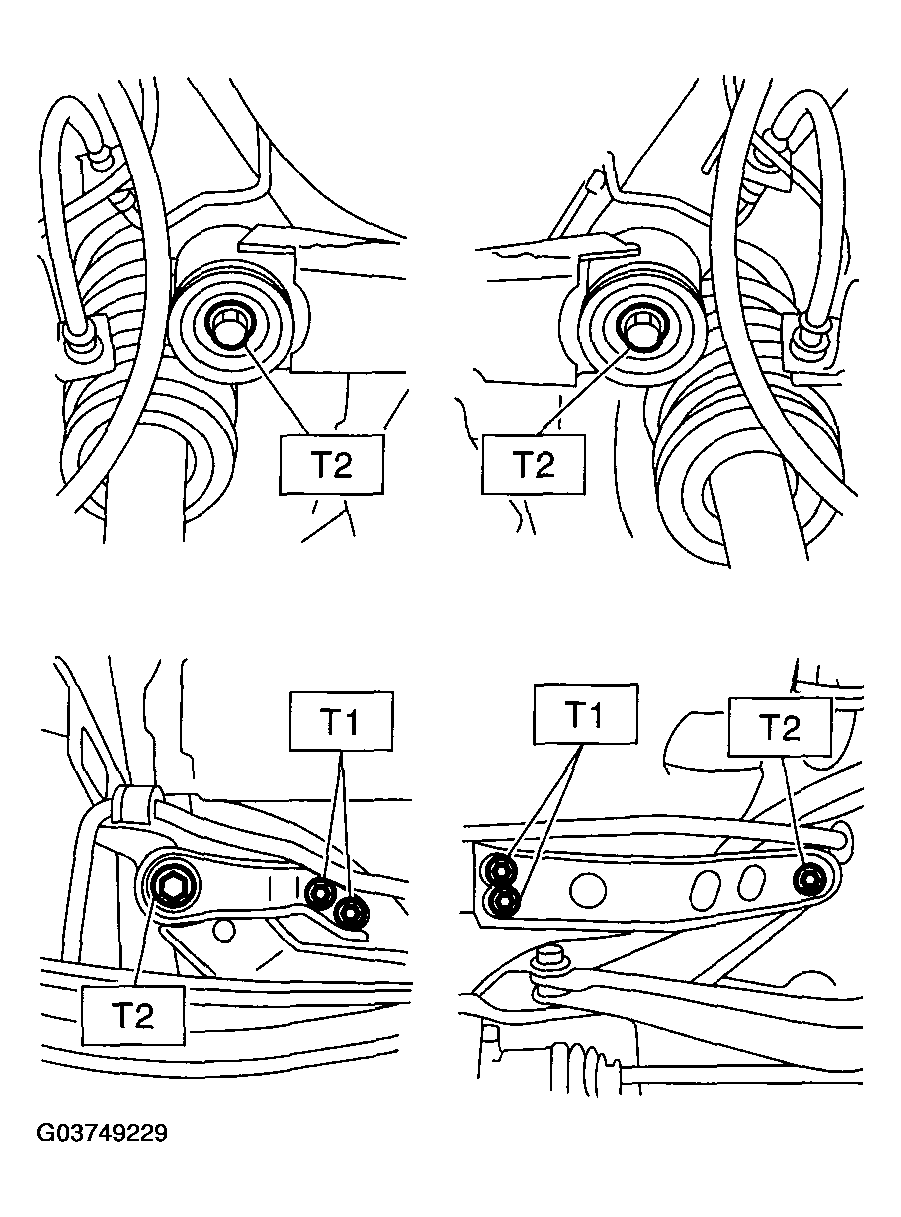

    Fig 12: Tightening Bolts Holding Rear Sub Frame On Body
    G03749229Courtesy of SUBARU OF AMERICA, INC.
  13. Tighten bolt which holds rear shock absorber to rear suspension arm. < Ref. to INSTALLATION , Rear Shock Absorber . >

    Tightening torque:

    157 N.m (16 kgf-m, 116 ft-lb)

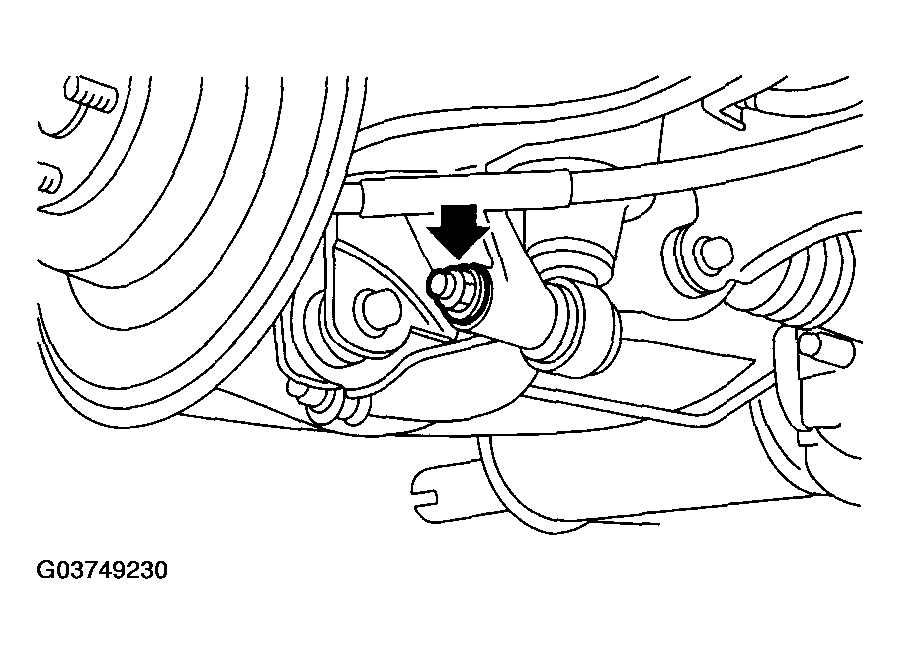

    Fig 13: Tightening Bolt Which Holds Rear Shock Absorber To Rear Suspension Arm
    G03749230Courtesy of SUBARU OF AMERICA, INC.
  14. Install heat shield cover.

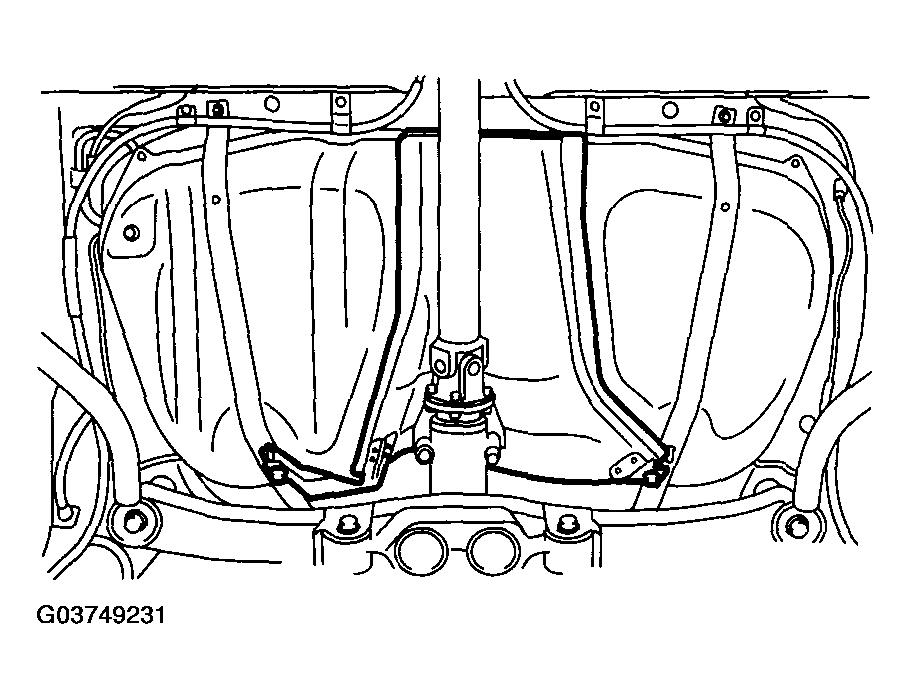

    Fig 14: Installing Heat Shield Cover
    G03749231Courtesy of SUBARU OF AMERICA, INC.
  15. Install rear exhaust pipe and muffler.
    NOTE: To facilitate the procedure, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

    SUBARU CRC (Part No. 004301003)

    1. Install left and right rubber cushions.
      Fig 15: Installing Left And Right Rubber Cushions
      G03749232Courtesy of SUBARU OF AMERICA, INC.
    2. Install front rubber cushion and attach muffler assembly.

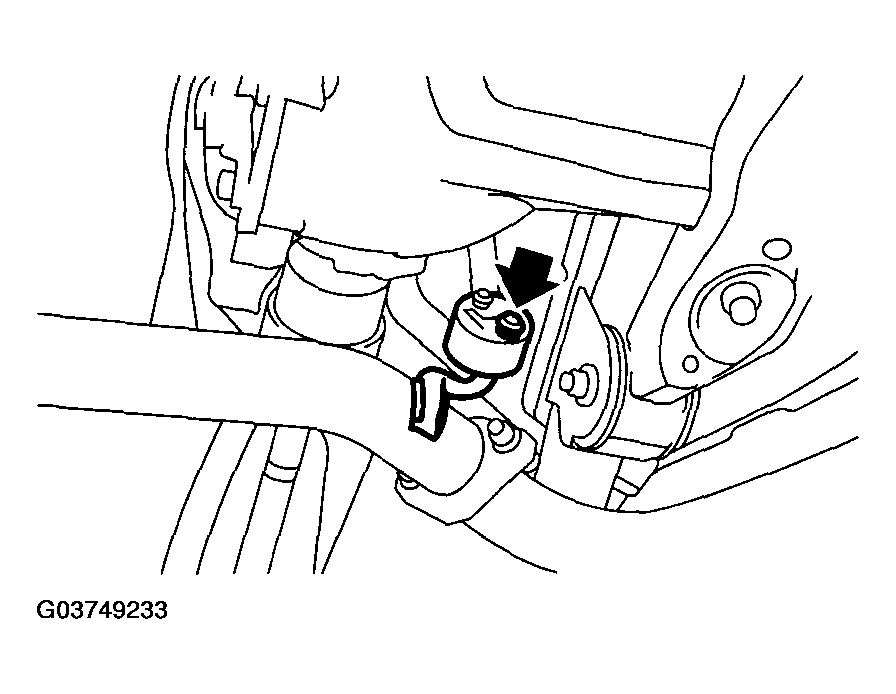

      Fig 16: Installing Front Rubber Cushion And Attach Muffler Assembly
      G03749233Courtesy of SUBARU OF AMERICA, INC.
    3. Install rear exhaust pipe to center exhaust pipe.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.0 ft-lb)

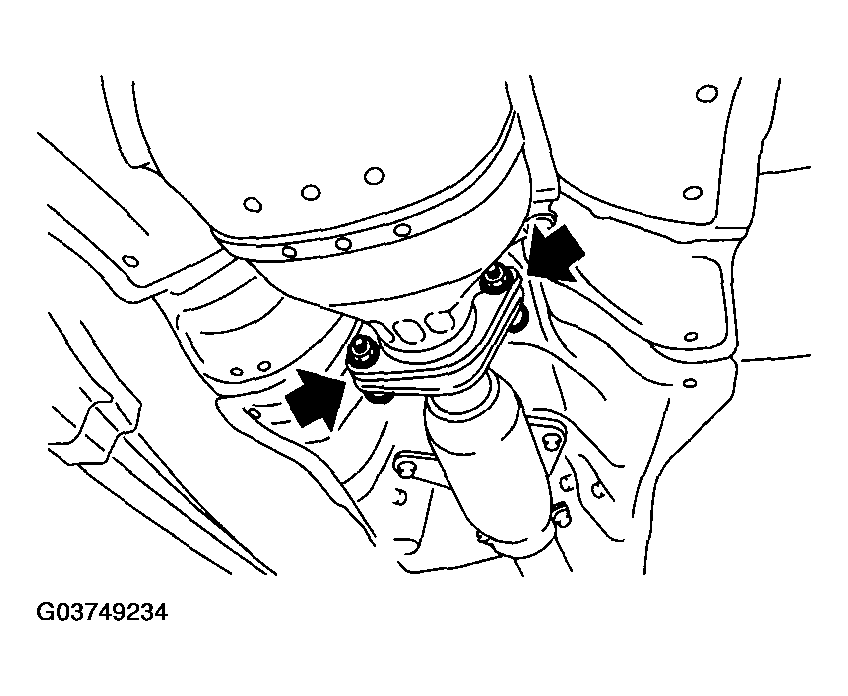

    Fig 17: Installing Rear Exhaust Pipe To Center Exhaust Pipe
    G03749234Courtesy of SUBARU OF AMERICA, INC.
  16. Install fuel filler pipe protector.

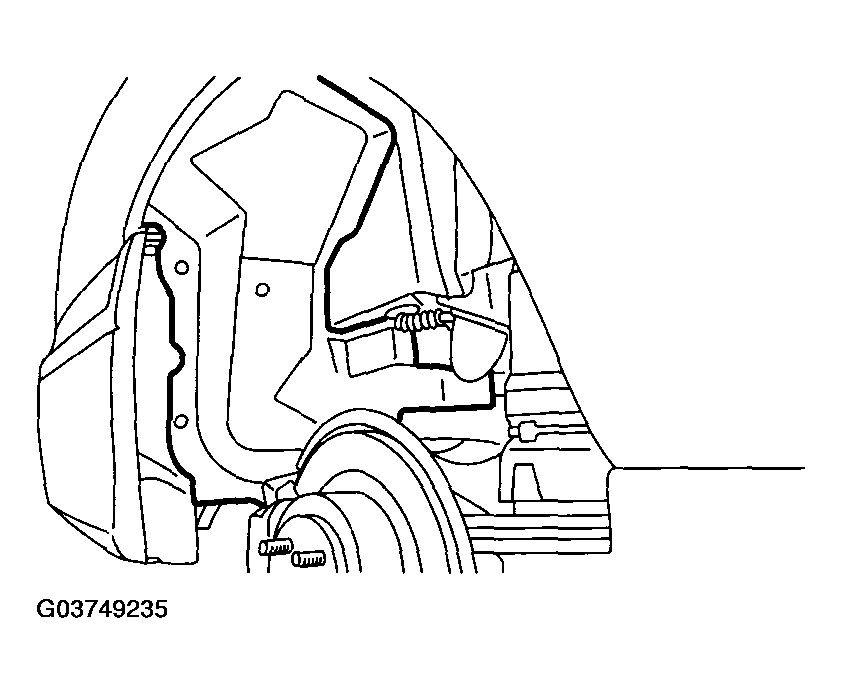

    Fig 18: Installing Fuel Filler Pipe Protector
    G03749235Courtesy of SUBARU OF AMERICA, INC.
  17. Install rear right wheel.
    Fig 19: Installing Rear Right Wheel
    G03749236Courtesy of SUBARU OF AMERICA, INC.
  18. Lower the vehicle.
  19. Tighten wheel nuts.
  20. Connect battery ground cable.

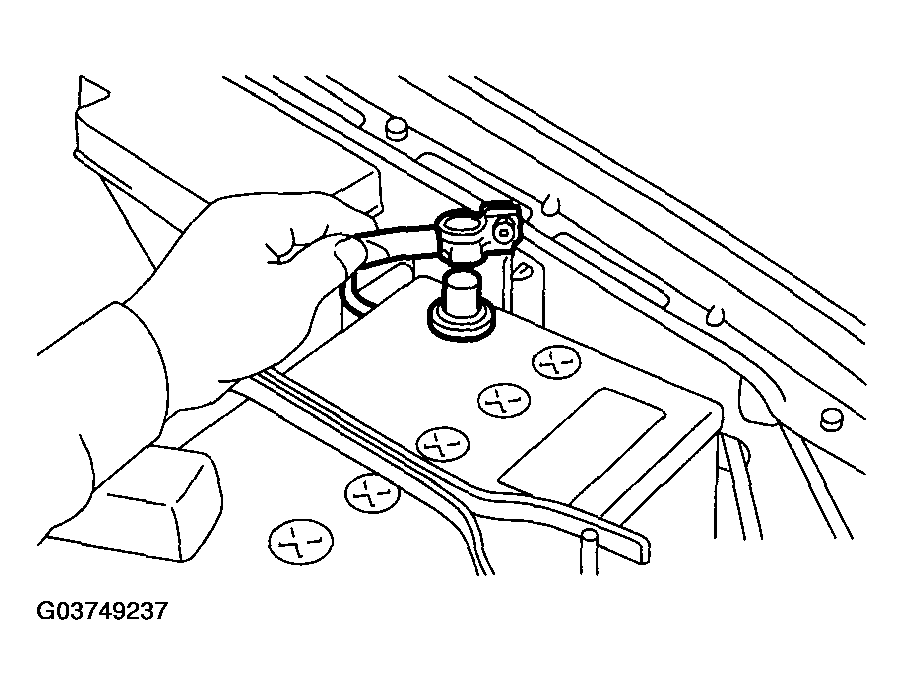

    Fig 20: Connecting Battery Ground Cable
    G03749237Courtesy of SUBARU OF AMERICA, INC.
  21. Remove fuel filler pipe to under side of the vehicle.
