Fuel Filler Pipe: Disassembly

  1. Disconnect evaporation hose (L) and (M) from evaporation pipe assembly.

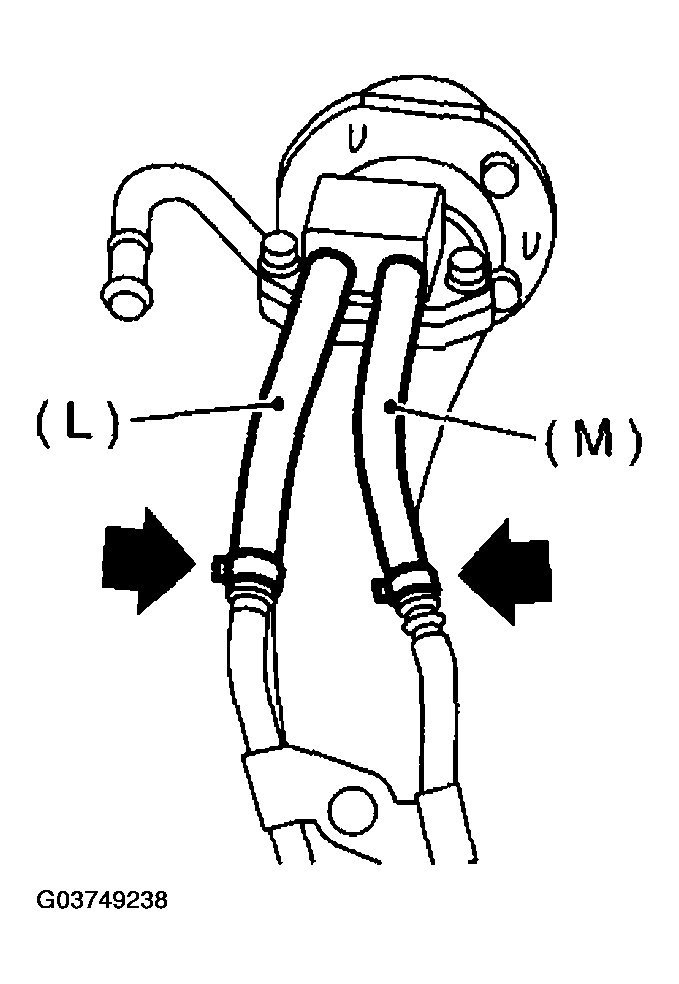

    Fig 1: Disconnecting Evaporation Hose And From Evaporation Pipe Assembly
    G03749238Courtesy of SUBARU OF AMERICA, INC.
  2. Remove shut valve from fuel filler pipe.

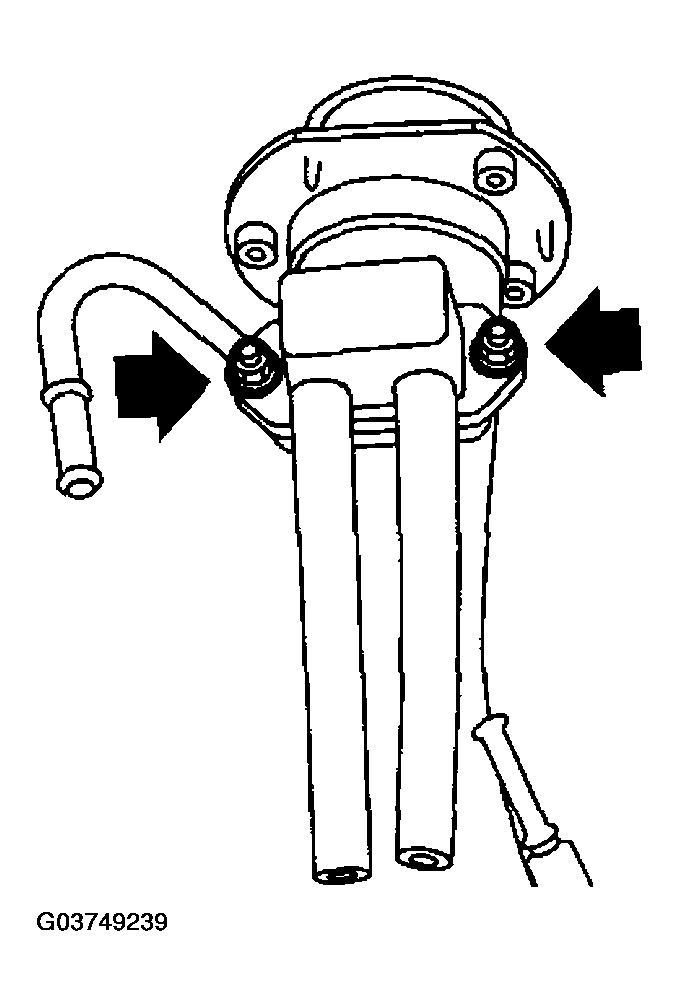

    Fig 2: Removing Shut Valve From Fuel Filler Pipe
    G03749239Courtesy of SUBARU OF AMERICA, INC.
  3. Remove nut which holds evaporation pipe assembly on fuel filler pipe.

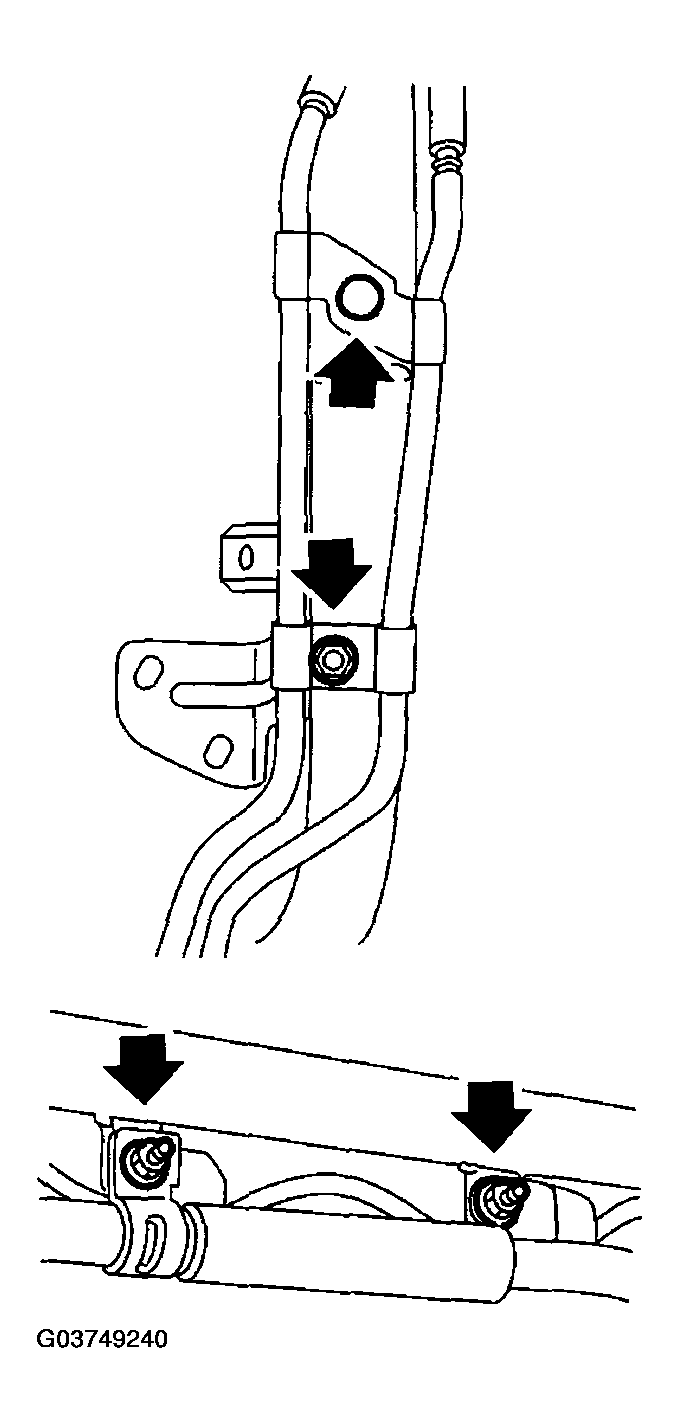

    Fig 3: Removing Nut Which Holds Evaporation Pipe Assembly On Fuel Filler Pipe
    G03749240Courtesy of SUBARU OF AMERICA, INC.
