Fuel Damper Valve: Removal

  1. Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
  2. Remove the fuel damper valve from the fuel delivery line and return line.

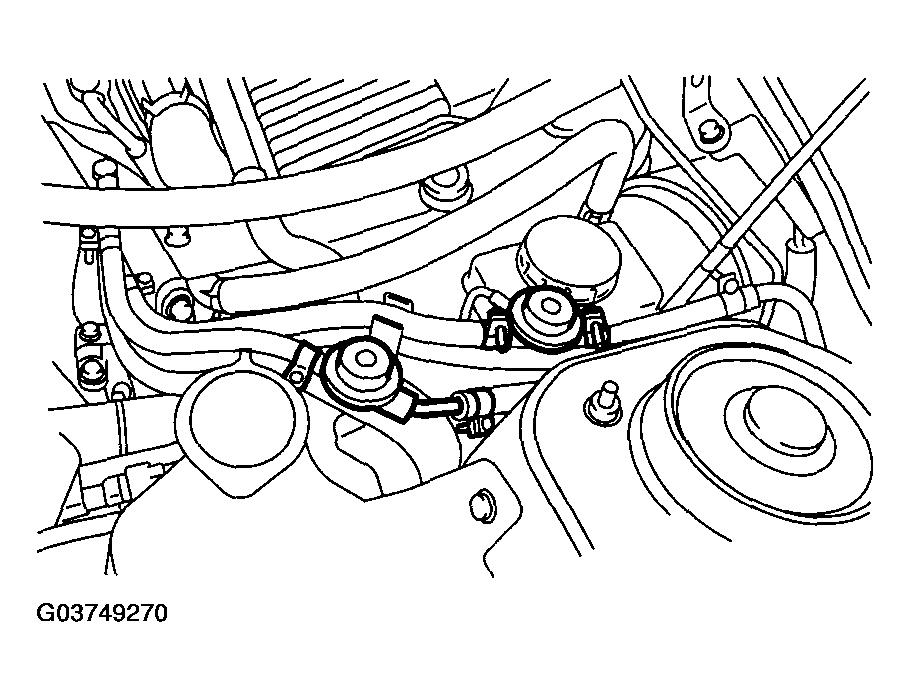

    Fig 1: Removing Fuel Damper Valve From Fuel Delivery Line And Return Line
    G03749270Courtesy of SUBARU OF AMERICA, INC.
