Exhaust Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

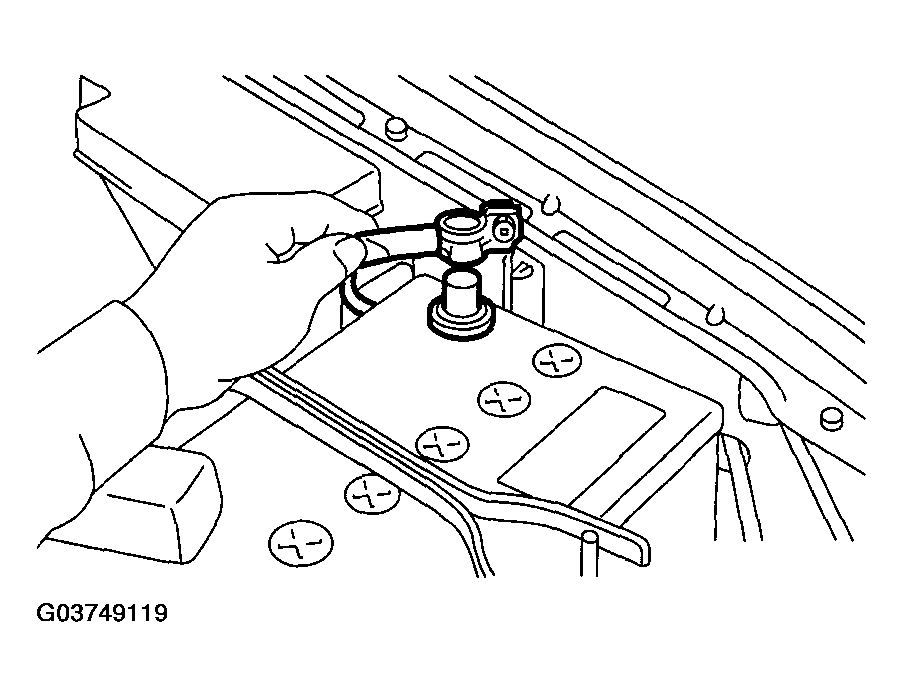

    Fig 1: Disconnecting Ground Cable From Battery
    G03749119Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the joint pipe. < Ref. to REMOVAL , Joint Pipe . >
  3. Apply SUBARU CRC or its equivalent to the threaded portion of exhaust temperature sensor, and leave it for one minute or more.

    SUBARU CRC (Part No. 004301003)

  4. Remove the exhaust temperature sensor.
    CAUTION: When removing the exhaust temperature sensor, wait until joint pipe cools, otherwise it will damage exhaust pipe.
    Fig 2: Removing Exhaust Temperature Sensor
    G03749120Courtesy of SUBARU OF AMERICA, INC.
