Engine Coolant Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

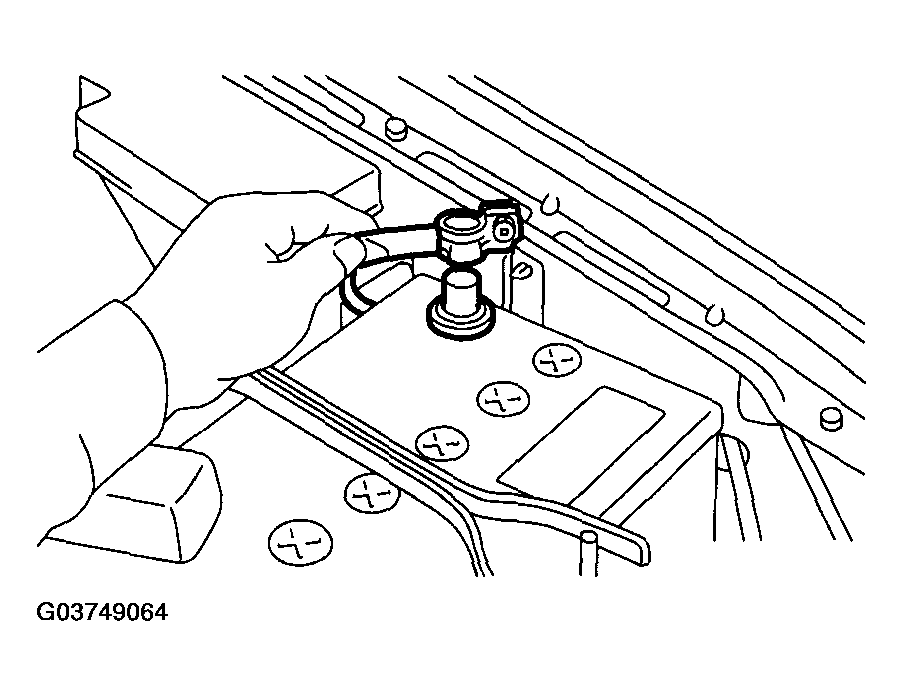

    Fig 1: Disconnecting Ground Cable From Battery
    G03749064Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the generator. < Ref. to REMOVAL , Generator . >
  3. Drain the engine coolant. < Ref. to REPLACEMENT , Engine Coolant . >
  4. Disconnect the connector from the engine coolant temperature sensor.

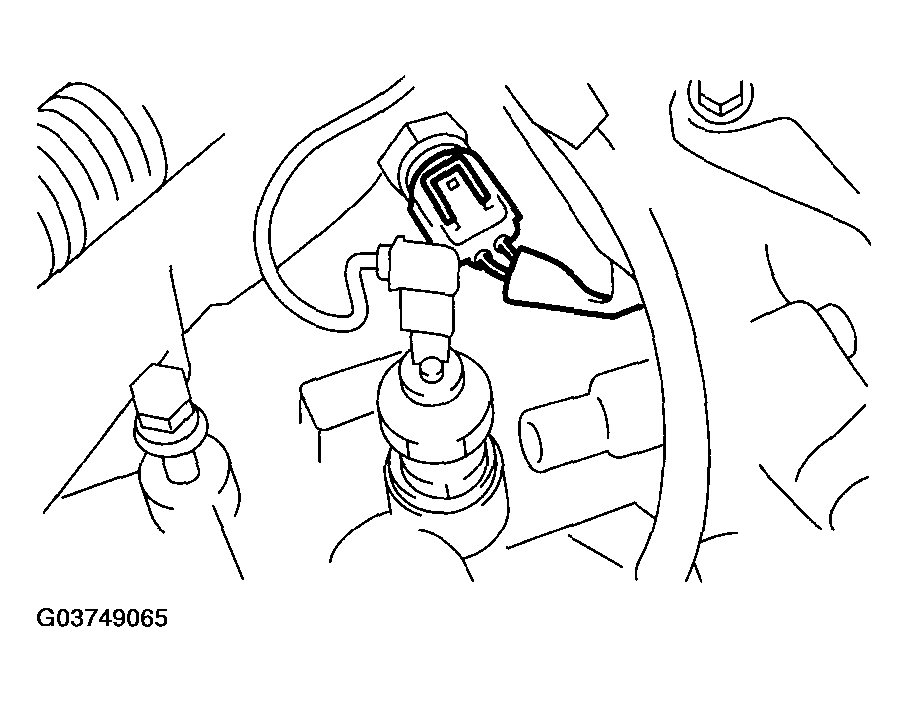

    Fig 2: Disconnecting Connector From The Engine Coolant Temperature Sensor
    G03749065Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the engine coolant temperature sensor.
