Crankshaft Position Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03749066Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bolt which installs the crankshaft position sensor to cylinder block.

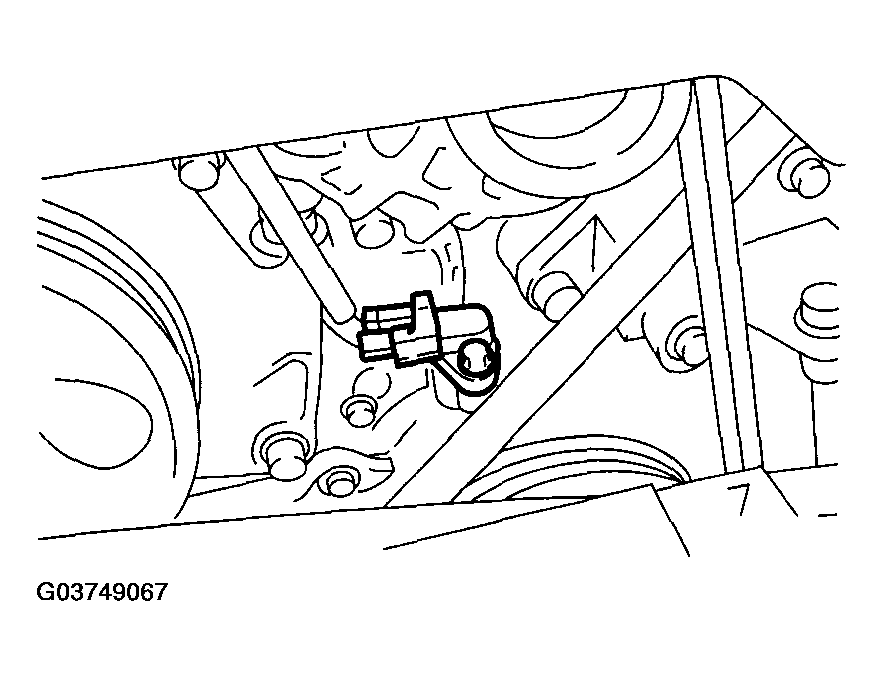

    Fig 2: Removing Bolt On Crankshaft Position Sensor To Cylinder Block
    G03749067Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the crankshaft position sensor, and disconnect the connector from it.

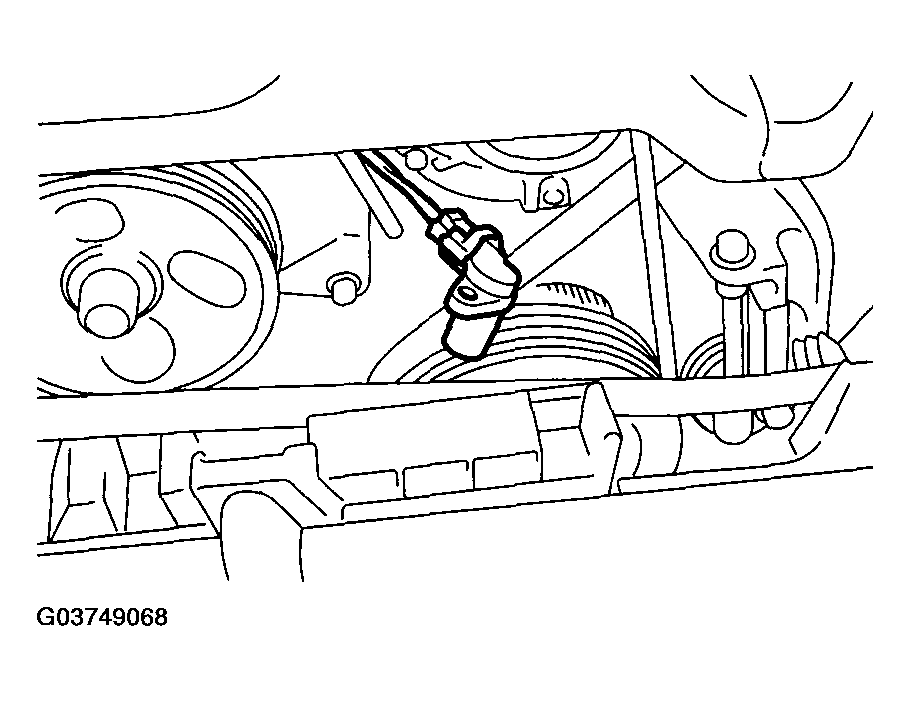

    Fig 3: Removing Crankshaft Position Sensor
    G03749068Courtesy of SUBARU OF AMERICA, INC.
