Bulb Replacement

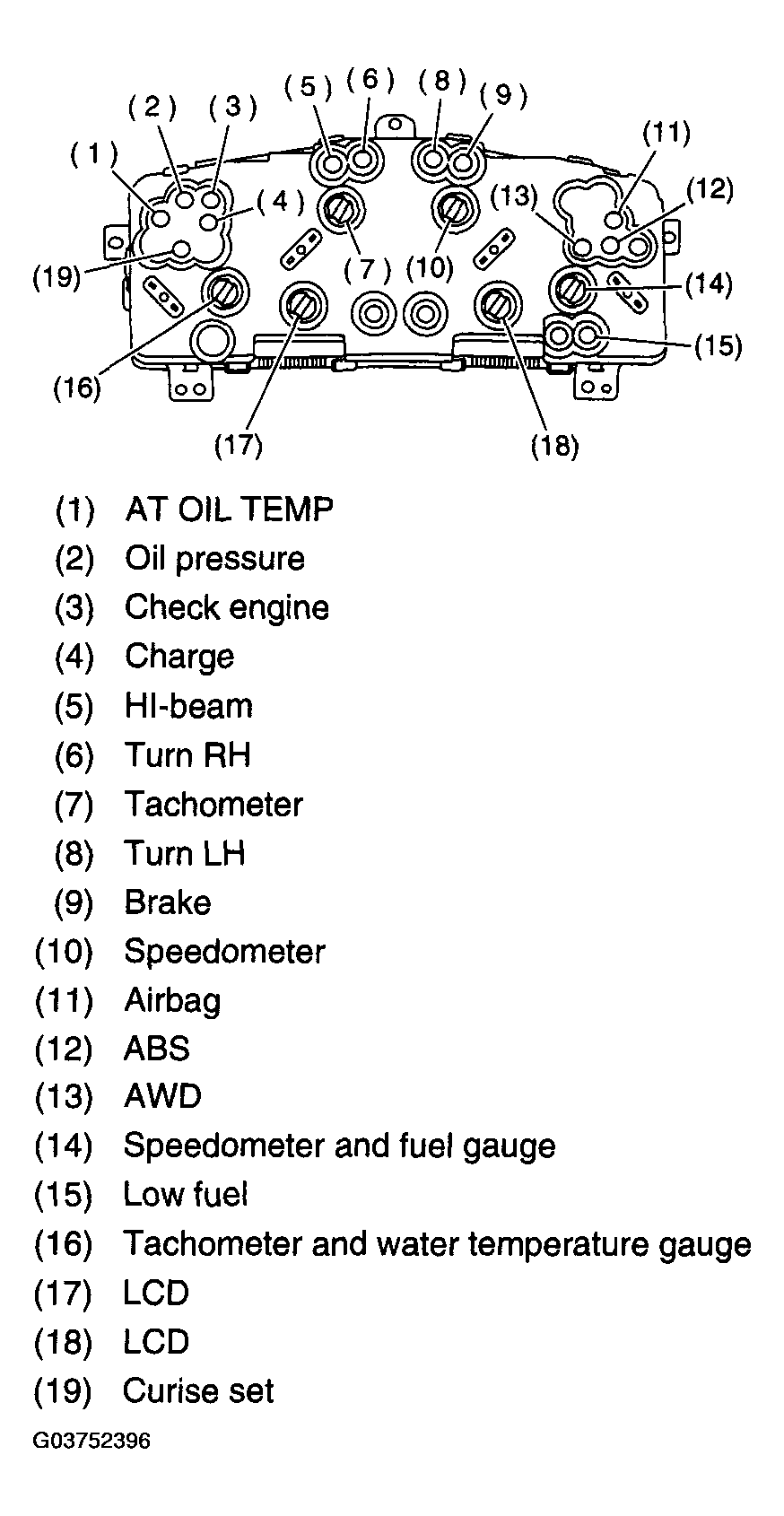

Fig 1: Identifying Bulb Location In Instrument Panel

G03752396

Courtesy of SUBARU OF AMERICA, INC.
