Transmission Control Module (TCM) Connector End Views (Turbo Model)

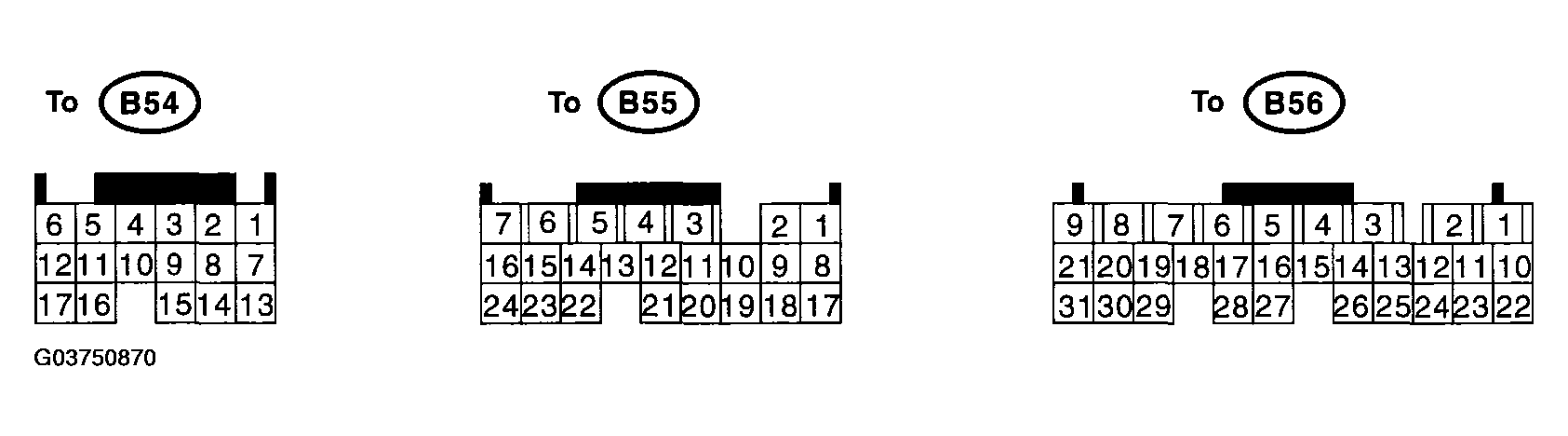

Fig 1: Transmission Control Module (TCM) Connector End Views (Turbo Model)

G03750870

Courtesy of SUBARU OF AMERICA, INC.
