TURBO model

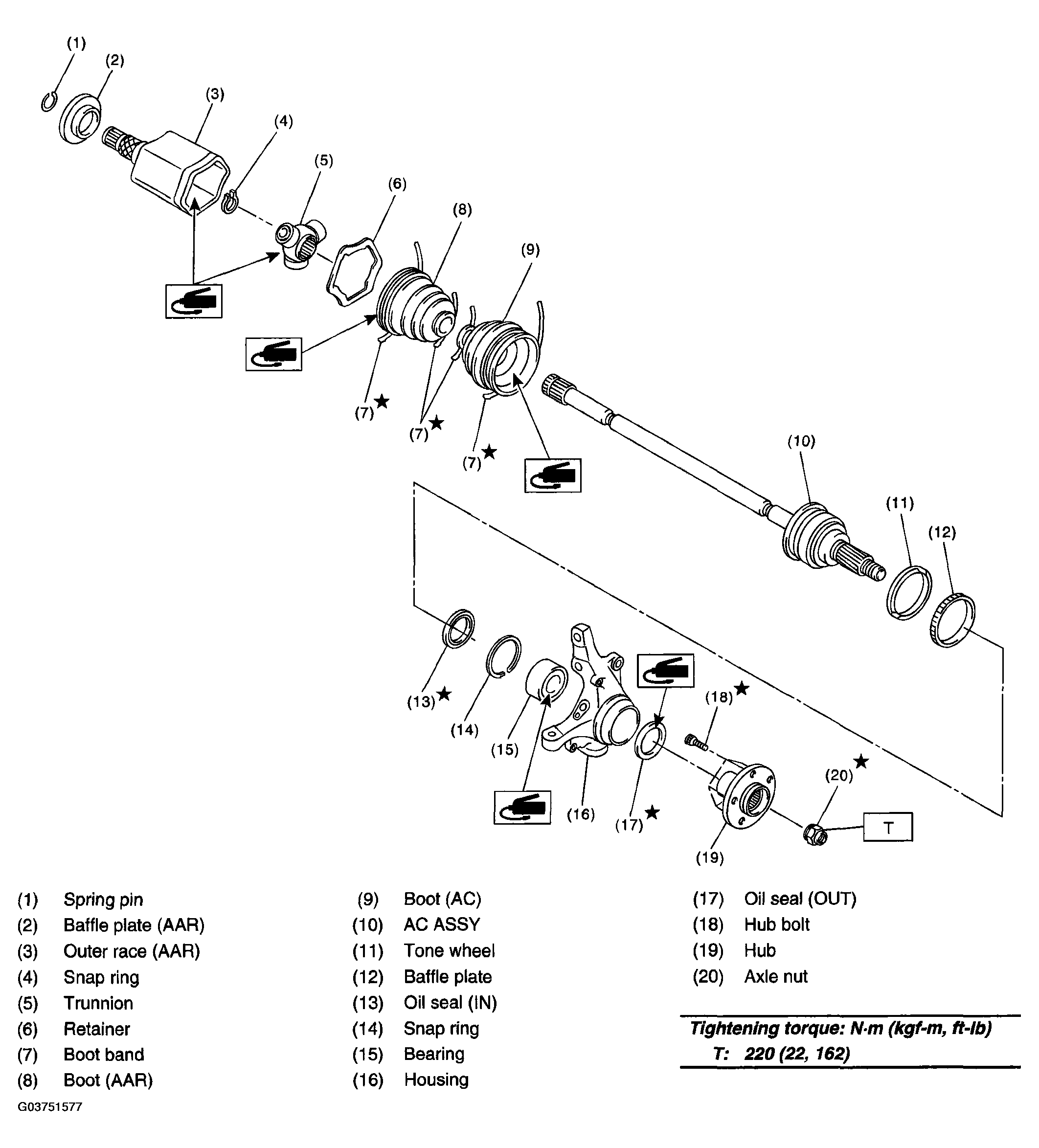

Fig 1: Front Axle Shaft Components (TURBO Model) With Torque Specifications

G03751577

Courtesy of SUBARU OF AMERICA, INC.
