Cruise Control Command Switch: Removal

WARNING: Before servicing, be sure to read the notes in the AB section for proper handling of the driver's airbag module. CAUTION , General Description

Set front wheels in straight ahead position.
Turn ignition switch OFF.
Disconnect ground cable from battery and wait for at least 20 seconds before starting work.
Using TORX BIT T30 (Tamper resistant type), loosen two TORX bolts which secure driver's airbag module.

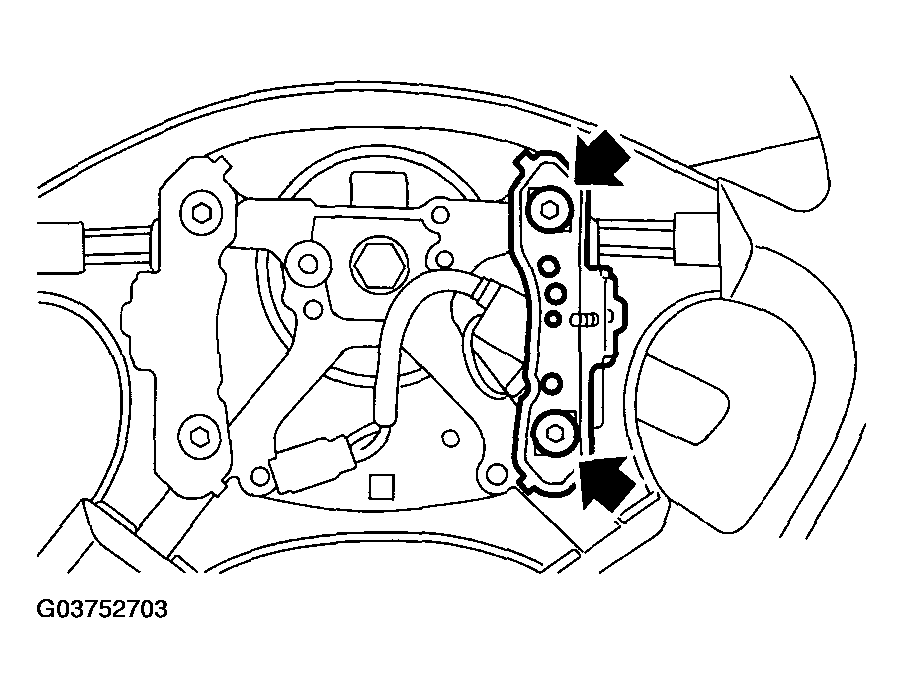

Fig 1: Loosening Torx Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect airbag module connector on back of airbag module.
Remove horn switch from steering wheel as shown in Fig 2.

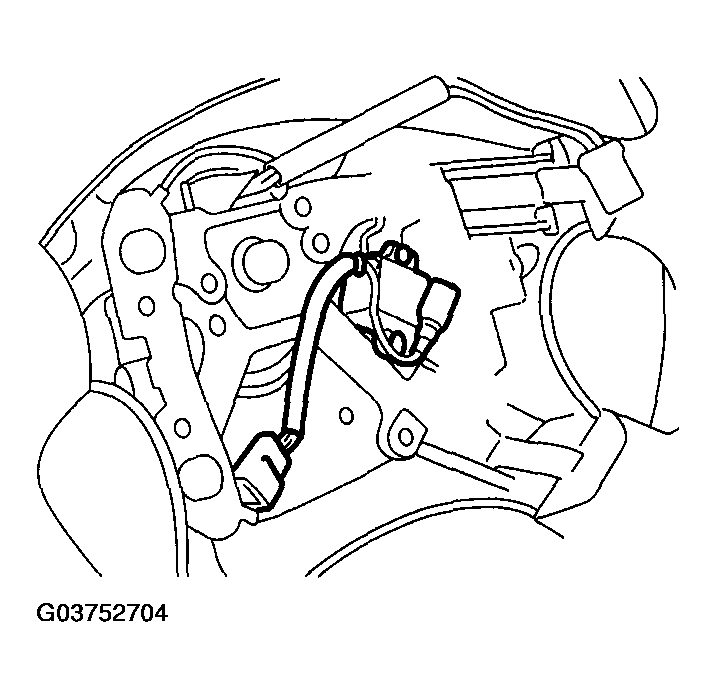

Fig 2: Removing Horn Switch From Steering Wheel
Courtesy of SUBARU OF AMERICA, INC.
Disconnect horn and cruise control command switch connector, then remove cruise control command switch.

Fig 3: Removing Cruise Control Command Switch
Courtesy of SUBARU OF AMERICA, INC.
