Cruise Control Command Switch: Inspection

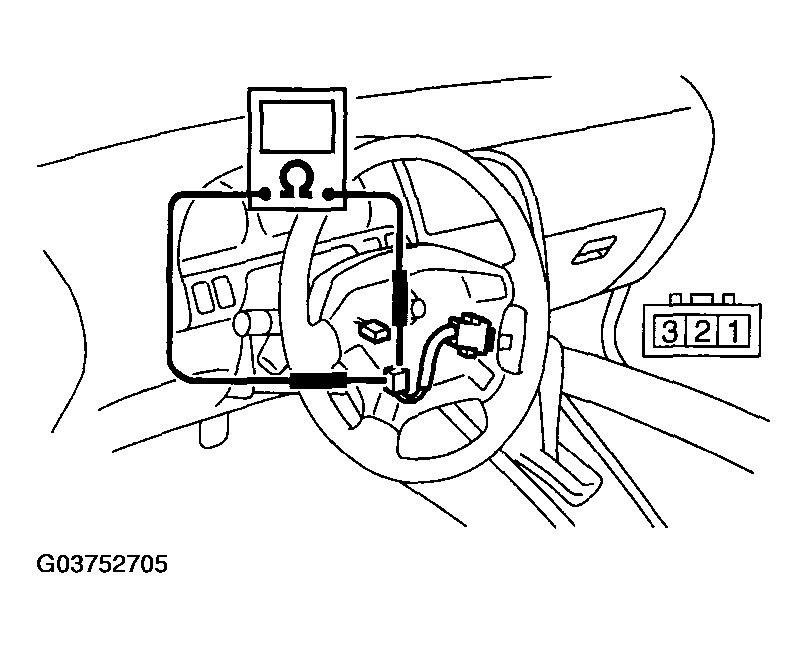

Measure cruise control command switch resistance.
Check continuity between cruise control command switch terminals.
CRUISE CONTROL COMMAND SWITCH TERMINALS RESISTANCE SPECIFICATION
| Switch | Position | Terminal No. | Standard |
|---|---|---|---|
| CANCEL | ON | 1 (+) and 2 (-) | Less than 1 Ω |
| ON | 1 (+) and 3 (-) | Less than 1 Ω | |
| SET/COAST | OFF | 1 and 2 | More than 1 MΩ |
| ON | 1 and 2 | Less than 1 Ω | |
| RESUME/ACCEL | OFF | 1 and 3 | More than 1 MΩ |
| ON | 1 and 3 | Less than 1 Ω |
If NG, replace cruise control command switch.
