M/T Gear Shift Lever: Installation

Install the joint to transmission and secure with the spring pin.
Insert the gear shift lever from room side.
NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.
Lift-up the vehicle.
Install the joint to shifter arm.
Insert the spring pin.

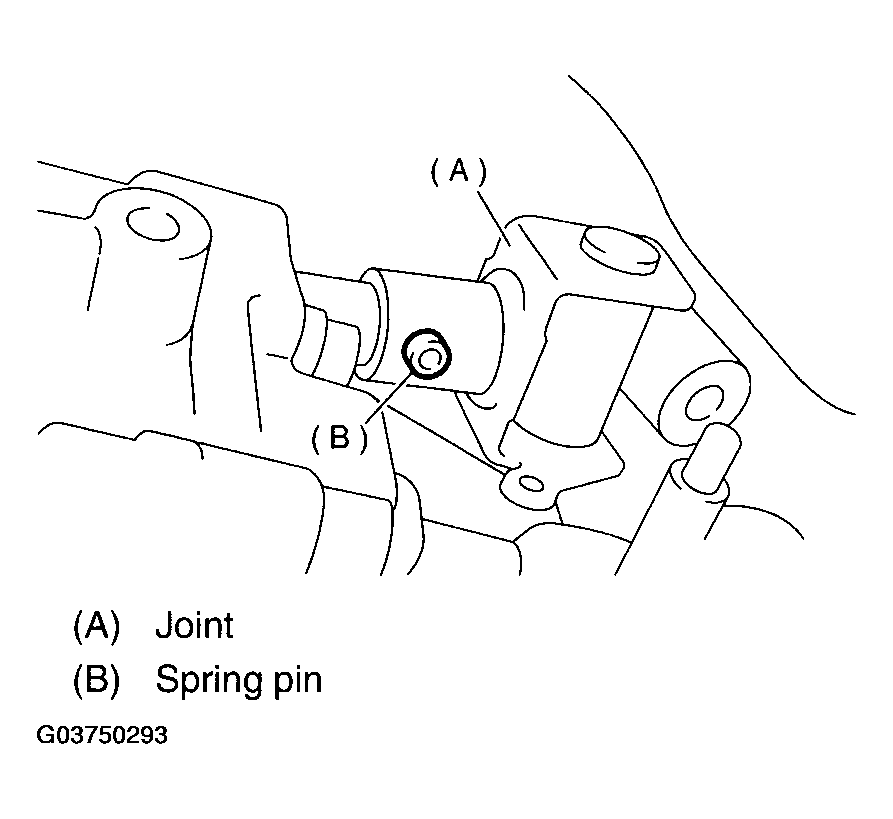

Fig 1: Inserting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

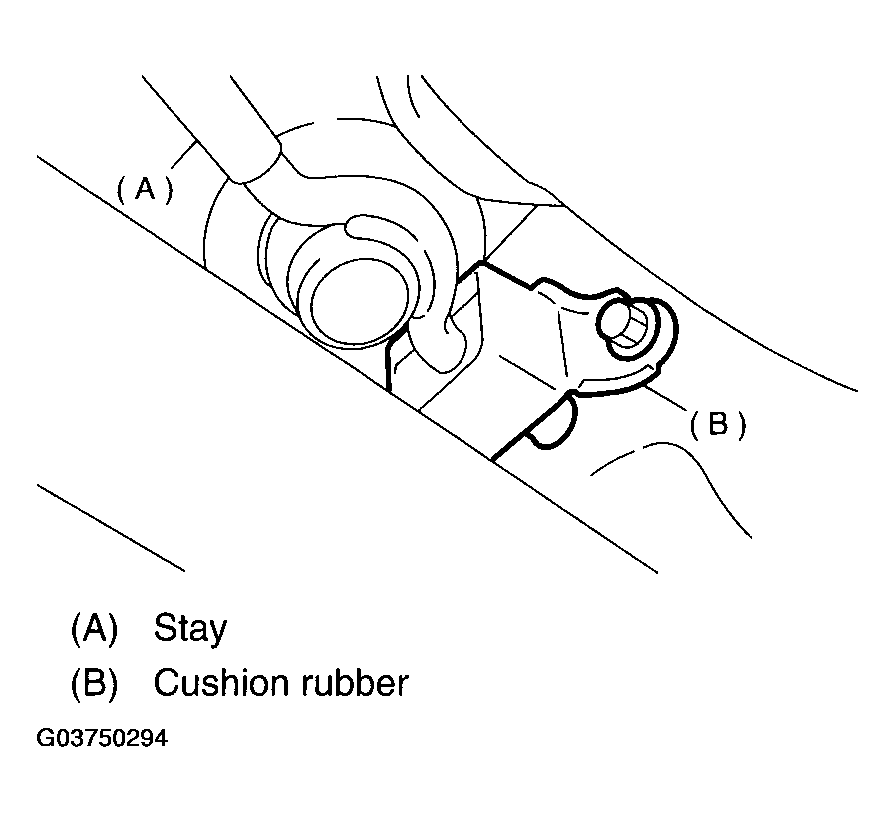

Fig 2: Mounting Cushion Rubber On Body
Courtesy of SUBARU OF AMERICA, INC.
Connect the rod to the joint.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

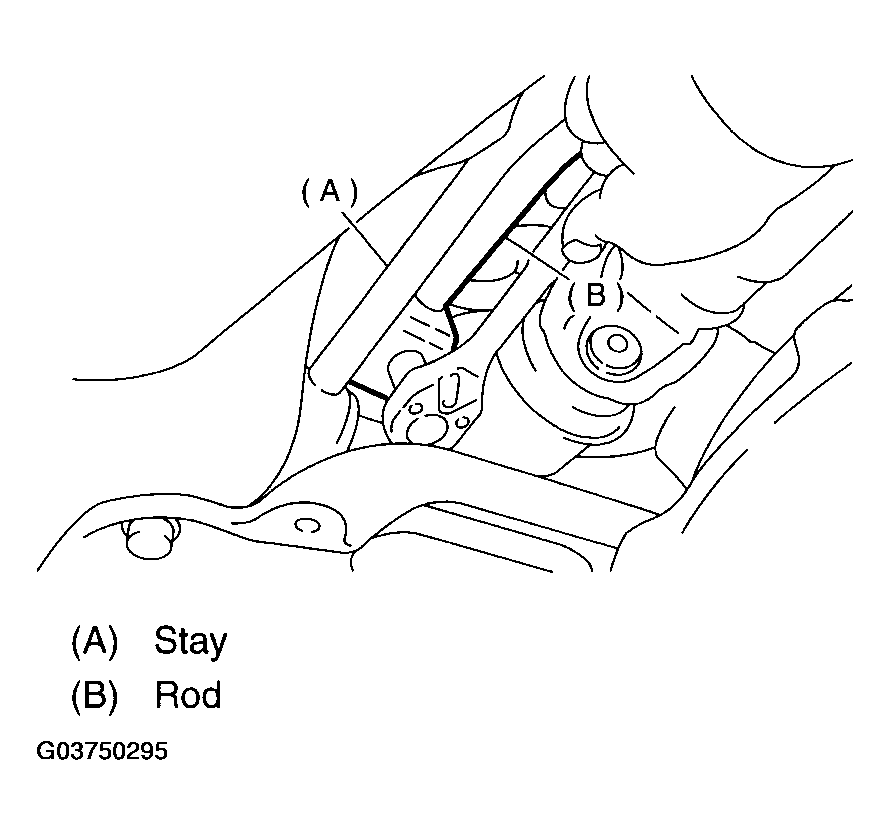

Fig 3: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.
Connect the stay to transmission bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

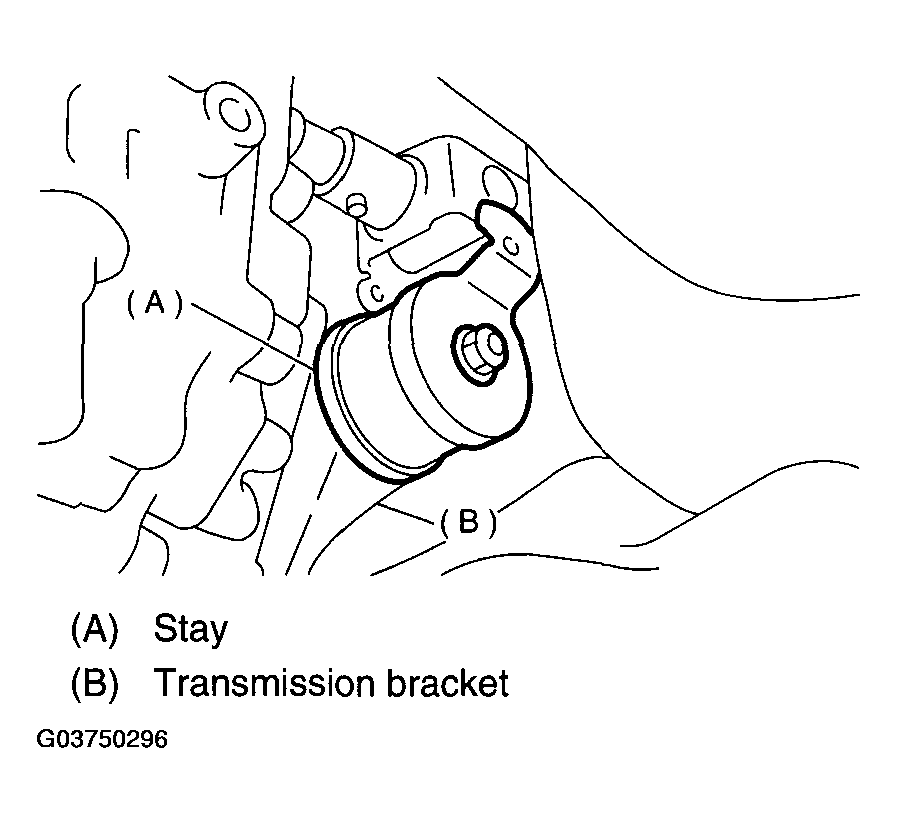

Fig 4: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler. NON-TURBO model
< Ref. to INSTALLATION , Rear Exhaust Pipe. >, < Ref. to INSTALLATION , Muffler. >

TURBO model

< Ref. to INSTALLATION , Rear Exhaust Pipe. >, < Ref. to INSTALLATION , Muffler. >
Lower the vehicle.
Install the plate ASSY to body.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

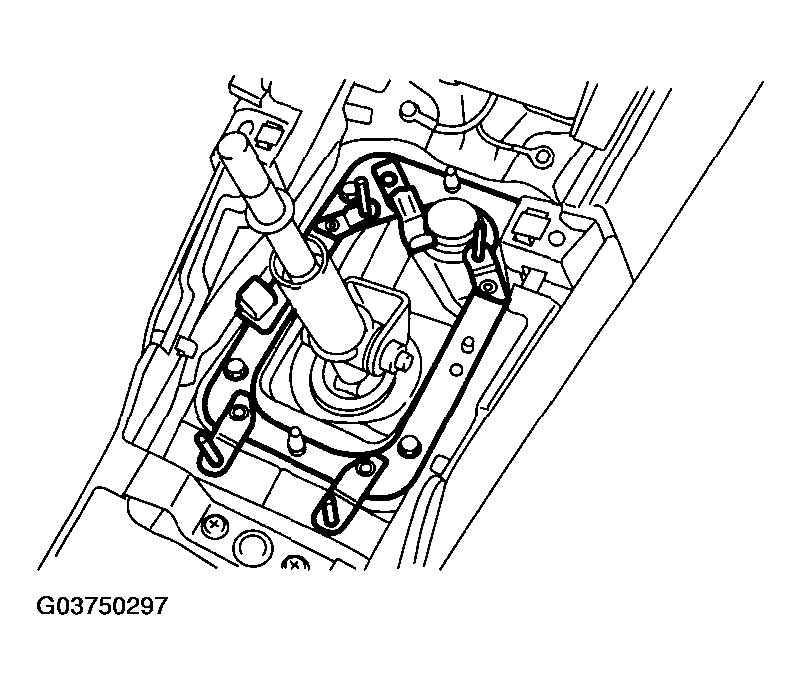

Fig 5: Installing Plate Assembly To Body
Courtesy of SUBARU OF AMERICA, INC.
Install the boot and insulator assembly to vehicle in proper direction.

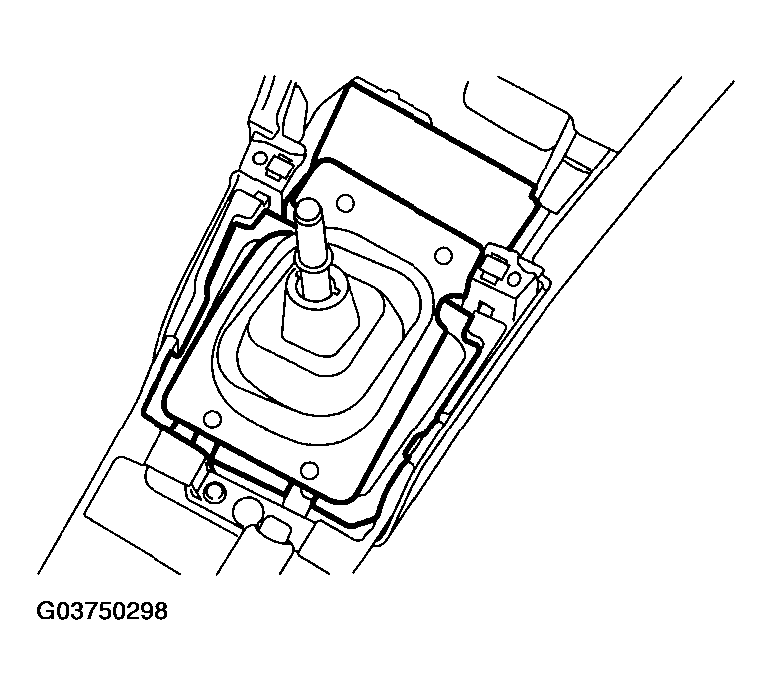

Fig 6: Installing Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp.
Install the console box. < Ref. to INSTALLATION , Console Box. >
