Home >> Subaru >> 2005 >> Baja Base, Standard >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> General Description >> Components With Torque Specifications >> A/T Select Lever (Sport Shift Model)

A/T Select Lever (Sport Shift Model)

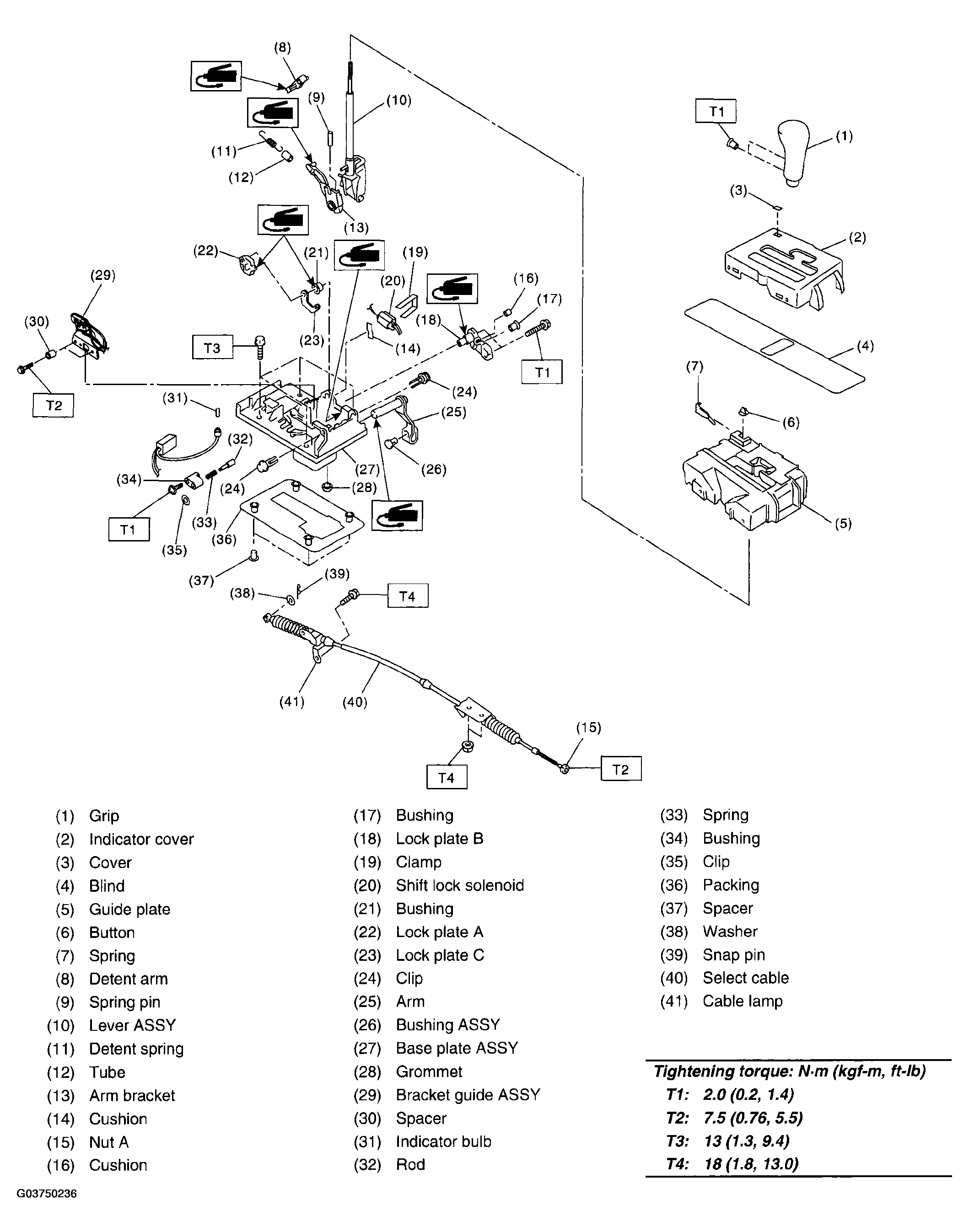

Fig 1: Replacement Components Of A/T Select Lever With Torque Specifications (Sport Shift Model)

G03750236

Courtesy of SUBARU OF AMERICA, INC.
