Home >> Subaru >> 2005 >> Baja Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission And Differential >> General Description >> Components With Torque Specifications >> Transmission Case >> Notes

Transmission Case: Notes

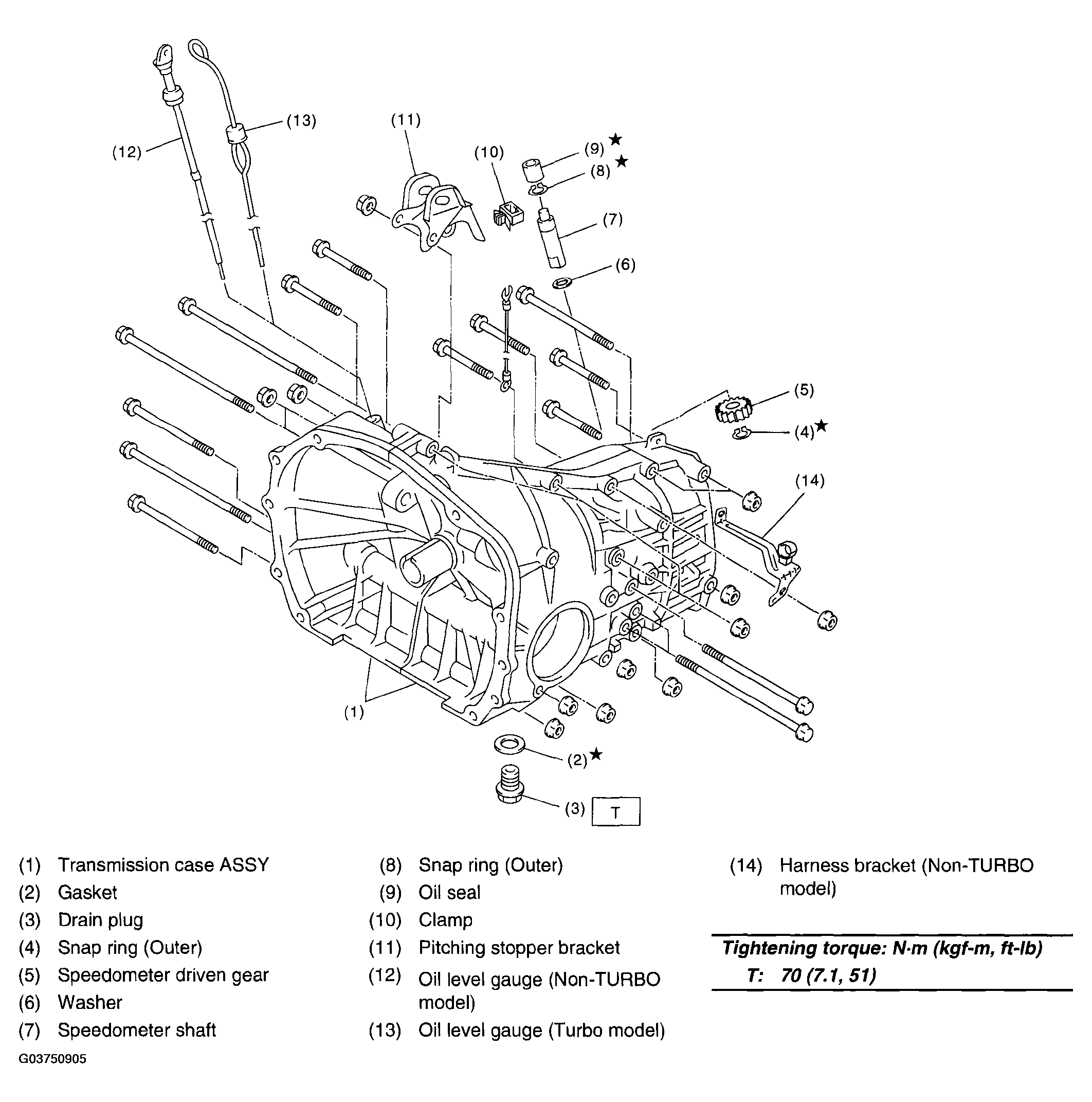

Fig 1: Exploded View Of Transmission Case With Torque Specifications

G03750905

Courtesy of SUBARU OF AMERICA, INC.
