General Description
>>
Components With Torque Specifications
>>
Main Shaft Assembly
Main Shaft Assembly

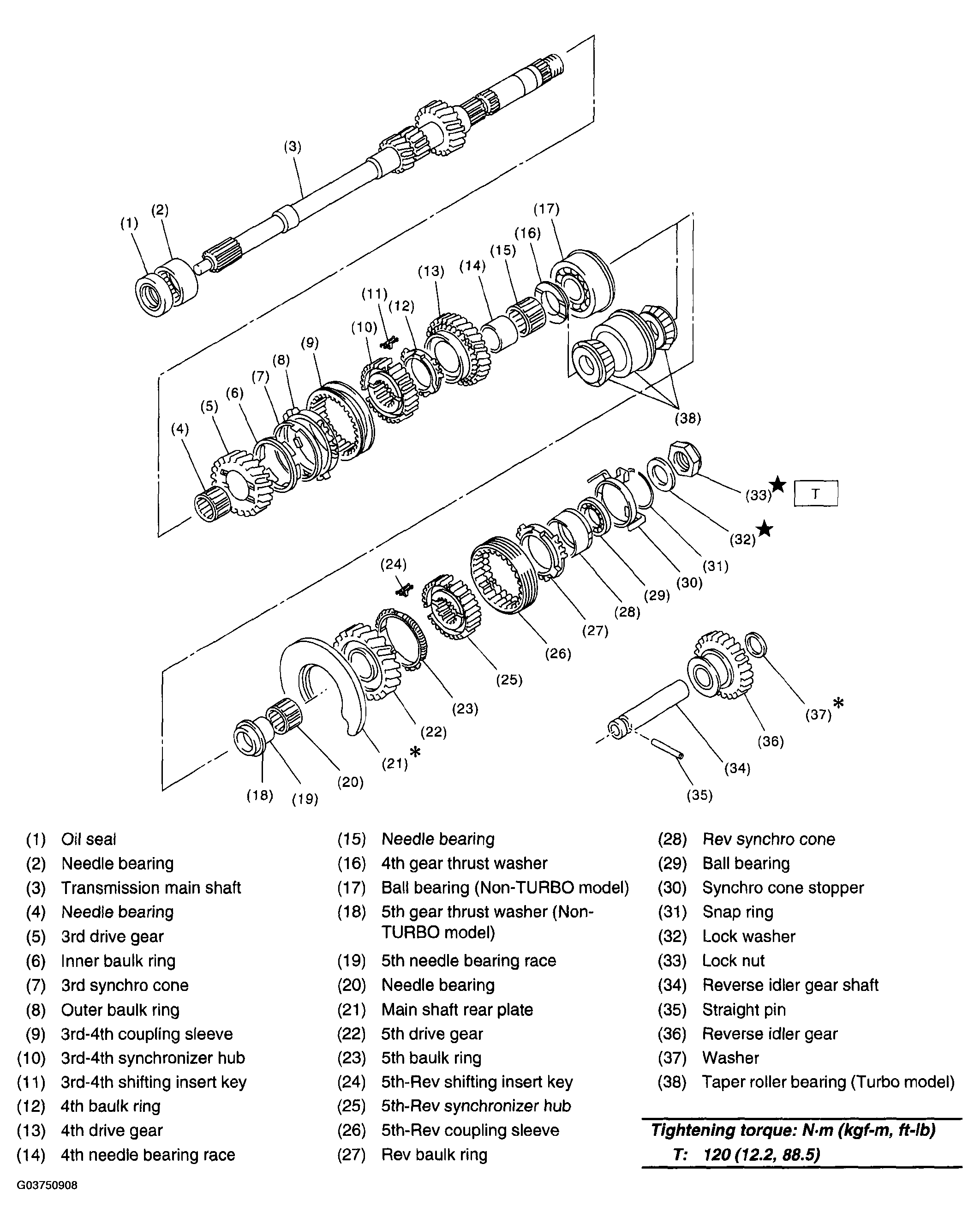

Fig 1: Exploded View Of Main Shaft Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
