Front Differential

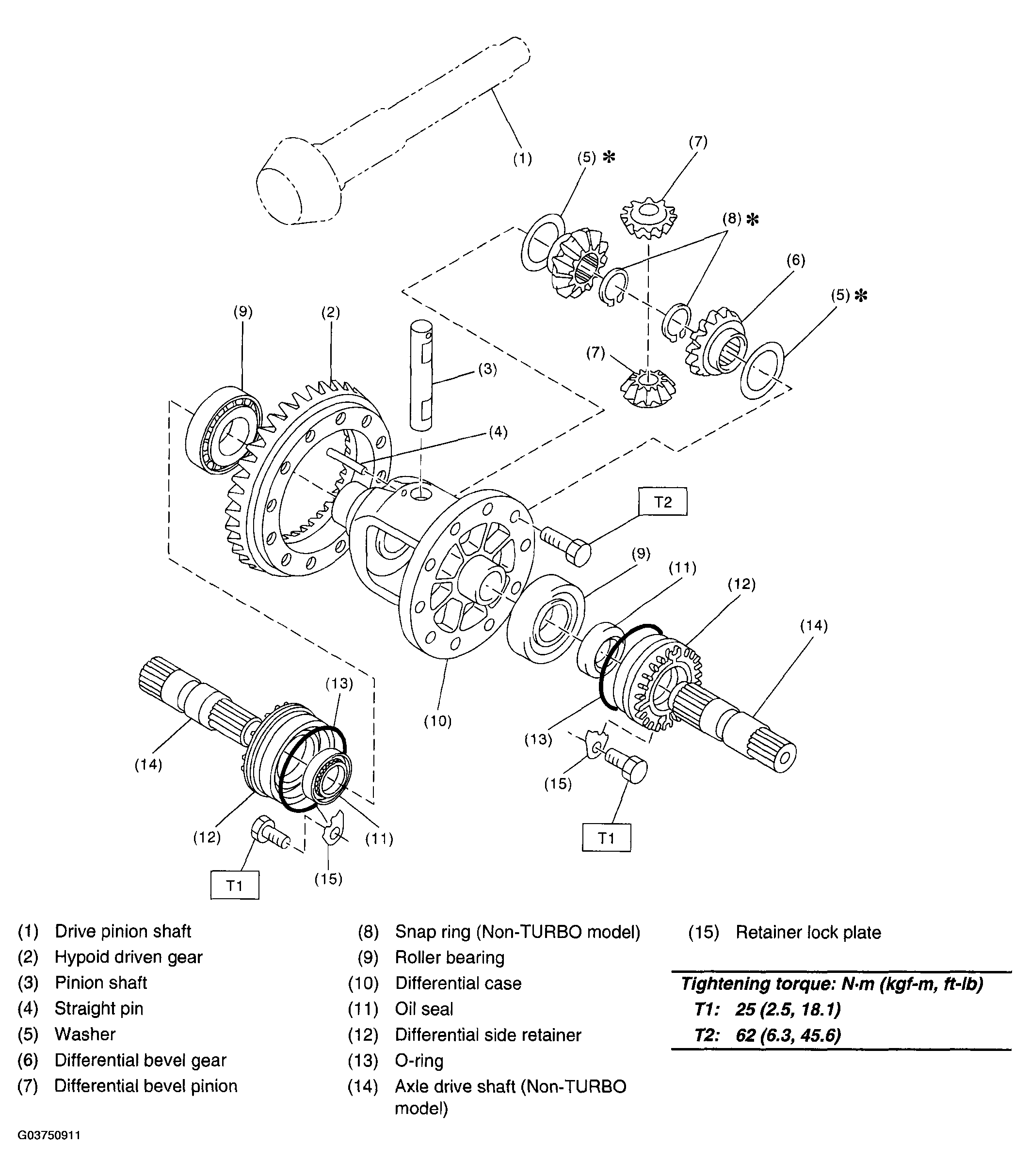

Fig 1: Exploded View Of Front Differential With Torque Specifications

G03750911

Courtesy of SUBARU OF AMERICA, INC.
