Front Differential Assembly: Removal

  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the transfer case with extension case assembly. < Ref. to , REMOVAL , Transfer Case and Extension Case Assembly. >
  3. Remove the transmission case. < Ref. to , REMOVAL , Transmission Case. >
  4. Remove the drive pinion shaft assembly. < Ref. to , REMOVAL , Drive Pinion Shaft Assembly. >
  5. Remove the main shaft assembly.

    < Ref. to , REMOVAL , Main Shaft Assembly. >

  6. Remove the differential assembly.
    NOTE:
    • Be careful not to confuse the right and left roller bearing outer races.
    • Be careful not to damage the retainer oil seal.

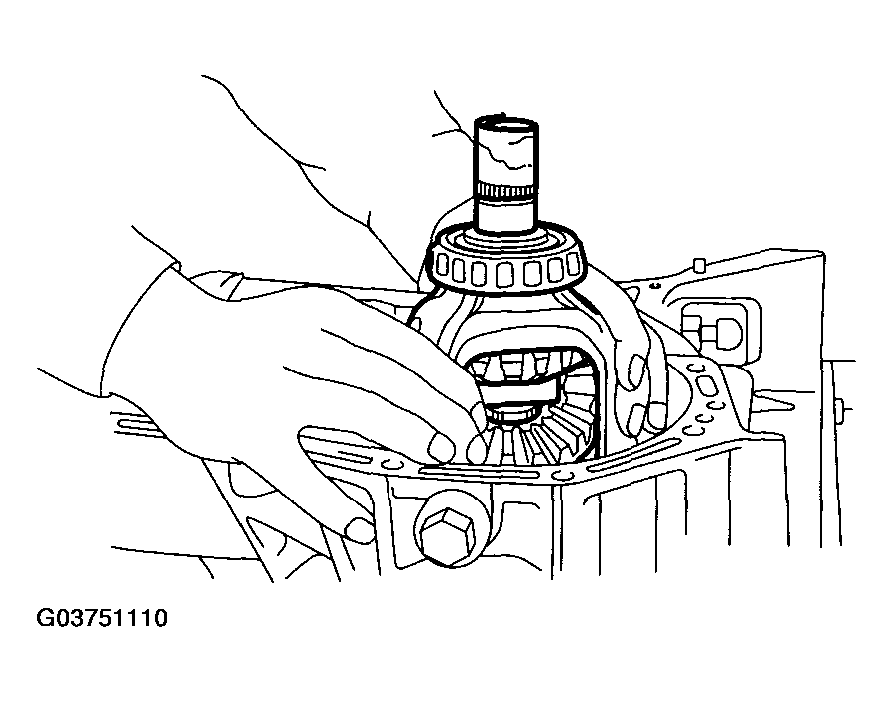

      Fig 1: Removing Differential Assembly
      G03751110Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

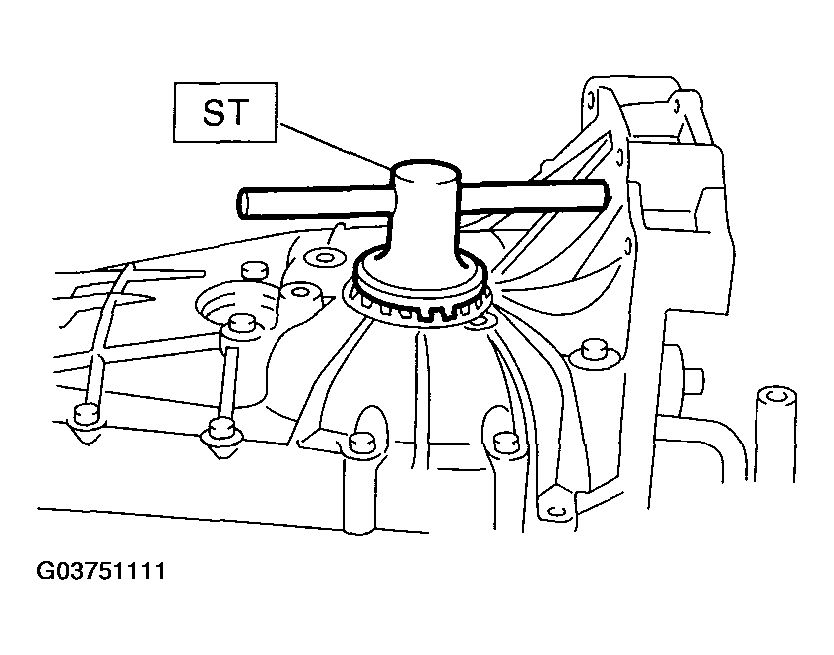

    Fig 2: Removing Differential Side Retainers Using Wrench Assy ST499787000
    G03751111Courtesy of SUBARU OF AMERICA, INC.
