Side Retainer

  1. Install a new oil seal. (Non-TURBO model)

    ST 49979700 INSTALLER

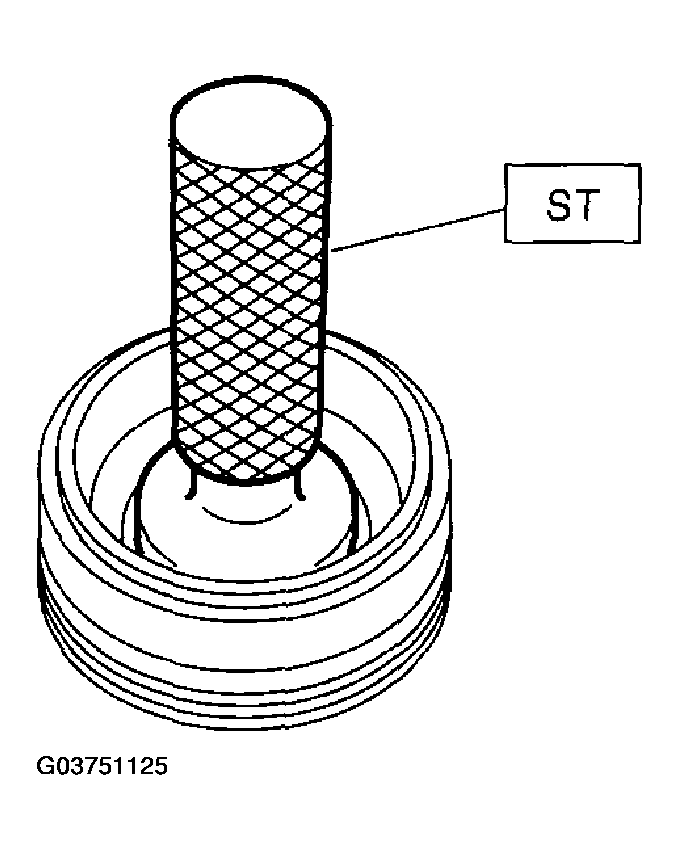

    Fig 1: Installing Oil Seal Using Installer ST49979700
    G03751125Courtesy of SUBARU OF AMERICA, INC.
  2. Install a new oil seal. (TURBO model)

    ST 18675AA000 DIFFERENTIAL OIL SEAL INSTALLER

    Fig 2: Installing Oil Seal (Turbo Model) Using Differential Oil Seal Installer ST18675AA000
    G03751126Courtesy of SUBARU OF AMERICA, INC.
  3. Install a new O-ring.
    NOTE: Do not stretch or damage the O-ring.
    Fig 3: Installing A New O-Ring
    G03751127Courtesy of SUBARU OF AMERICA, INC.
