Differential Case Assembly

  1. Install the bevel gear and bevel pinion together with washers, and insert pinion shaft.
    NOTE: Face the chamfered side of washer toward gear.
    Fig 1: Installing Bevel Gear And Bevel Pinion
    G03751119Courtesy of SUBARU OF AMERICA, INC.
  2. Measure the backlash between bevel gear and pinion. If it is not within specifications, install a suitable washer to adjust it. < Ref. to , ADJUSTMENT , Front Differential Assembly. >
    NOTE: Be sure the pinion gear tooth contacts adjacent gear teeth during measurement.

    ST1 498247001 MAGNET BASE

    ST2 498247100 DIAL GAUGE

    Standard backlash:

    0.13 - 0.18 mm (0.0051 - 0.0071 in)

    Fig 2: Measuring Backlash Between Bevel Gear And Pinion Using Magnet Base ST1-498247001 And Dial Gauge ST2-498247100
    G03751120Courtesy of SUBARU OF AMERICA, INC.
  3. Align the pinion shaft and differential case at their holes, and drive the straight pin into holes from the hypoid driven gear side, using ST.
    NOTE: Lock the straight pin after installing.

    ST 899904100 REMOVER

    Fig 3: Installing Straight Pin Using Remover ST899904100
    G03751121Courtesy of SUBARU OF AMERICA, INC.
  4. Install the roller bearing to differential case.
    NOTE:
    • Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
    • Be careful because the roller bearing outer races are used as a set.

    ST1 499277100 BUSH 1-2 INSTALLER

    ST2 398497701 ADAPTER

    Fig 4: Installing Roller Bearing To Differential Case
    G03751122Courtesy of SUBARU OF AMERICA, INC.
  5. Install the hypoid driven gear to differential case using twelve bolts.

    Tightening torque:

    T: 62 N.m (6.3 kgf-m, 45.6 ft-lb)

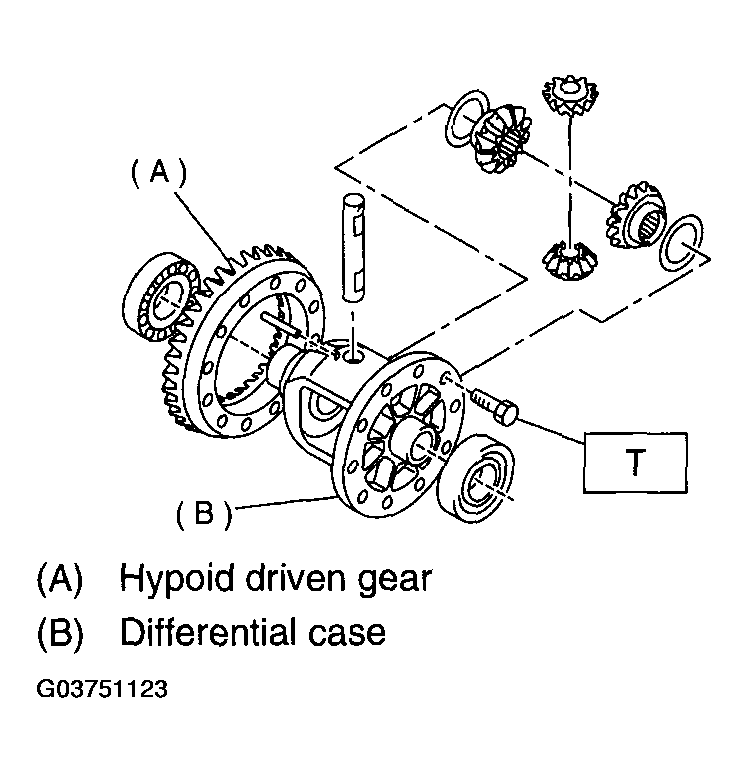

    Fig 5: Installing Hypoid Driven Gear To Differential Case
    G03751123Courtesy of SUBARU OF AMERICA, INC.
  6. Set the drive axle shaft into differential case and hold it using outer spring. Measure the shaft to case clearance to check if it is within specifications using thickness gauge. (Non-TURBO model)
    NOTE: Replace the snap ring with suitable one, if the measurement is not within specifications.
    SNAP RING (OUTER) SPECIFICATION

    Snap ring (Outer)
    Part No. Thickness mm (in)
    805028011 1.05 (0.0413)
    805028012 1.20 (0.0472)

    Clearance

    0 - 0.2 mm (0 - 0.008 in)

    Fig 6: Measuring Shaft To Case Clearance
    G03751124Courtesy of SUBARU OF AMERICA, INC.
