Service Limit

Make a measurement as follows. If it exceeds the specified service limit, adjust or replace.

NOTE: When making a measurement, vise gearbox by using ST. Never vise gearbox by inserting aluminum plates, etc. between vise and gearbox.

ST 926200000 STAND

Sliding resistance of rack shaft:

Service limit

304 N (31 kgf, 68 lb) or less

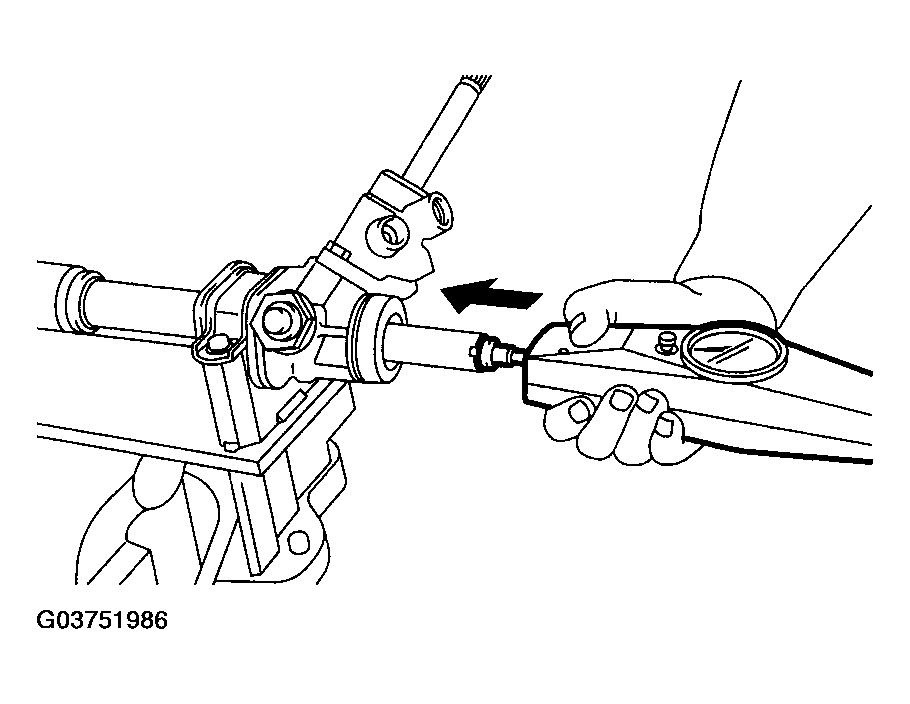

Fig 1: Measuring Service Limit Using Stand ST926200000 (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Measuring Service Limit Using Stand ST926200000 (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
