Oil Pump

NOTE: The illustration for Non-TURBO model is shown in Fig 1 . (Not shown for TURBO model because it cannot be disassembled.)

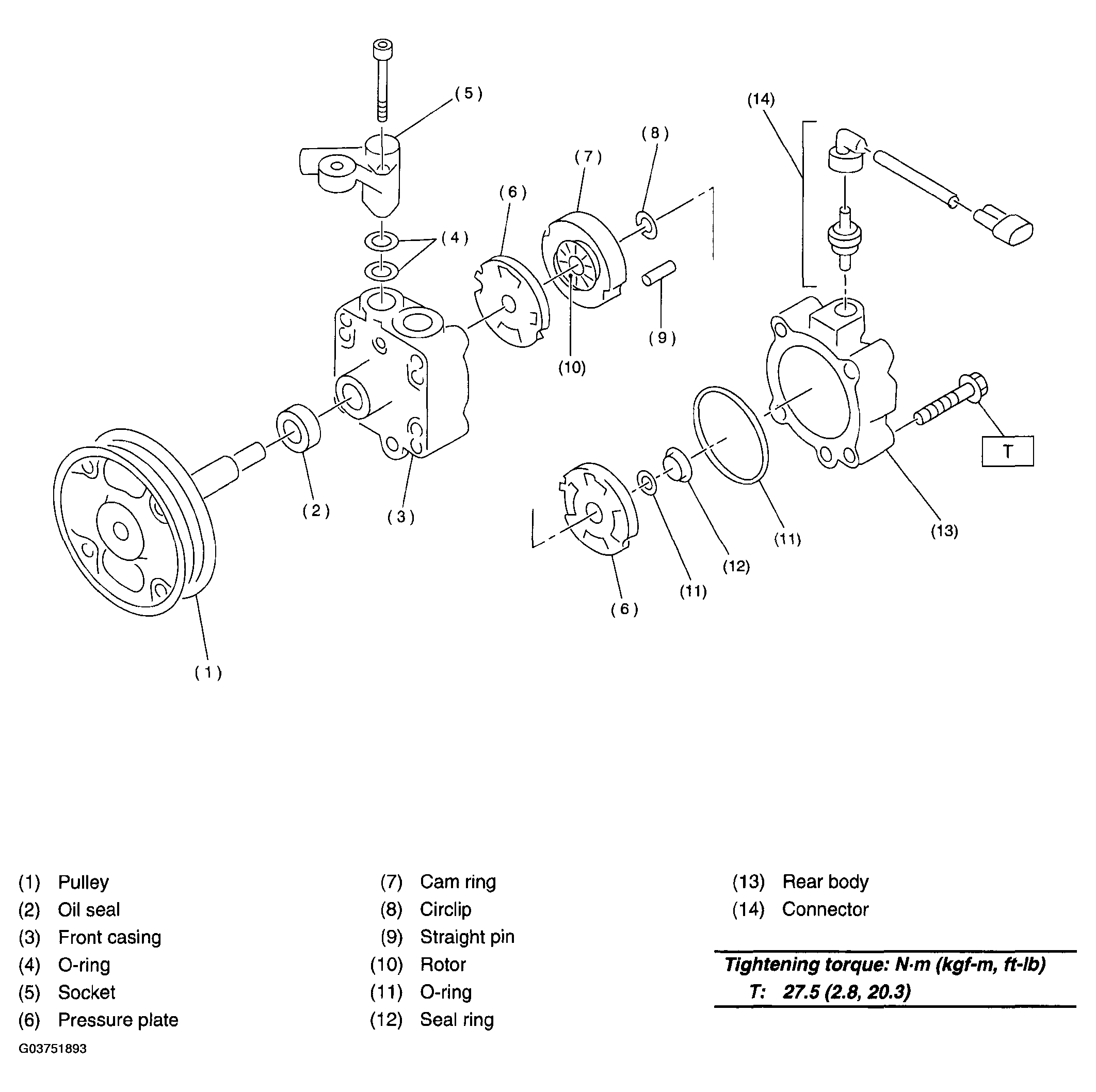

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G03751893Courtesy of SUBARU OF AMERICA, INC.
