Recommended Materials: Lubricants

To choose the correct SAE viscosity use the table shown in RECOMMENDED LUBRICANTS LABELS . Use either the lubricants shown or equivalent lubricants.

RECOMMENDED LUBRICANTS LABELS

Lubricant	Recommended	Alternative
Lubricant	API or ILSAC Spec.	API Spec.
Engine oil	SL Grade "Energy conserving" Fig 1 GF-3 (for vehicles with the stamp below) Fig 2	SJ
Manual transmission oil	GL-5	-
AT front differential gear oil	GL-5	-
Rear differential gear oil	GL-5	-

Fig 1: RM-00001

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: RM-00002

Courtesy of SUBARU OF AMERICA, INC.

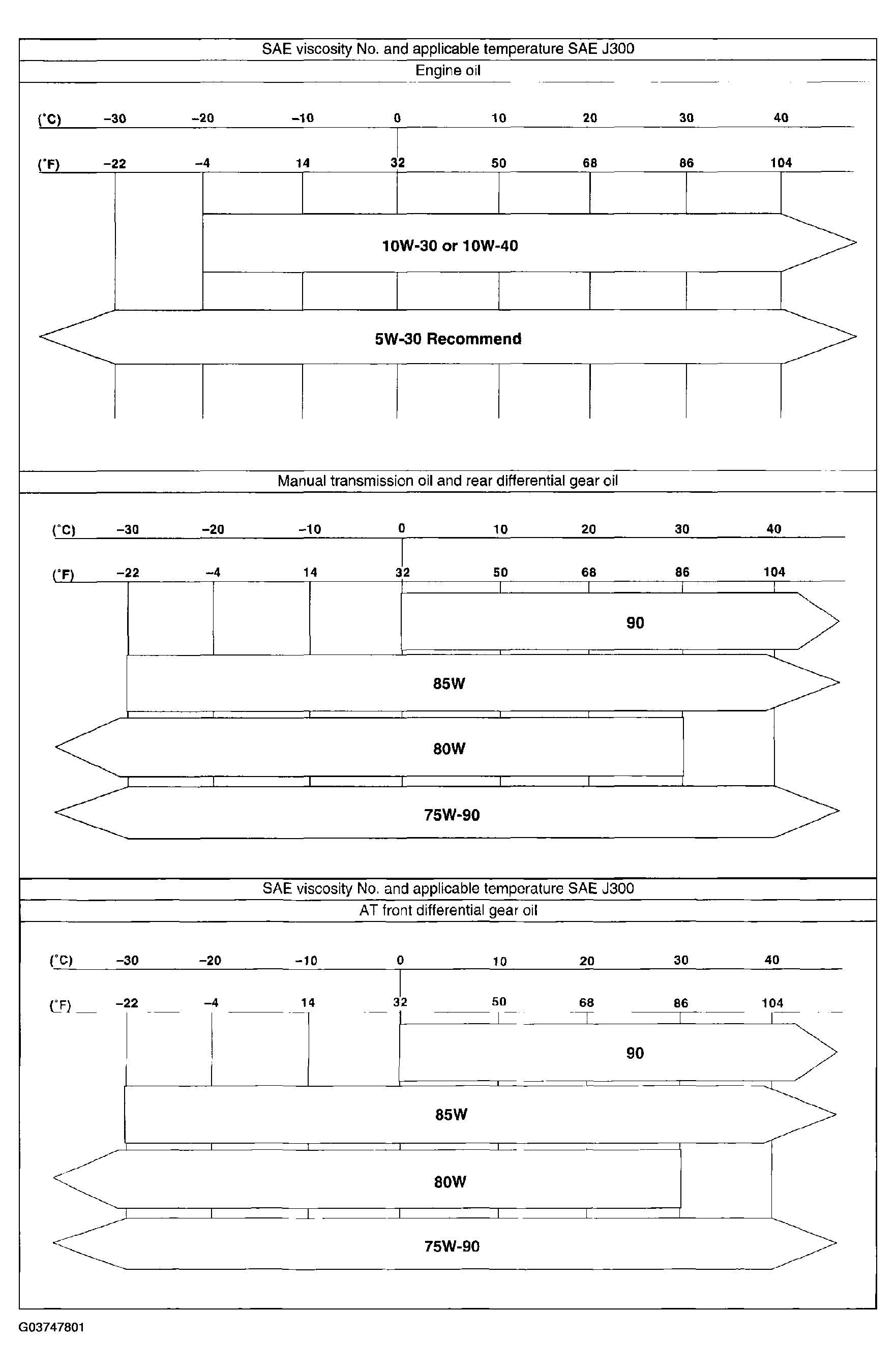

Fig 3: Lubricants SAE Viscosity Chart

Courtesy of SUBARU OF AMERICA, INC.
